You can use grid scans to automatically centre your sample. This method is very successful, even with LCP or ice covered crystals.
Manually triggered automatic X-Ray centring
For an already mounted sample, you can manually trigger X-Ray centring as follows:

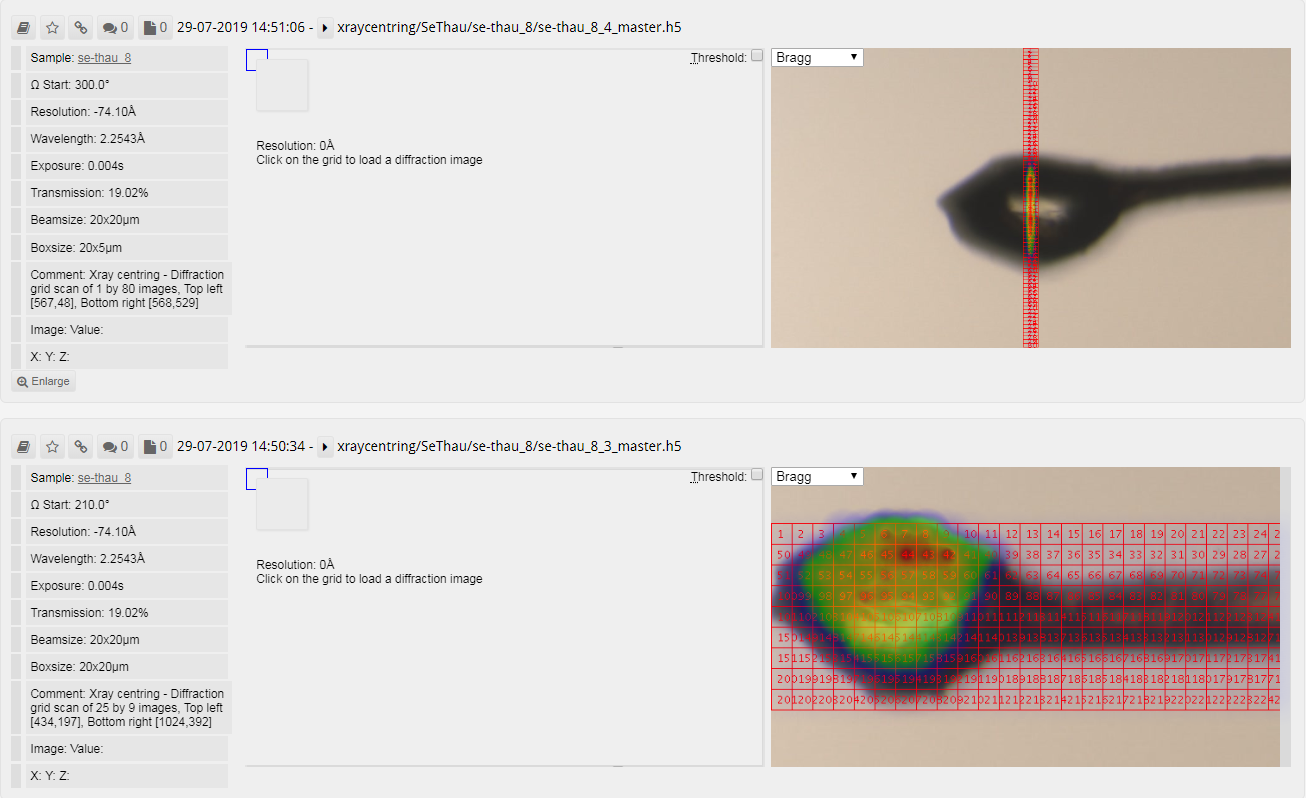

The X-Ray centring process will take approximately 50s and you can view the grid scans via Synchweb. Bear in mind that the scoring results displayed in Synchweb do not reflect those from the automated X-Ray centring process, which is configured to avoid salt and ice related diffraction.
Automatic X-Ray centring as part of a data collection or screening operation

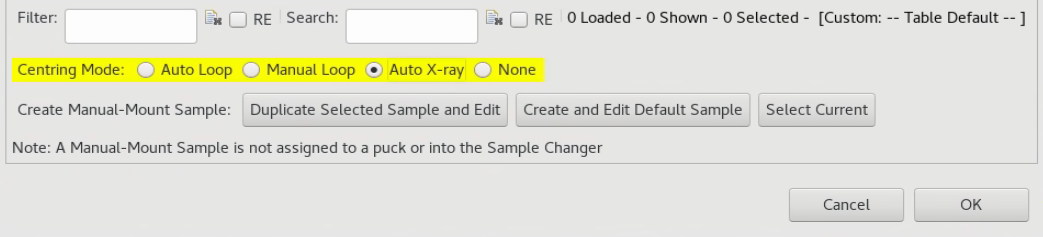

It is possible to request X-Ray centring when driving data collections for each new robot loaded sample. You can do this as follows:
If you now load your sample, the routine puts the loop at the crosshair (Keyence Centring) and performs Loop centring to make sure the sample is in focus at all omega angles.
It then automatically carries out a two-dimensional grid scan covering the whole height of any object in view and extending from the furthermost tip to the edge of the visible image. This covers the entire loop and any protruding crystals and extends back along the neck towards the pin (we quite often find crystals along the neck of the loop). These grid scans use a smaller area of the detector for speed of processing and the beam size and exposure settings to be used are set by the beamline staff.
Each image from this grid scan is scored by the number of Bragg candidates using data to 5Å and the centre of mass is calculated from the results. The motors drive this position to the crosshair.
Afterwards, a finer, linear grid scan is performed perpendicularly to the two-dimensional one at the position where the crystal diffracts best. This is scored in the same fashion as before and again the best point is driven to the crosshair. The crystal is now centred.
At this point. data collection is automatically started. The whole process from loading the sample to the end of a 360 degree data collection with standard parameters takes approximately 2.0 min.
