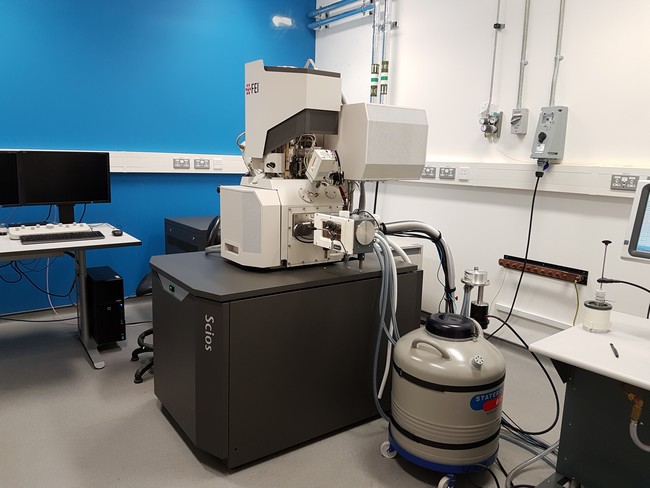

Scios and Aquilos cryoFIB/SEMs

Focused ion beam/scanning electron microscopes (FIB/SEMs) allow for nanoscale milling of frozen hydrated biological specimens, and mainly produce electron transparent lamellae but are also capable of directly imaging cellular features.

Lamella are analysed using cryo-electron tomography (Cryo-ET) which can reveal high-resolution biological structures in their close-to-native environment and direct imaging can provide cellular context.

These powerful techniques have allowed researchers to move toward a molecular scale understanding of living systems.

The Scios and Aquilos cryoFIB/SEMs form part of the multimodal imaging and sample preparation workflow available at Diamond, including cryo super-resolution fluorescent microscopy and high-resolution TEM imaging via one of eBIC’s four Titan Krios.

All of the systems in eBIC’s multimodal imaging pipeline are capable of accepting AutoGrid rings, for seamless transfer between different imaging modalities.

FIB/SEM technological advances have increased throughput and milling precision, yielding higher quality results in less time, making the Scios and Aquilos ideal systems for examination of frozen hydrated biological material at cryogenic temperatures.

Conductive and protective coatings

For both systems, sputter coating with metallic platinum is available and can improve imaging stability prior to milling. Sputter coating on lamellae can also improve phase plate imaging in the transmission electron microscope.

The gas injection system, integrated within the main chamber of both systems, coats frozen specimens with an organoplatinum compound which protects sensitive biological material from the ion beam.

FEG – Field emission gun, ETD – Everhart-Thornley detector, SE – Secondary electrons,
BSE – Back-scattered electrons, SI – Secondary ions
