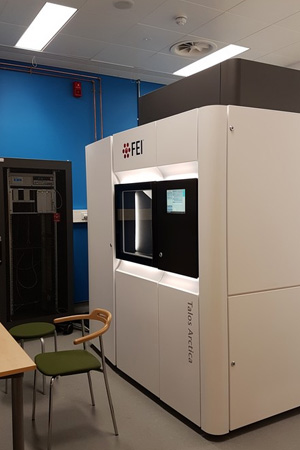

Talos Arctica

200 kV FEG electron microscope

Image 200 kV FEG electron microscope

Designed for rapid, stable, high-resolution data collection of frozen-hydrated samples.

The Talos Arctica is equipped with:

  • Autoloader system that permits loading of up to 12 specimens.
  • Automated data collection at liquid nitrogen temperature.
  • Constant-PowerTM objective lens for optimal contrast/resolution balance.
  • Volta phase plate, which significantly enhances low-resolution contrast.



Electron cryo-microscopy (cryo-EM) single particle and electron cryo-tomography (cryo-ET) data can be collected automatically with the Thermo Fisher Scientific Falcon lll detector using EPU and TOMO software packages.

Electron diffraction data can be collected with the Thermo Fisher Scientific CETA-D detector in a continuous mode using EPU-D software package.

Talos Arctica Specifications

Accelerating Voltages

80, 120, 200 kV

Electron Source

Schottky X-FEG

Tilt Range

± 70°

C2 Apertures

150, 100, 50 and 20 µm

Objective Apertures

100, 70 µm and phase plate assembly

Operating Temperature

~80 K

Information Limit at 200kV at 0° / ±70° tilt

0.23 nm and 0.34 nm

Cs

2.7 mm

Tomogram acquisition time

45 mins

Number of cartridges

12

Sample exchange time

~3 mins

Imaging filter and detector

Gatan K3

24 megapixels (5760 x 4092)

1500 fps max frame rate

Retractable bottom mount detector

CETA-D

Acquisition software

EPU 2.7, TOMO 5.0, EPU-D 1.4
