Operational Modes

labSAXS operates for PRP, Rapid Access and Mail In data collection. Please discuss the most appropriate route for you with one of the team

labSAXS has both Transmission and Grazing Incidence modes.

Transmission (available): Using either Ga MetalJet or Mo Micro-Source, with in air or vacuum set up, through solids/gels/powder/capillary holders (more information about holders).

Grazing Incidence (available): Uses either source, with either environment set up (dependent on sample, detector distance, and scattering), and with the standard or advanced GISAXS stage.

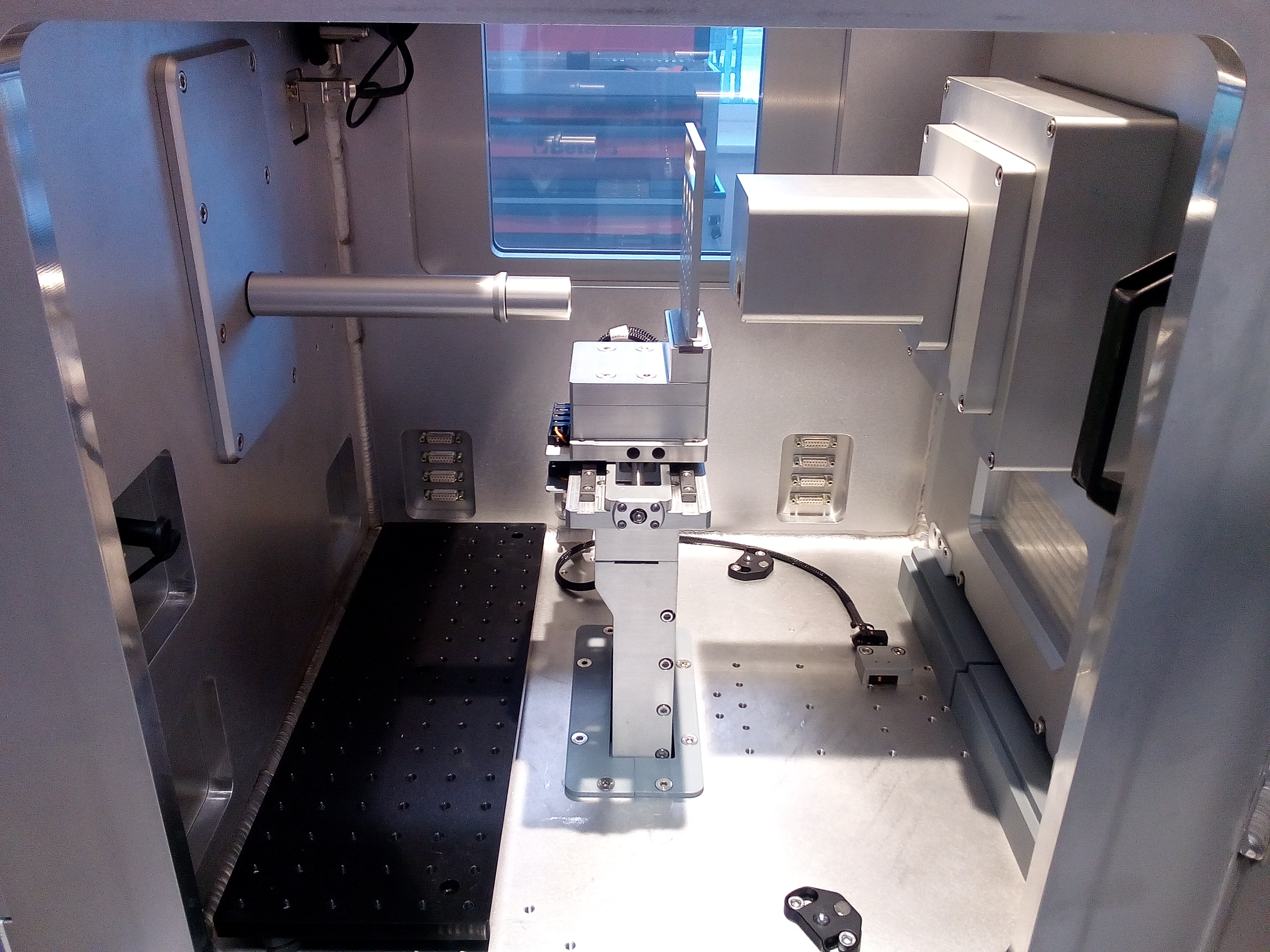

DL-SAXS In Air Setup, with Nosecone and Vacuum Extender.
DL-SAXS In Air Setup, with Nosecone and Vacuum Extender.

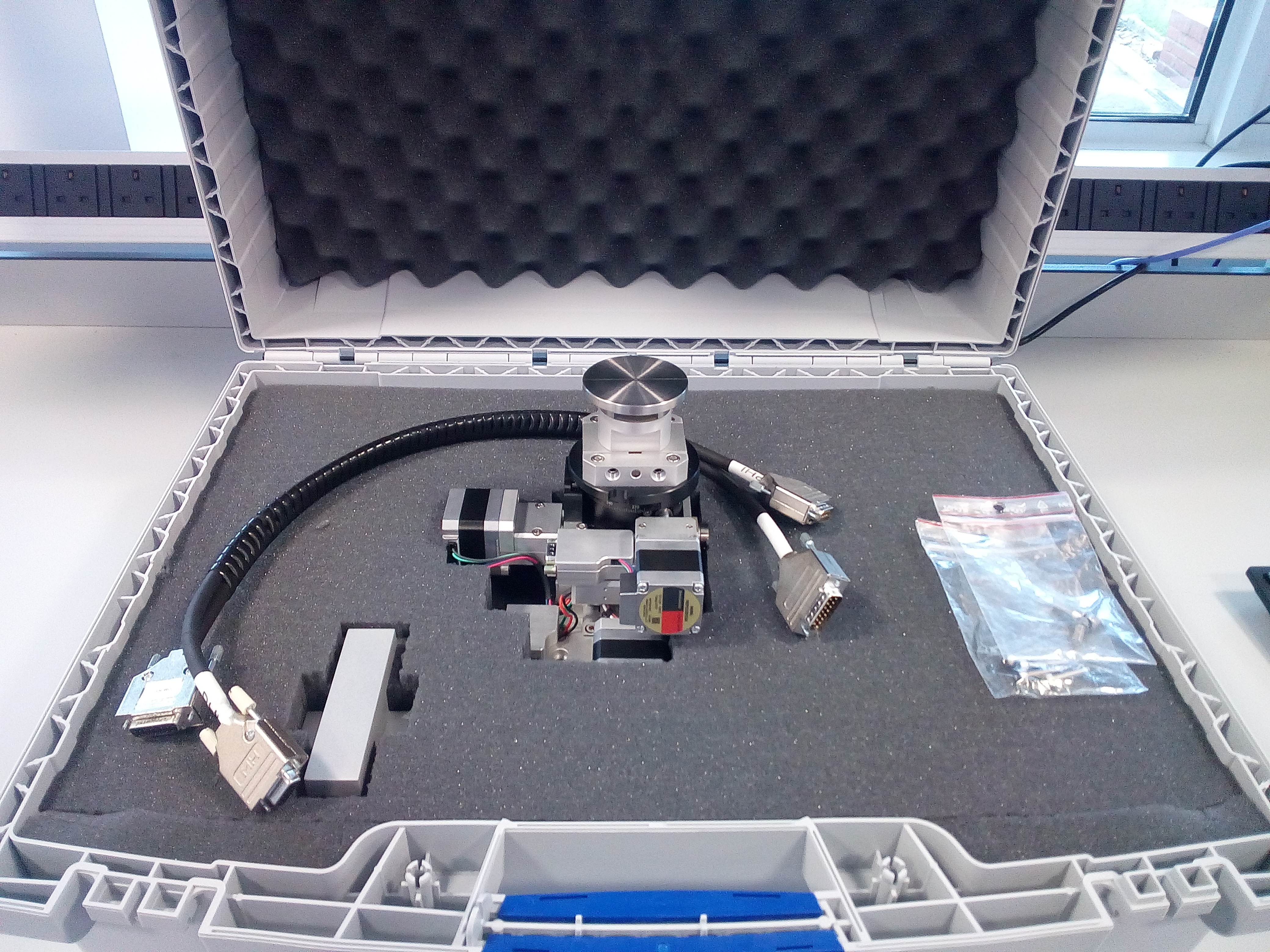

DL-SAXS GiSAXS Stages (bottom left - Standard, middle and installed - Advanced)
DL-SAXS GiSAXS Stages (bottom left - Standard, middle and installed - Advanced)
