Beamline Characteristics

The beamline I12 - JEEP is capable of delivering white or monochromatic beam of a large size and a high flux to be used for diffraction and imaging experiments.

BEAMLINE LAYOUT

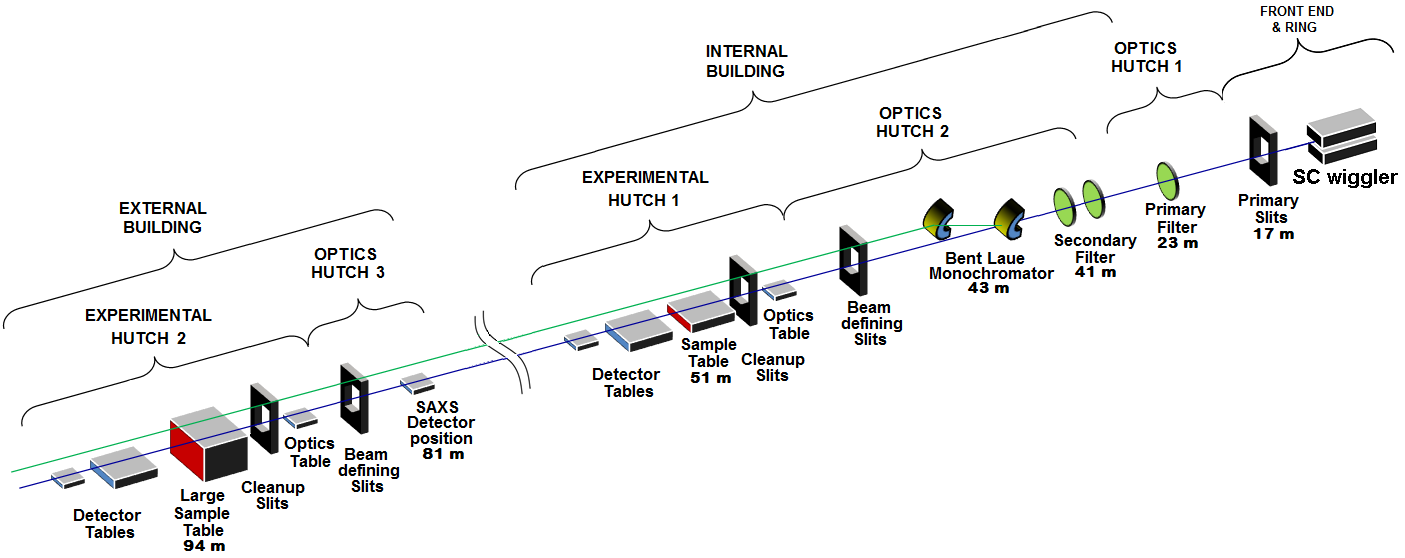

Optical and functional schematic of the I12 - JEEP beamline.

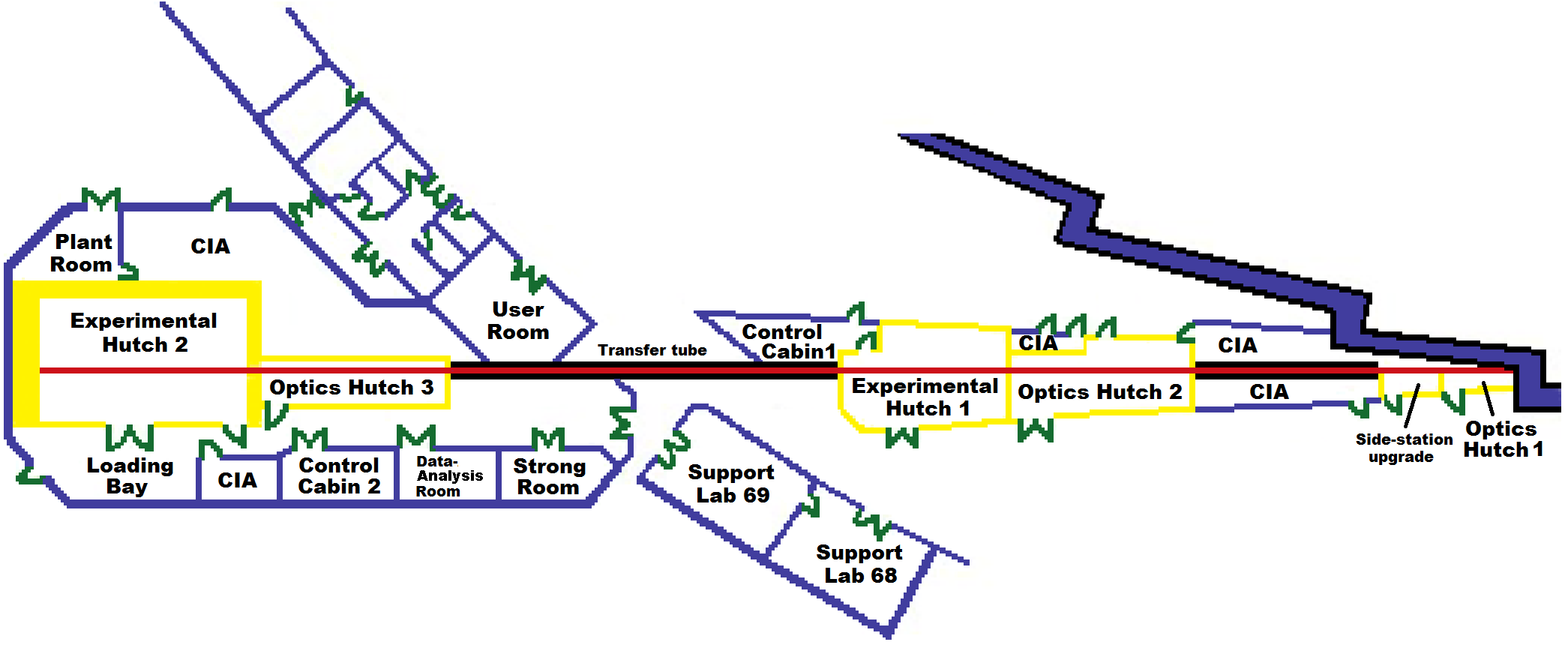

 Building schematic of the I12 - JEEP beamline

The I12 beamline is divided into two parts, with an Internal Building and an External Building.

Internal Building includes:

· Optics Hutch 1 (OH1)

· Side station upgrade

· Optics Hutch 2 (OH2)

· Experimental Hutch 1 (EH1)

· Control Cabin 1 (CC1) for control of the internal beamline

· User room (UR) to provide additional space for users and beamline staff using CC1

External Building includes:

· Optics Hutch 3 (OH3)

· Experimental Hutch 2 (EH2)

· Control Cabin 2 (CC2) for control of the external beamline

· Data-Analysis Room (DAR)

· Strong Room for storage of valuable samples

Peripheral labs at the perimeter of the experimental hall:

· Support Lab 68

· Support Lab 69

BEAMLINE SUMMARY

Source

·  Super-conducting multipole wiggler

·  Constant peak field: 4.2 T

·  Number of pole pairs at full field: 22

·  Period length: 48 mm

·  K value: 18.8

·  Critical energy: 25 keV

·  1 mrad × 0.3 mrad divergence permitted into beamline

Optics

·  Bent crystal Laue monochromator using silicon (111) crystal; variable bending radius for both crystals independently from flat to 90 m with concave side oriented towards the source; asymmetry angle 44^o; monochromatic beam at fixed vertical offset of 50 mm above white beam; liquid N₂ cooling on first crystal; second crystal cooled by Cu-braid connected to liquid N₂ line

·  Permanent filters reduce the heat load on optics and attenuate x-rays with energies below 50 keV: 2 × 1.1 mm CVD diamond filter, 1× 4 mm CVD SiC filter. The first diamond filter acts as window to separate beamline vacuum from the storage ring

·  Optional Cu filters with selectable thickness from 1 to 12 mm

·  Beam defining slits for EH1 at 47 m

·  Beam defining slits for EH2 at 88 m

Calculated white beam and monochromatic beam intensities at the sample position can be downloaded here.

Experimental Hutch 1 (EH1)

EH1 is located inside the experimental hall. It contains:

·  Optics table (for instruments to be placed before the sample)

·  Sample table (for samples and sample environments; maximum weight is 50 kg for tomography and 200 kg for radiograpy and diffraction)

·  Detectors. Detectors are mounted on automated tables: on the Large Detector Table or on the Small Detector Table. Detectors may be remotely positioned and exchanged during an experiment, allowing different techniques to be applied to the same sample

    For Diffraction

    - Large area 2D detector (Thales Pixium RF4343). The sample-to-detector distance can be varied from 500 mm to 2400 mm or set to 4500 mm; large transverse movement of detector through Experimental Hutch is possible

    For Imaging:

    - X-ray camera with selectable optics to remotely change the field of view and the resolution. Four modules offer fields of view between 3 mm and 50 mm width. Two interchangeable back-end detectors are available for either high resolution or high speed measurements: PCO.edge for high resolution imaging and Vision Research MIRO 310M for high speed imaging

· Additional services: single phase and three phase power, cooling water, compressed air, pressurized gases, manual crane, exhaust system

Experimental techniques in EH1

All techniques are performed at high x-ray energies according to the energy range of the beamline

· Static and time-resolved radiography and tomography

· Static and time-resolved powder diffraction using monochromatic X-rays

· Single crystal diffraction using monochromatic X-rays

· Diffuse scattering on crystalline or amorphous materials (single crystal diffuse scattering, pair-distribution function analysis “PDF”)

· Small angle scattering (for particles of size below 12 nm if detector installed in EH1, or for particles of size below 100 nm if detector installed in OH3)

Some experimental techniques can be combined during the same visit, on the same sample. For details please read here.

Experimental Hutch 2 (EH2)

EH2 is located in an external building. It contains:

·  Optics table (for instruments to be placed before the sample)

·  Sample table (for samples and sample environments with weight up to 2000 kg)

·  Detectors. Detectors are mounted on automated tables: on Large Detector Table or on Small Detector Table. Detectors may be remotely positioned and exchanged during an experiment, allowing different techniques to be applied to the same sample

    For Diffraction:

    - Large area 2D detector (Thales Pixium RF4343). The sample-to-detector distance can be varied from 1000 mm to 2600 mm or set to 6300 mm; large transverse movement of detector through Experimental Hutch is possible

    - Energy dispersive X-ray detector Canberra with 23 high purity Ge crystals in a semi-circular arrangement

    For Imaging:

    - X-ray camera with selectable optics to remotely change the field of view and the resolution. Four modules offer fields of view between 3 mm and 50 mm width. Two interchangeable back-end detectors are available for either high resolution or high speed measurements: PCO.edge for high resolution imaging and Vision Research MIRO 310M for high speed imaging

   - Large Field of View camera for tomography of large samples; incorporates two high-resolution imaging detectors PCO.edge providing field of view approx. 104 × 46 mm

·  INSTRON servo-hydraulic 100 kN uniaxial mechanical test rig for in situ and ex situ experiments. Rig is also available for “offline” work such as sample preparation before beamtime

·  Additional services (single phase and three phase power, cooling water, compressed air, pressurized gases, manual crane, exhaust system, loading bay for vehicle access)

Experimental techniques in EH2

All techniques are performed at high x-ray energies according to the energy range of the beamline

· Static and time-resolved radiography and tomography

· Static and time-resolved powder diffraction using monochromatic X-rays

· Time-resolved energy dispersive powder diffraction

· Single crystal diffraction using monochromatic X-rays with restricted goniometry

· Diffuse scattering on crystalline or amorphous materials (single crystal diffuse scattering, pair-distribution function analysis “PDF”)

· Small angle scattering (for particles of size below 18 nm)

Some experimental techniques can be combined during the same visit, on the same sample. For details please read here.

Sample environments

·  Cryostream (100 - 473 K).

·  Custom designed ODISC heating furnace (25 - 800 ^oC) - for powder diffraction experiments and special imaging experiments; furnace does not include the flow cell, so the possible oxidation of sample during the heating in air must be taken into account.

·  Linkam heating furnace (25 - 1300 ^oC) - for powder diffraction experiments or radiography experiments (not suitable for tomography experiments); Linkam furnace allows high-temeprature measurements in Argon flow or in vacuum (up to 10^-3mbar).

·  Custom designed metal heating block (25 - 95 ^oC) - for powder diffraction experiments during chemical synthesis.

·  Custom designed Helios heating furnace (200 - 1300 ^oC) - for powder diffraction and special imaging experiments in air in transmission geometry.

·  INSTRON 100 kN uniaxial servo-hydraulic mechanical test rig (available only in Experimental Hutch 2).

·  Cooling water supply.

·  Compressed air (max. pressure 5 bar).

·  Pressurized He, Ar, CO₂, N₂ of technical quality (max. pressure 10 bar).

Support laboratory

·  Zeiss Axiotech Vario reflected light microscope (with possibility to save images)

·  Zeiss Stemi-2000 stereo light microscope (with possibility to save images)

·  Fume cupboard

·  Small balances (mg-g)

·  Small fridge (2-5 ^oC)

·  Laboratory oven ED115 (30-300 ^oC), download manual

·  Ultrasonic bath

·  De-ionized water supply

·  Compressed air and pressurized gases of technical quality

·  VAMAS sample mounting kit

·  Manual goniometers

·  3-phase power

·  1-phase high current (32 A) power

·  Strong room for secure sample and sample environment storage
