Focused ion beam/scanning electron microscopes (FIB/SEMs) allow for nanoscale milling of vitrified biological specimens, and mainly produce electron transparent lamellae but are also capable of directly imaging cellular features.
Lamellae are analysed using cryo-electron tomography (Cryo-ET) which can reveal high-resolution biological structures in their close-to-native environment and direct imaging can provide cellular context.
These powerful techniques have allowed researchers to move toward a molecular-scale understanding of living systems.

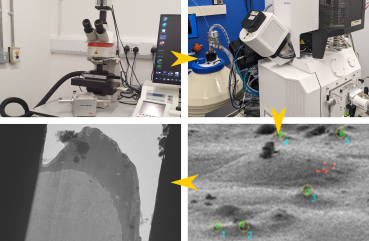

The Scios and Aquilos cryoFIB/SEMs form part of the multimodal imaging and sample preparation workflow available at Diamond, including cryo-fluorescent microscopy and high-resolution TEM imaging via one of eBIC’s four Titan Krios.
All of the systems in eBIC’s multimodal imaging pipeline are capable of accepting AutoGrid rings, for seamless transfer between different imaging modalities.
FIB/SEM technological advances have increased throughput and milling precision, yielding higher quality results in less time, making these systems ideal for examination of vitrified biological material at cryogenic temperatures.

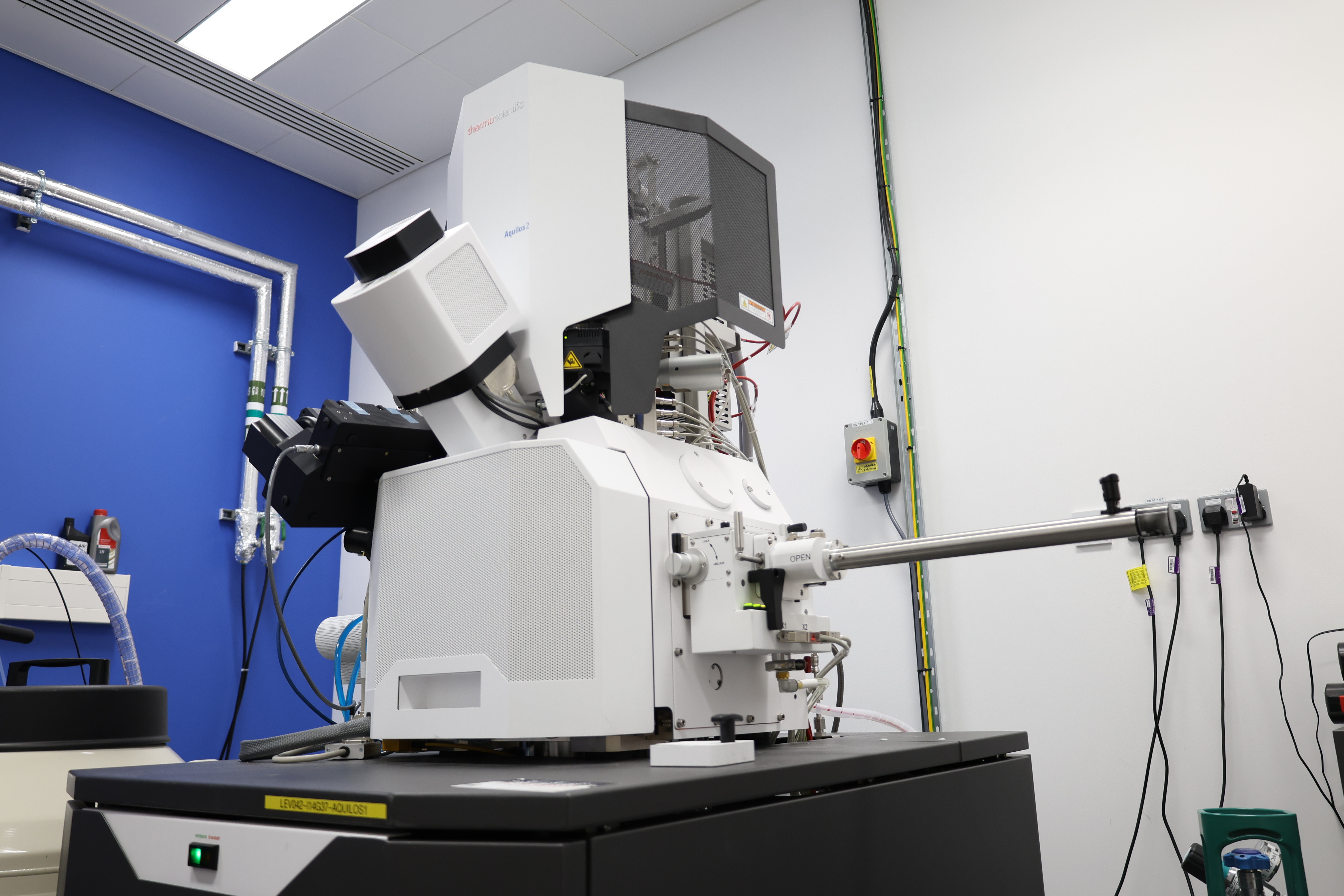

Chamber-mounted enhancements
For both systems, sputter coating with metallic platinum is available and can improve imaging stability before milling. Sputter coating on lamellae can also improve phase plate imaging in the transmission electron microscope.
The gas injection system, integrated within the main chamber of both systems, coats frozen specimens with an organoplatinum compound to protect sensitive biological material from the ion beam and homogenise milling rates.
The Aquilos has two additional chamber-mounted options: a micromanipulator (EasyLift) and a fluorescent microscope (Meteor).
The EasyLift is an in-chamber, cryo-micromanipulator which allows lamellae from vitrified biological specimens e.g. tissues, to be extracted for thinning to electron transparency.
The Meteor is an in-chamber solution for identifying fluorescent biological targets in cells, tissue, vitreous ice and lamellae. The Meteor can act as a stand-alone correlative module, but also complements the cryoCLEM [linkto: eBIC Instruments - cryo-CLEM] at eBIC.
|
Scios |
Aquilos |
e-beam energy (keV) |
0.2 - 30 |
0.2 - 30 |
Electron Source |
Schottky thermal FEG |
Schottky thermal FEG |
Ion-beam energy (keV) |
0.5 – 30 |
0.5 – 30 |
Ion source |
Ga liquid metal |
Ga liquid metal |
Cryo-transfer |
Quorum PP3010 |
ThermoFisher Scientific |
Stage rotation (°) |
No |
360 |
Sputter coating |
Incorporated into the PP3010 |
Within main chamber |
Grids per load |
Two |
Two |
Detectors |
ETD (SE) |
ETD (SE, BSE) T1 (in-lens, BSE) T2 (in-lens, BSE) |
FEG – Field emission gun, ETD – Everhart-Thornley detector, SE – Secondary electrons,
BSE – Back-scattered electrons, SI – Secondary ions
Objective |
Olympus Fluorite, 50x (WD 1.0mm, NA 0.80) |
Lightsource |
Omicron LedHub
|
Filters |
|
Camera |
Andor Sona - sCMOS, 6.5 μm pixel size |
