Sample Environment

We receive many requests to “integrate” sample environments with the beamline control system. This places a great demand on Beamline Staff and Diamond support teams and we cannot possibly accommodate all requests.

Requests to integrate a rig so that it can be controlled by the beamline’s EPICS control system and GDA data acquisition system will generally be declined. Where a user group or community of users could benefit from rig integration, then this can be discussed as a separate project with the Diamond’s Imaging Science Group Leader and the I12 Principal Beamline Scientist.

Please note that Diamond does not support LabView.

Instead, there are passive ways in which data from users’ rigs can be collected and stored along with beamline diffraction data:

• 0 - 10 V analogue signals at a rate of up to 10 Hz. Signals shall be provided by the user on a BNC co-axial connector with 50 ohm impedance.
• Temperatures using K-type or R-type thermocouples. Please discuss your requirements with your local contact.
• Digital level signals of TTL type. Signals shall be provided by the user on a BNC co-axial connector with 50 ohm impedance. For example, a TTL signal from a user’s rig can be used for detector triggering in some circumstances. Alternatively, the beamline control system can send TTL signals to a user rig.

Users can control their rigs using their own computer and software on a private network.

• It is not permitted to have user computers connected to the beamline network.
• WiFi will not work for communication with devices inside a closed X-ray hutch.
• The user's computer requires a free Ethernet adapter.
• The user must have administrator rights on their machines in order to set up a local network or remote desktop connection. To avoid delays during beamtime, please check your connection method works with your equipment before arrival to Diamond.
• Ethernet patch panels are available to connect user equipment in the hutch with a user’s control computer in the beamline control room.
• A user chicane is available if other cables need to be routed to the control room. Please, read carefully the description of Experimental Hutches.
• USB is not recommended due to the restriction on cable length to ~ 3 m. If using USB is unavoidable, users are responsible for providing their own USB extenders. USB to Ethernet is recommended.

Beamline I12-JEEP has some sample environments available to users. Due to our diverse user community, it is not possible to provide every sample environment that a user might need. Instead, the beamline is capable of accepting a wide variety of user-owned sample equipment. If you plan to bring your own equipment, please contact Beamline Staff to discuss your requirements and confirm technical feasibility before submitting a proposal.

Sample Environments belonging to other organisations that I12 users can borrow, subject to agreement between users' group and corresponding organisation.

Please, remember that this equipment does not belong to Beamline I12 and users should directly communicate with thouse organisations which own the equipment.

- General

The rig is a 100 kN uniaxial servo-hydraulic system with an 8800MT controller. Control is possible using Instron’s standard Console and WaveMatrix software. The rig is also integrated with the beamline’s EPICS control system, with a user interface that emulates the main functionality of Instron’s Console software. The majority of users prefer to control the rig using Instron’s software, because they are already familiar with it from rigs at their own institution.

The beamline staff have limited resources for training new or inexperienced users. As similar rigs are widely available in Universities, users are advised to undertake preliminary training at their own institution before performing experiments on I12.

INSTRON 100 kN uniaxial servo-hydraulic mechanical test rig installed on Sample Table in Experimental Hutch 2 for diffraction strain mapping experiment.

INSTRON 100 kN uniaxial servo-hydraulic mechanical test rig with sample installed in 100 kN load cell for diffraction strain mapping experiment (sample is broken). 2D area diffraction detector is off-centered with respect to the beam.

Transducers:

• 100 kN load cell.
• Optional 10 kN load cell that can be installed on top of the grips. This load cell is rarely used.
• LVDT on the actuator for displacement measurement.
• Clip gauge with 5 mm range.
• Optional strain gauge input.

The rig is mounted on the Large Sample Table in Experimental Hutch 2.

Fatigue testing at up to 20 Hz is possible, depending on the sample type and amplitude required. Note that fatigue tests are paused when taking X-ray imaging or diffraction data.

Good control of tests in Load Control requires tuning of the controller parameters. We recommend bringing at least three spare samples for control loop tuning at the start of the experiment.

- 100 kN Hydraulic Grips

The rig has fatigue-rated hydraulic grips.

There are four sets of jaw faces available to accommodate different specimens. Users shall design their specimens to a well-known international standard for mechanical testing, with appropriate grip ends. We require that the specimen ends are at least 25 mm long, however the official Instron recommendation is 37.5 mm, i.e. 75% of the grip length).

If you choose to use flat specimens, note that the grips are aligned so that the flat face of the sample is perpendicular to the incident X-ray beam, as shown in the diagram below.

Flat specimen orientation with respect to X-ray beam.

- 10 kN Tensile Only Grips

There are 10 kN Tensile only grips available for use with the 10 kN load cell.

Different jaws available, which are tightened by hand to secure the specimens.

For convenience, the jaws have been pre-assembled with wedge adapters, which fit the 100 kN hydraulic grips, so the grips and 10 kN load cell are piggy-backed onto the hydraulic grips.

- Fracture Mechanics Grips

Instron Catalogue No. 2750-084.

Fracture Mechanics Grips For 12.7 mm (0.50 in) Thick Specimens.

Suitable for fatigue crack growth and JIC testing of "1T" compact tension specimens (not suitable for KIC testing of "1T" specimens).

Capacity: 110kN Static or 55kN Dynamic.

Clevis Pin diameter limits of size according to drawing: 0.470 to 0.480 inches (11.938 to 12.192 mm).

Mechanical interface: M30 x 2 right hand female threads.

Requires: fatigue rated adapters.

- Wedge Blocks

There are two pairs of wedge blocks which can be installed in the grips instead of the jaw faces. The wedge blocks have M30 x 2 mm pitch RIGHT HAND threads for the attachment of other grips and accessories.

There is one pair of low profile adapters, and one pair of high profile adapters.

The high profile adapters are MANDATORY for mounting "piggy back" load cells and other fixtures, in order to avoid the hydraulic grips fouling on accessories if accidentally opened.

Do NOT use the low profile adapters without first checking if the hydraulic grips could foul the accessory installed on the adapter.

- Compression Plattens

Plattens for compression testing are available. Due to the small separation of the plattens in most compression tests, diffraction signals from samples may be obscured in the vertical plane.

- Tomography with the 100 kN Instron.

Limited angle tomography is possible, covering an angular range of ~ 135 degrees instead of the usual 180 degrees. Users can expect to see some artefacts in their tomography scans because of the limited angle. However, experience has shown that acceptable results can be obtained. Iterative reconstruction methods may help to reduce artefacts. Due to the mass of the rig, maximum tomography rotation speed is limited to 2 degrees per second. Optical modules 1, 2 and 3 can be used for tomography with INSTRON, but optical module 4 cannot be used due to the eccentricity of the Large Sample Table. Please, read the description of imaging cameras for tomography.

For limited angle tomography, the sample gauge length must be longer than for diffraction measuremetns. The ROI should be at least 75 mm above the lower grip. To inspect a central part of the sample the sample gauge length must be at least 2×75 mm + vertical ROI size.

The following table summarises tomography- and radiography-specific parameters for four optical modules with PCO.edge visible light sensor and with MIRO 310M visible light sensor which can be used as a reference for planning experiments with INSTRON 100kN rig (important: these two sensors cannot be used simultaneously). Note: these values are for guidance only; INSTRON can be installed only in Experimental Hutch 2. Continuous rotation of INSTRON 100kN rig is not possible.

* Tomography in EH2 using optical module 4 is affected by the eccentricity of the Large Sample Table.

Selecting monochromatic or white beam for high speed imaging with MIRO 310M depends on the attenuation of your sample.
It is possible to use a filtered white beam to gain higher speed, however the contrast and the image quality will be decreased.

Video of experimental setup with INSTRON on Sample Table 2 for limited angle tomography can be viewed below (rotation of Sample Table 2 with real rotation speed):

Heating furnace ODISC was designed on I12 for in situ chemical experiments, but can also be used for other types of experiments, which require heating of large samples.

Please, refer to the publication for more technical details: S.J. Moorhouse, N. Vranješ, A. Jupe, M. Drakopoulos, D. O’Hare. Review of Scientific Instruments, 83, 084101 (2012)

Contact Beamline Staff to discuss your proposal before submission.

Users can design and manufacture their own inserts for available metal autoclaves (drawings including pdf-files and step-file) for their specific research projects. Users also can design their own sample chambers instead of those metal autoclave or quartz tubes which are available on the beamline; the corresponding drawings of the furnace ODISC (pdf-files and step-file) with dimensions can be downloaded here.

ODISC heating furnace can be used for two types of experiments aiming in situ measurements during chemical reactions:

a) In situ measurements of reaction kinetic during solvothermal synthesis experiments, which performed at temperatures below boiling temperature of the solvent.

This type of experiments can be performed using quartz tubes with screw caps.

Important: users must bring their own quartz tubes with caps suitable to insert the thermocouple into solution. The outer diameter of quartz tubes must be below 15 mm, and their height should be above 80 mm. Beamline does not provide quartz tubes for users. Check that metal thermocouples will not dissolve in your solution!

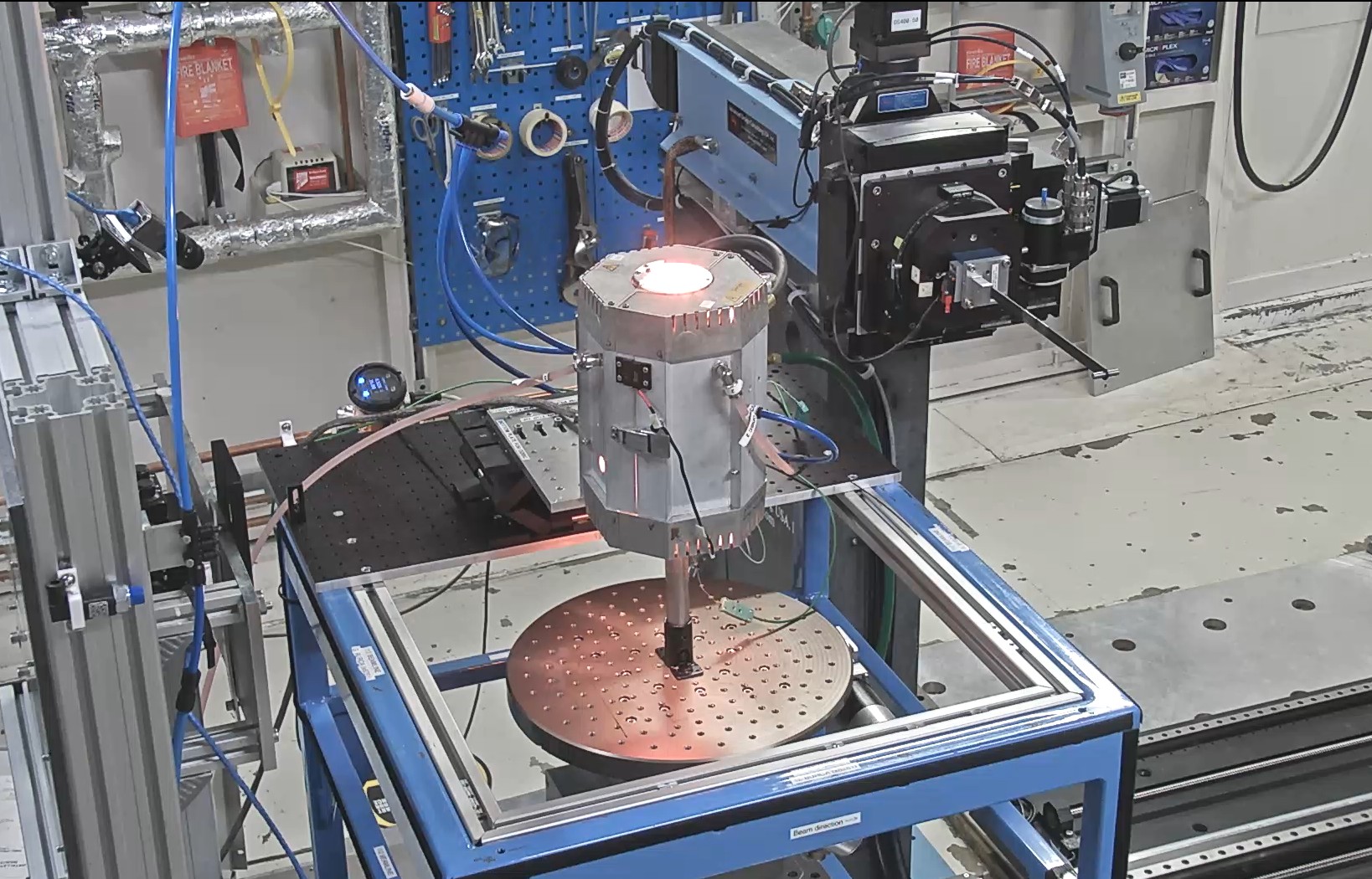

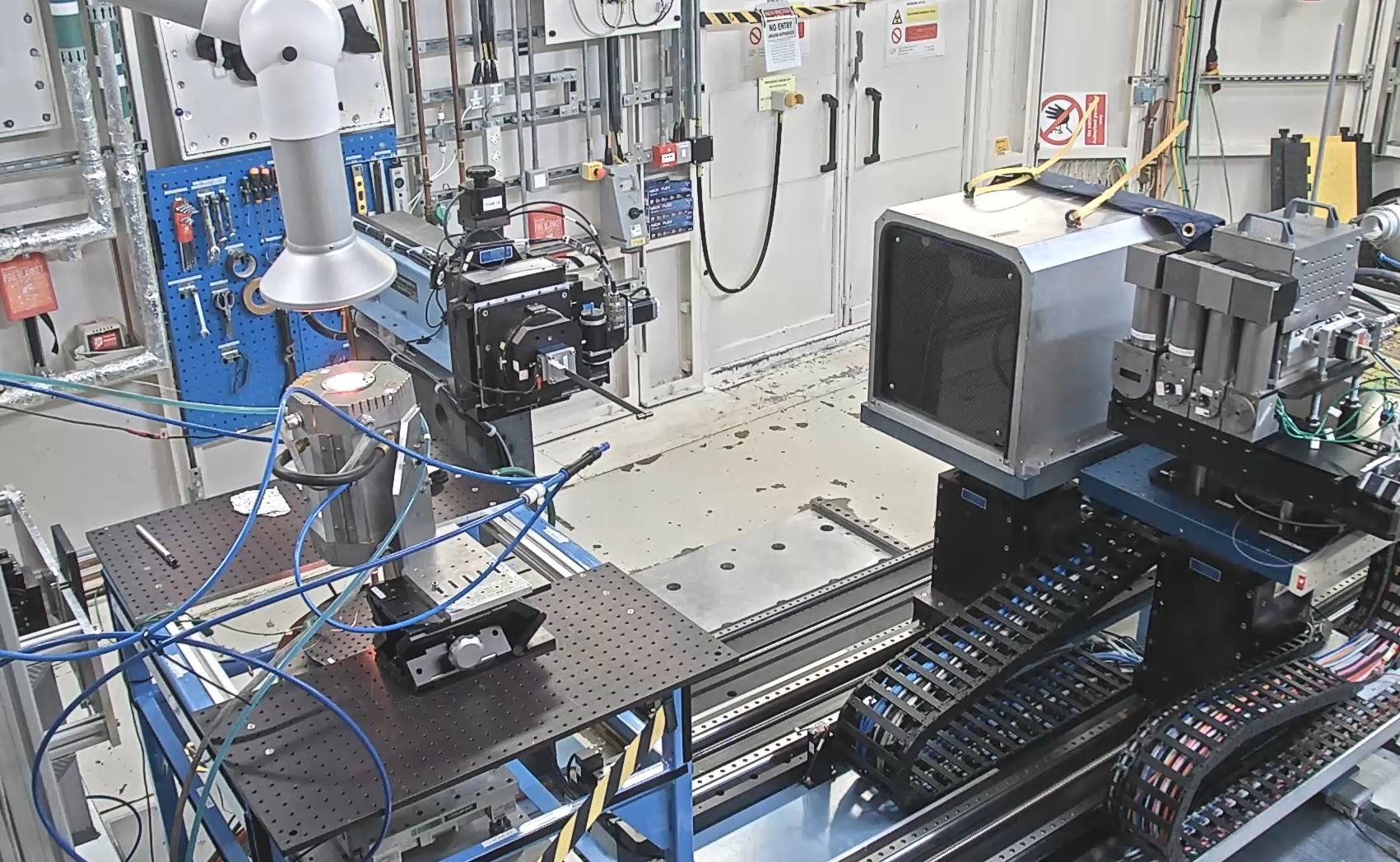

ODISC furnace installed on Sample Table 1 with quartz tube inside.

b) In situ measurements of reaction kinetic during hydrothermal synthesis or high-temperature solid-state synthesis; can be performed in metal autoclaves. The excess pressure during synthesis must not exceed 50 bars – maximum pressure allowed for metal autoclaves on beamline I12.

If you plan to perform the in situ measurements of reaction kinetic during hydrothermal synthesis on beamline I12, you are allowed to investigate only those reactions for which you confirmed that the maximum excess pressure during reaction is below 50 bar. Beamline provides suitable PTFE inserts for metal autoclaves which allow to perform experiments at temperatures below 250 °C (above 250 °C the PTFE inserts will melt).

If you plan to perform the in situ measurements of reaction kinetic during high-temperature solid-state synthesis, you must prepare completely sealed quartz tubes or containers suitable with all starting materials inside the sealed tube or container before your beamtime.

Important: Diamond does not have suitable laboratory equipment for sealing quartz tubes under vacuum or inert atmosphere. Beamline does not provide any suitable quartz tubes or containers for using with metal autoclave. The size of your containers or quartz tubes must fit inside beamline’s metal autoclave.

The temperature distribution inside the ODISC is uneven: please remember this if you plan to use ODISC with very small samples (1 - 5 mm). The temperature distribution inside the ODISC has no effects on experiments which involve specified above quartz tubes or metal autoclaves.

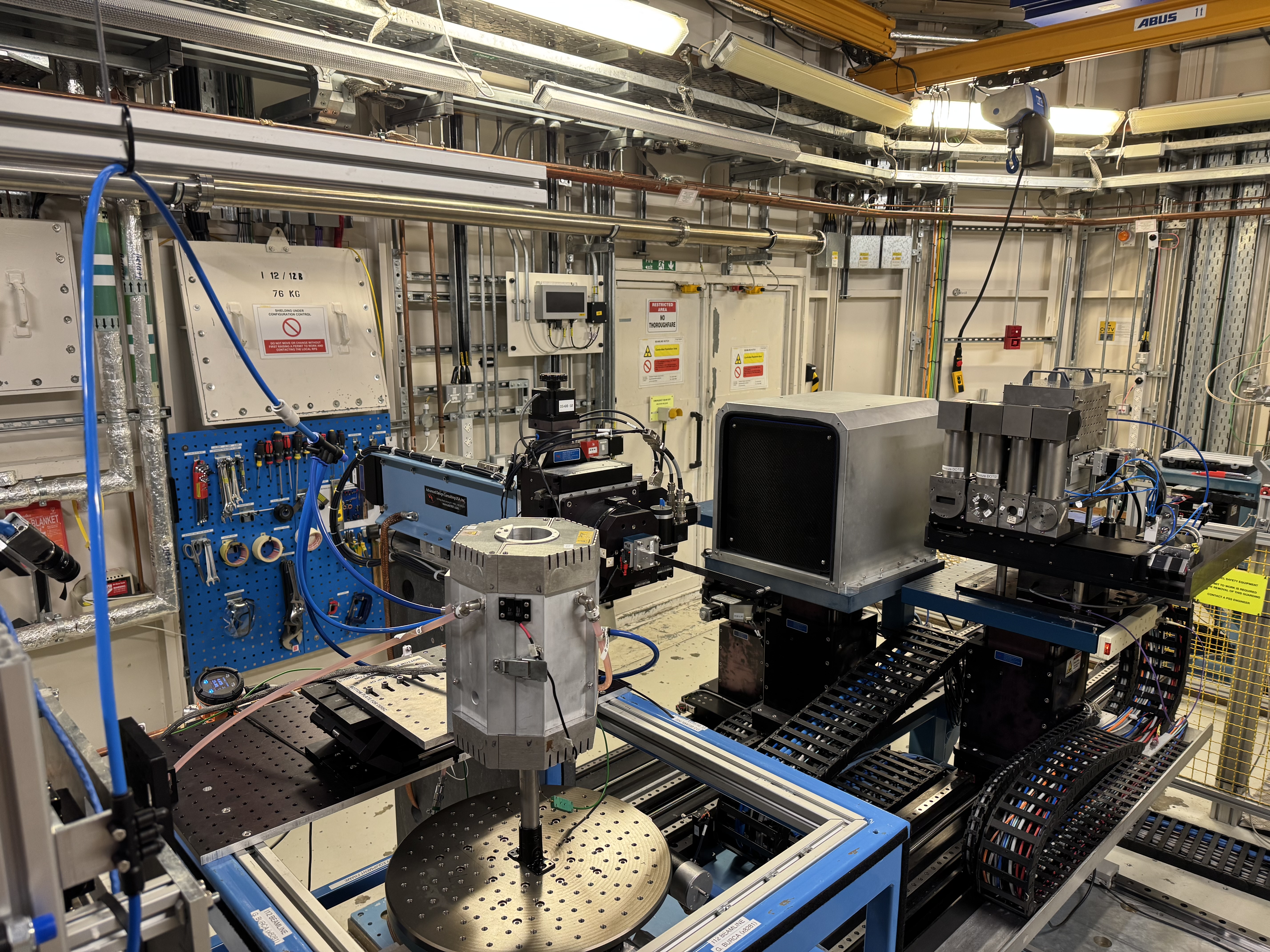

ODISC furnace installed on Sample Table 1 with metal autoclave inside (left) and metal autoclave and PTFE insert with dimensions (right).

Standard laboratory Oxford Cryostream 700 can be used for heating/cooling small samples in the temperature range 80 K - 473 K (or -153 °C to 200 °C).

Heating/cooling is performed by nitrogen gas flow. The nose of cryostream has small exit window for nitrogen gas of 5 mm diameter, thus only small objects can be used for efficient heating/cooling with cryostream. To avoid a large temperature gradient, your sample should have size below 3 mm in horizontal directions.

If you plan to use the cryostream with your equipment (i.e. with loading rigs or special cells), you should think about the suitable arrangement of your equipment and cryostream so that the X-ray beam path remains clear (not obstructed by parts of any equipment) for incoming X-ray beam and for diffracted X-ray beam.

Heating furnace HELIOS was designed on I12. It consists of four lamps and dedicated for high temperature (up to 1300 °C) powder X-ray diffraction and imaging studies in air in transmission geometry. The hot spot size is limited – approx. 2×2×2 mm3. Because of rapidly changing resistance of the lamps at low temperatures/power, the temperature stability and ramp control are not reliable below 200 °C.

Four lamps are focused towards a common point at centre of the furnace. Sample can be mounted from the top, bottom or side. The front of the furnace is covered by an aluminium hemisphere lid. Two front lids are available, with hole sizes of 2 mm and 25 mm, respectively.

Two mounts (image on the left) for capillaries (diameter 1.5 mm or 2.0 mm) or for thermocouples are available for X-ray powder diffraction measurements with HELIOS furnace. A goniometer head (image on the left) can be used to mount the sample on the sample stage for tomography or diffraction measurements.

Important: furnace HELIOS can be used either with K-type, or with R-type thermocouples, but not with both types of thermocouples in the same experiment (high-temperature limit for K-type thermocouples is approx. 1100°C; R-type thermocouples must be used for temperatures above 1100°C). Users must clearly specify the type of thermocouples before the experiment. Due to the expense of R-type thermocouples, we request that users bring these thermocouples for their experiment. Purchasing bare R-type wires for assembling your own thermocouples is more cost effective than buyig pre-made ones.

A spot welder is available for making thermocouple junctions and for welding thermocouples to samples.

Schematic and photos of custom design metal heating block for in situ chemistry measurements with magnetic hotplate stirrer.

Metal heating block is designed for low temperature in situ chemistry experiments - from room temperature to approx. 100 oC. It can be used with magnetic hotplate stirrer, allowing to mix substance during the measurements providing the homogeneous distribution of material in the reaction tube. This configuration enables in situ measurements of the kinetic of chemical reactions from diffraction measurements for crystalline materials.

Users can design and bring their own metal block according to specifications listed above.

Important: users must bring the sufficient amount of their own reaction quartz tubes. The outer diameter of quartz tubes must be 12 mm (there are two different option available to order – 12 mm and 13 mm; please check also the height of your tubes! It is the responsibility of users to bring suitable quartz tubes). Beamline does not provide quartz tubes for users.

The Linkam TS1500 hot stage is a small platinum resistance commercial furnace for measurements from room temperature to 1300 °C in Ar gas flow or under vacuum. The hot stage is dedicated only for high temperature X-ray diffraction measurements in transmission mode. Additionally, the inner furnace part can be purging with gas (Ar or N₂, not He, not H₂) to protect samples against oxidation.

For measurements above 600 C, the Ar gas flow or vacuum must be used to protect tungsten wires inside the heater.

Linkam TS1500 hot stage: with ceramic sample cup (left) and mounted on the Sample Table in Experimental Hutch 1 (right).

The sample is placed inside the ceramic sample cup (~2.5-3 mm deep and 7 mm diameter) so that the sample is heated from the underneath as well as from the sides. A good sample to use is a 1 mm thick and ~ 6 mm in diameter with the total mass not exceeding 120 mg.

The total mass of sample and sample carrier above 120 mg will overload the heating element and equipment will not perform to specification or even the heating element can be damaged.

Maximal heating / cooling rate is 200 deg/min.

The Linkam TS1500 hot stage can be used only for diffraction experiments, it is not suitable for tomography measurements.

For more information about the Linkam TS1500 hot stage, please read the manual.

Important: The beamline cannot provide this stage if it was not requested in the proposal. The stage will be provided without vacuum pump if using with vacuum pump was not specified in the proposal.

Schematic of large electromagnet installed on the frame above the Sample Table in Experimental Hutch 1.

Large electromagnet with remotely controlled magnetic field (in the range from 0 T to 1 T) can be installed above the Sample Table in Experimental Hutch 1. This electromagnet belongs to another beamline and can be used by special arrangement only. The installation of the large electromagnet is not a straightforward task and it requires 6-8 h from the users’ awarded beamtime.

Electromagnet can be used for both, diffraction and tomography measurements. It is installed on a specially designed frame above the sample Table, so the continuous tomography and 3D diffraction in the magnetic field are also possible.

CAD drawings of the large electromagnet (installed above Sample Table in Experimental Hutch 1) can be downloaded here.

Important: heating/cooling furnaces are not provided with this magnet and users are expected to design and bring the suitable furnace for work with this magnet. The beamline cannot provide the large electromagnet if it was not requested in the proposal.

The ETMT is owned by the University of Manchester at Harwell (UoMaH).

The use of this equipment for beamtime or offline work must be agreed with UoMaH ([email protected]) in advance of submitting a proposal.

Proposals are required to include a UoMaH staff member as co-investigator (after proposal acceptance at the latest).

All potential ETMT user will have to undergo a 2-day training course (day 1 provided by Instron (paid by the user), day 2 for familiarisation with the ETMT using own samples) ahead of any experiment. Access to I12 for ETMT training and/or ETMT familiarisation has to be coordinated with I12 staff.

Beamline staff will assist with installing the ETMT and preparing the beamline setup. They currently do not have the resources to train and support users in performing thermo-mechanical tests.

Experimental support for the use of the ETMT will be provided by UoMaH staff (normal working hours only).

If the ETMT is used in an experiment that results in a publication, the publication will reference The University of Manchester / Diamond collaboration in the following manner: "This experiment was possible due to the contribution of The University of Manchester at Harwell (UoMaH) ETMT".
