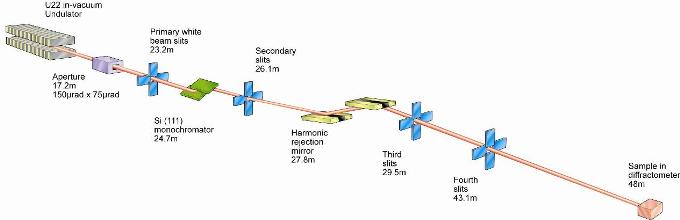

Source: | 90 pole in-vacuum undulator (U22) |
Energy Range: | 5-25 keV (0.4-2.1 Å) |
Energy resolution (ΔE/E): | 1.5x10-4 at 10 keV |
Energy stability: | 0.5 eV at 10 keV or less |
Beamsize at sample (FWHM): | ~0.8 mm (v) x 2.5 mm (h) |
Beam divergence at 10 keV (FWHM): | 30 μrad (v) x 100 μrad (h) |
Photon flux at sample at 300 mA: |
1014 ph/s/0.1%bw at 10 keV 1.70 x1013 ph/s/0.1%bw at 15 keV |
Resolution (Δ2θ, analysing crystal): | 0.005˚ at 10 keV |
Temporal resolution (PSD): | ms-s per powder pattern |
* The are design specifications. In practical terms the energy range is limited to 6-25 keV. The normal operating energy is 15 keV. Please contact beamline staff to discuss specific energy requirements before submitting a proposals requesting non-standard energies.
MAC arms on 2Θ circle; each with Si(111) analysing crystals (x9) mounted on α and detectors (x9) on 2α rotary table
PSD detector; Mythen-2 Si µ-strip modules mounted on the δ-circle
Thales RF4343 pixellated area detector (2880x2880 pixels 150x150 um pixel size, 430x430 mm active area) mounted on z-transation translation arm on sample table
Please note: the above figures are the design specifications. Potential users should contact the I11 beamline team to discuss current capabilities.
