Equipment

Equipment or Component

Comments

Camera length 1.9-9.9 m

Can access wide q range by changing energy. Camera lengths in 0.25m steps possible

Energy range 7 – 20 keV

In air operation for all sample environments

Large sample table (100 kg)

GDA names (base_x, base_y)

Travel of table is ± 100 mm in vertical and horizontal directions

Precision XY translation stage (1 kg)

GDA names (pxy_x, pxy_y)

Travel of table is ± 50 mm in vertical and horizontal directions

Rotation stage (10 kg)

GDA name (rot)

0 to 360°

0.2° increment

Precision rotation stage (1 kg)

GDA name (prot)

0 to 360°

0.05° increment

Pilatus P3-2M

2D SAXS detector (Default)

Pilatus P3-2M-DLS-L

Fast shutter

In vacuum

Microfocus end station

Inline microscope

Capillary sample changer (including temperature Control via water bath)

Liquid cell holder

Solid sample grid (large holes - 10mm dia)

Solid sample grid (small holes - 5mm dia)

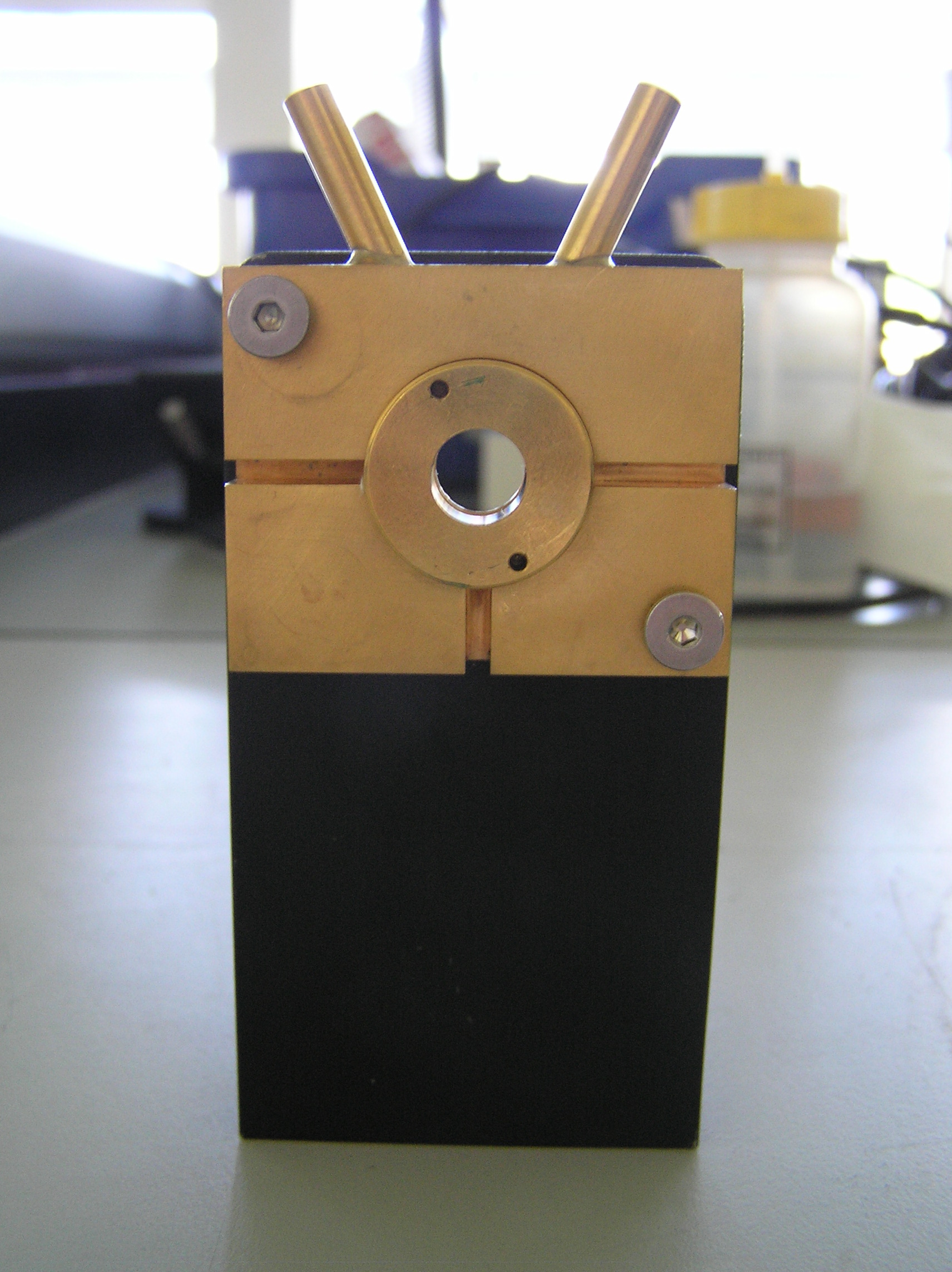

Capillary holder

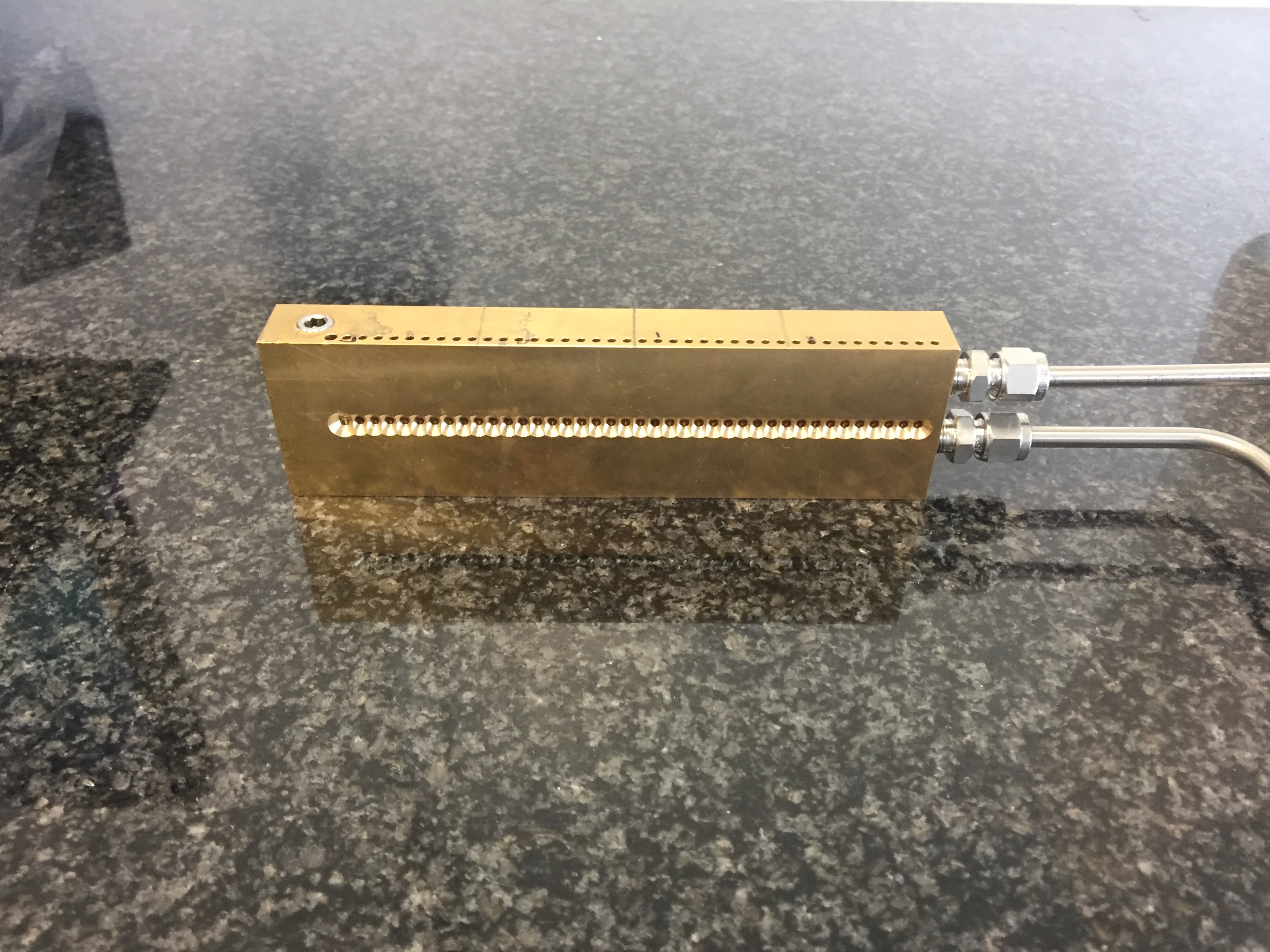

Thermally controlled sample rack for DSC pans

Heated capillary holder

Lauda recirculating bath (-20 to 150°C dependant on heat transfer fluid)

Linkam DSC

 (-180 to 550°C)

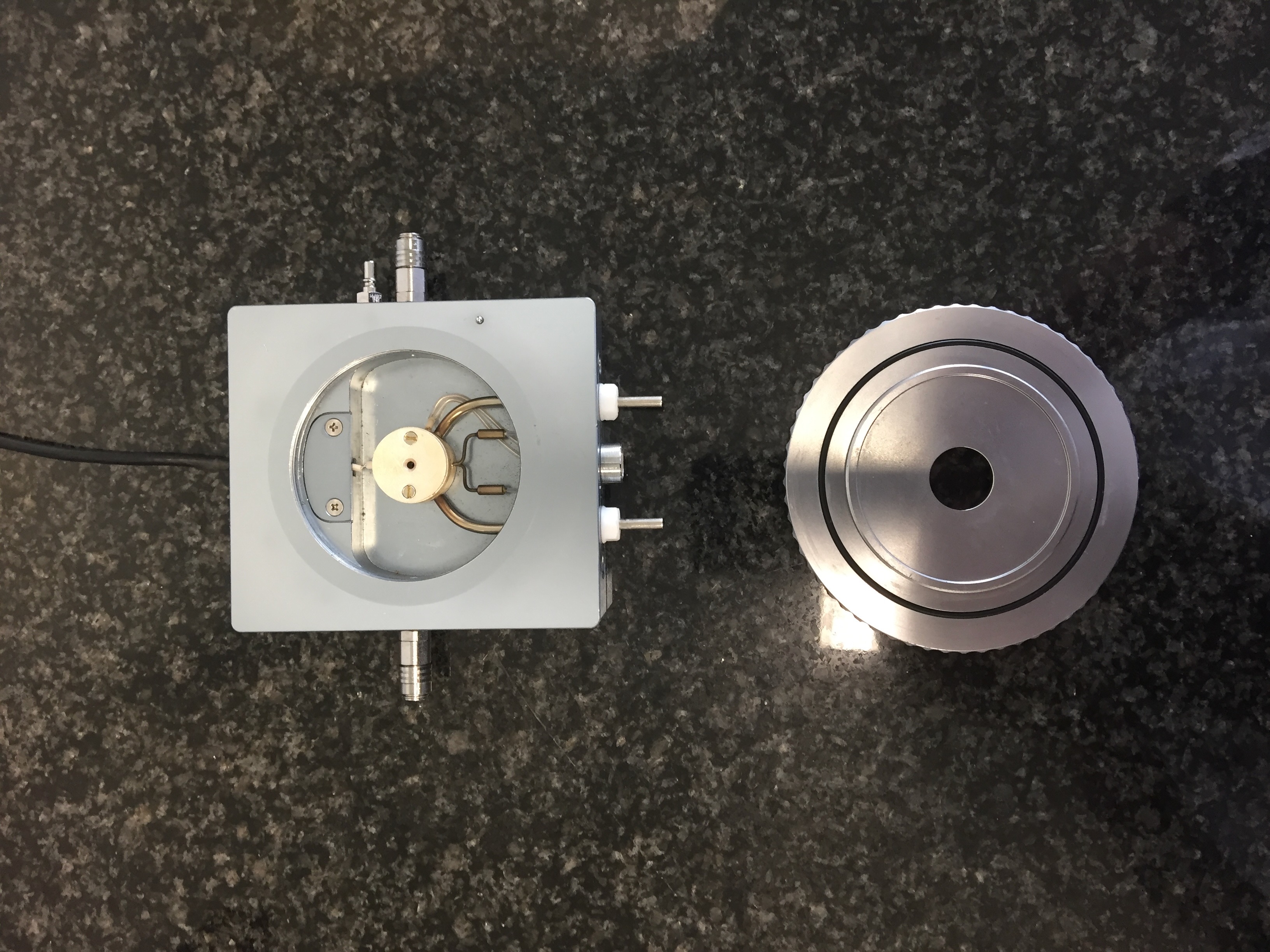

Linkam capillary stage (-180 to 550°C)

Stopped Flow – 4 syringe.

Please contact beamline team before submitting.

Stand alone control by proprietary software

Peristaltic pump

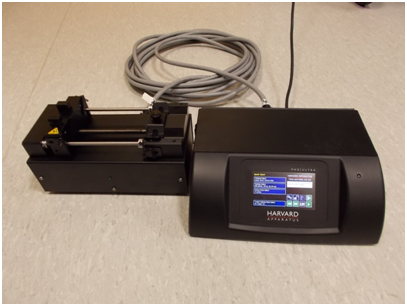

Syringe pumps - 2 syringe

Minimum speed is 1.5 pl/min, or 0.025pl/s, using a 0.5 µl syringe. The travel rates are within 0.18µm/min - 190.8mm/min

Anton Paar Rheometer Physica MCR 501 rheometer.

The Rheometer has several geometries availible including Cone and Plate (50mm and 25mm diameter) edge measurement only, and Couette Cell (49mm diameter with 9.5mL sample volume), centre and edge measurement.

Mini Couette Cell 1mL

Please contact beamline team before submitting

Stand alone control by proprietary Rheocompass software

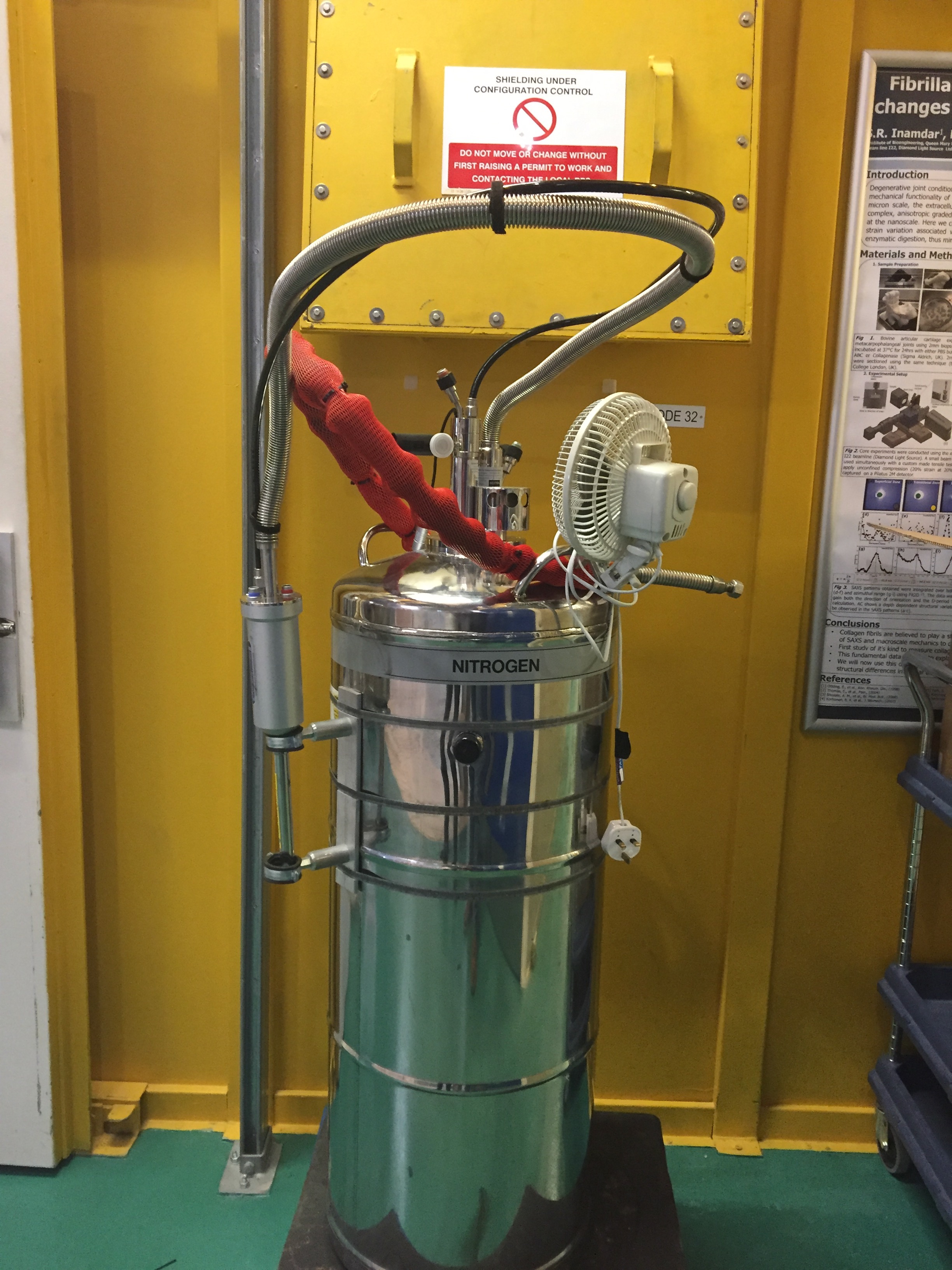

Cryojet (-180 to 210°C)

P-Jump Cell (0 to 120°C, 1 to 5000 bar)

Diamond Anvil Cell (DAC)

The Boehler-Almax Plate DAC is equipped with two pairs of diamonds (300um and 800um culet size). The achievable pressure depends on choice of the diamond anvil size. Anvils with 800um diameter are used to achieve pressures about 0.1-10GPa, as 300um anvils are capable of compressing up to 70-80GPa.

The guide for using the PlateDAC and sample loading are available on request.

In-vacuum flow cell. This vacuum chamber extends the WAXS nose conde, allowing samples in flow from e.g. peristalic pump, syringe pump or user-supplied fluid systems to be examined without background from the WAXS entrance window.
