The main data view in ISPyB defaults to show all data collections. However, you can use these buttons to select a certain experiment type:
VMXi Relevant
Not used on VMXi

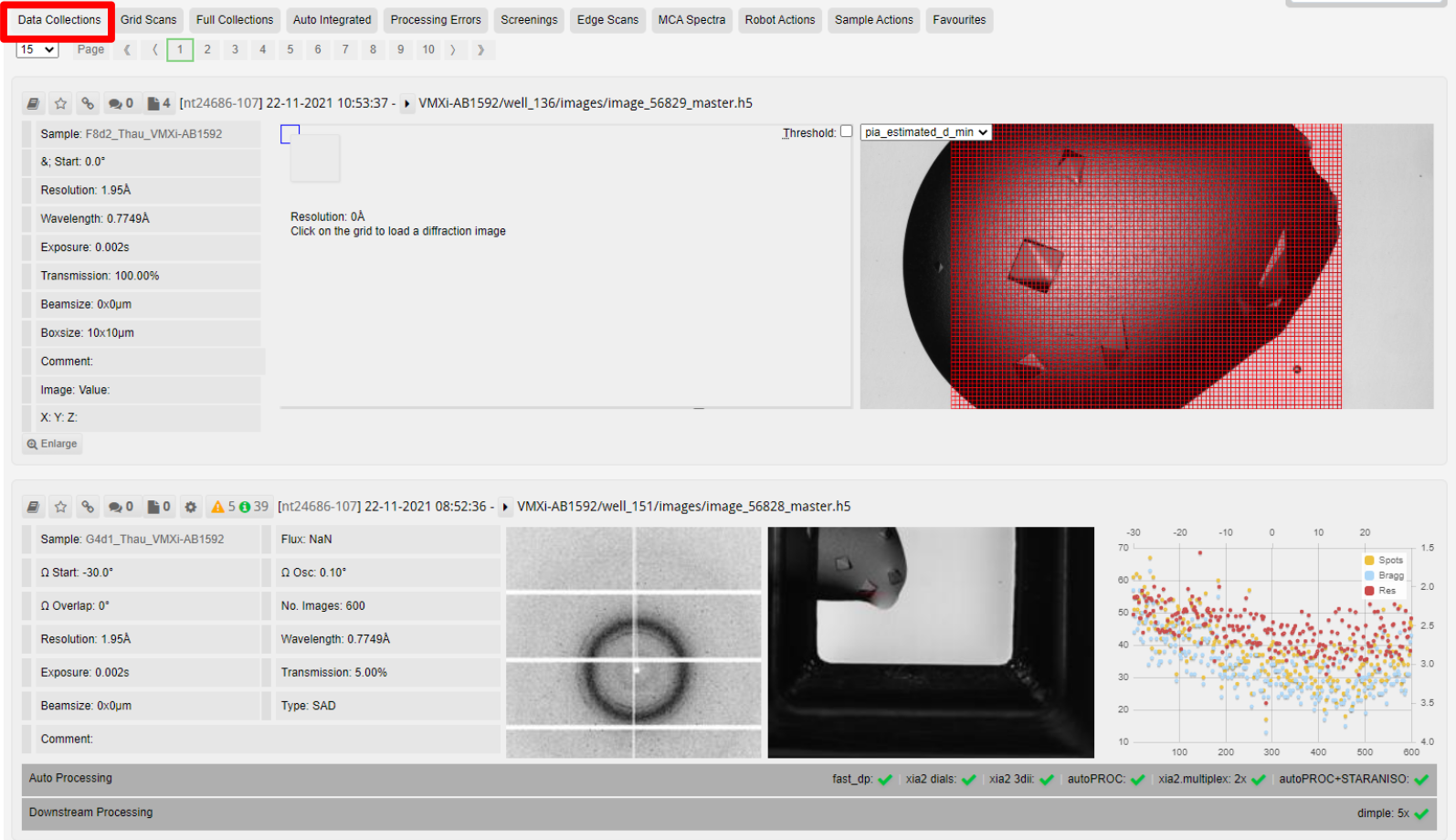

Selecting this option selects any data collections that have been done, including grid scans. On VMXi, this selects all the data.

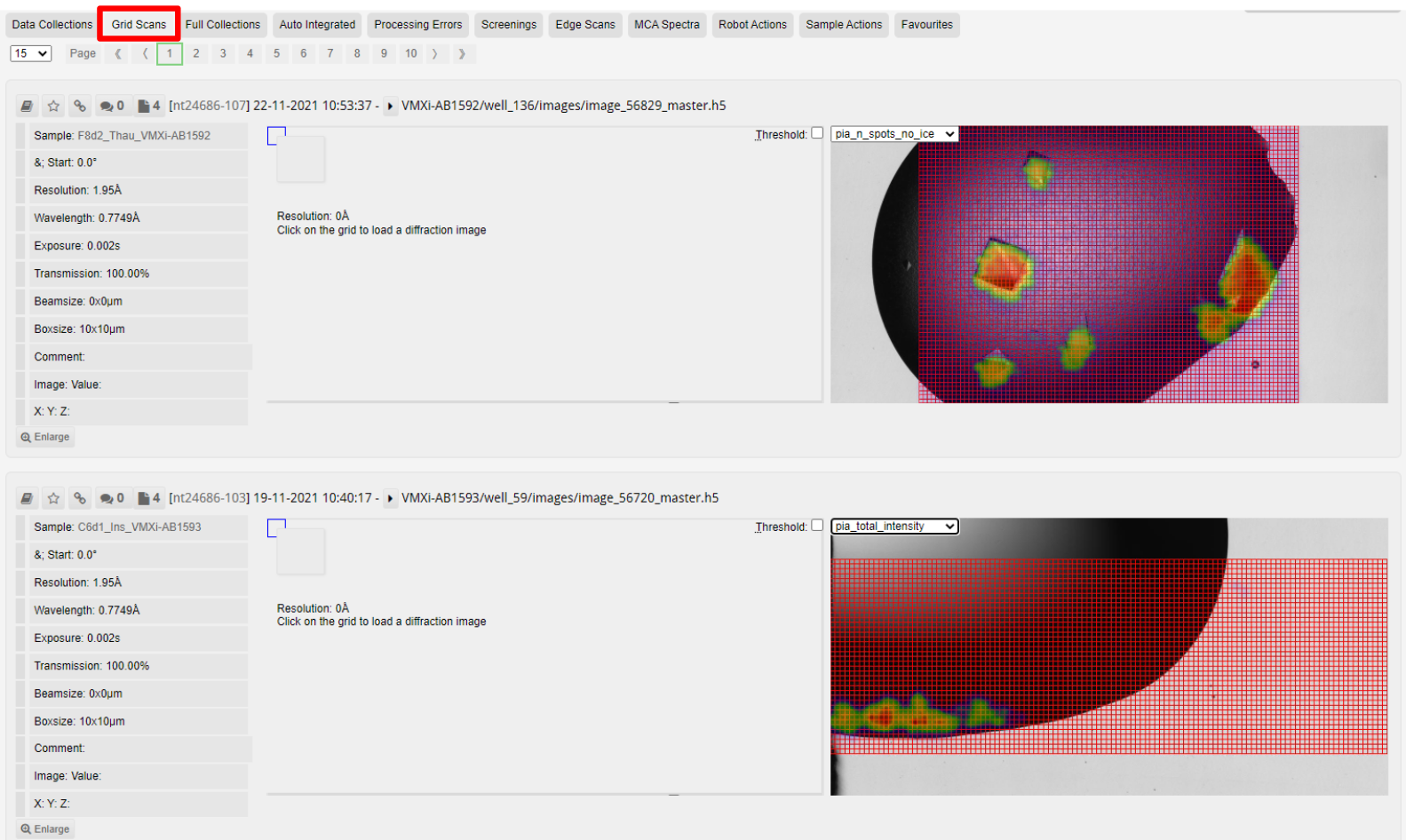

Grid scans are rastered x-ray collections which cna be done across part or the whole of a drop in a plate:

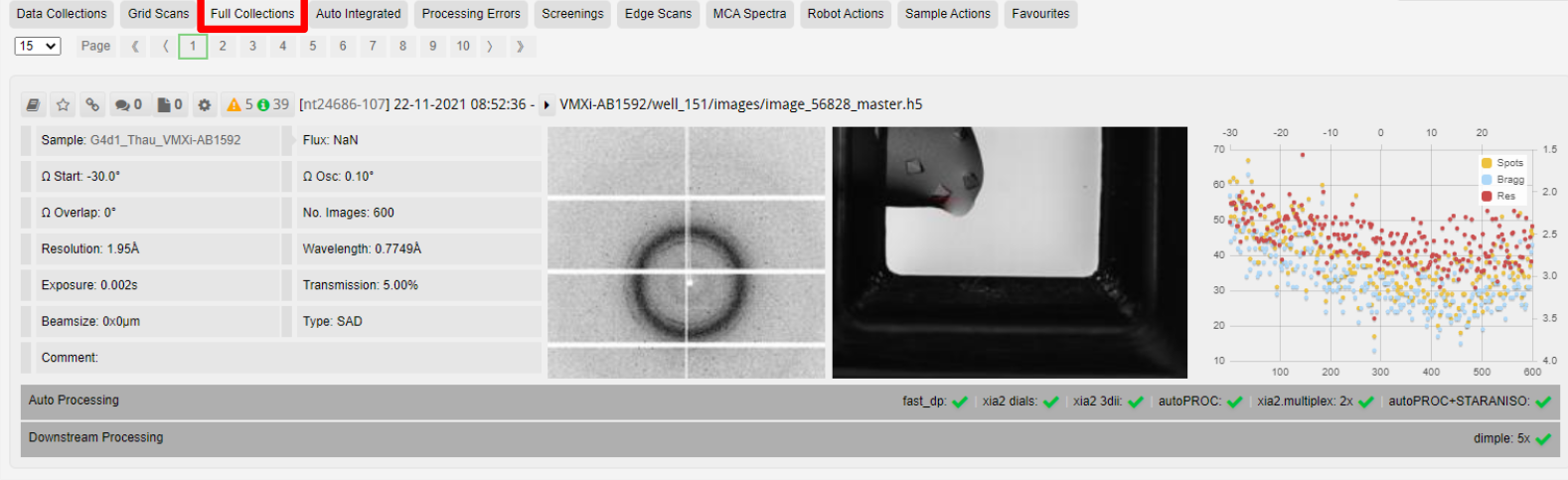

Shows only data collections. Clicking the button a second time deselects the subset and returns you to the full data-set.

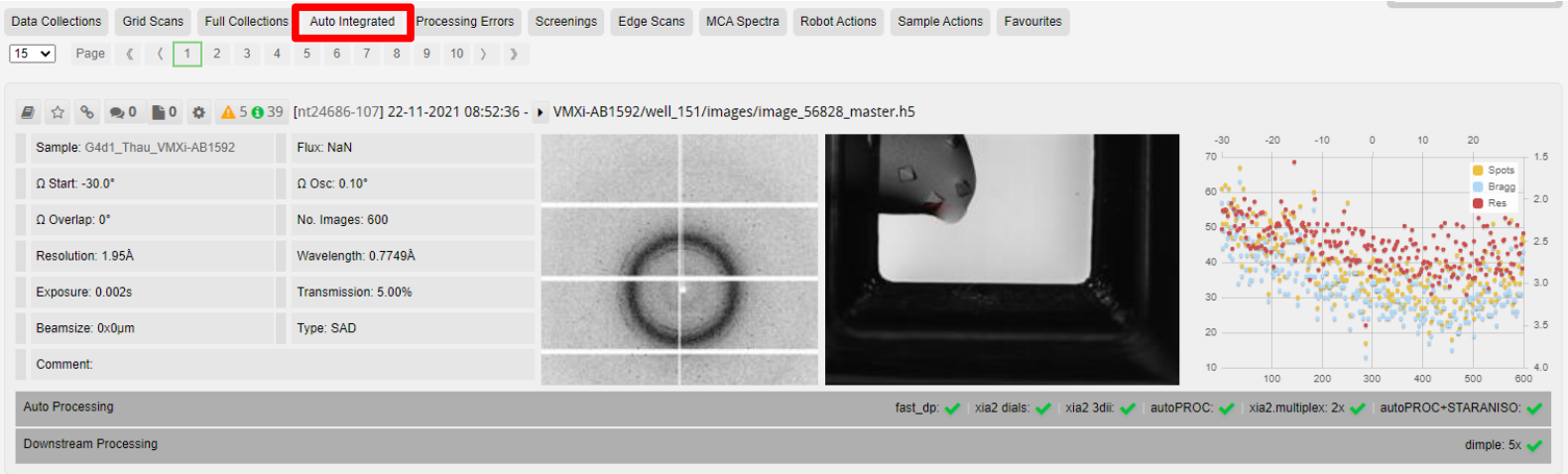

This subselects the datasets where autoprocessing has sucessful integrated the data collection:
Selects out datasets with failures in autoprocessing.

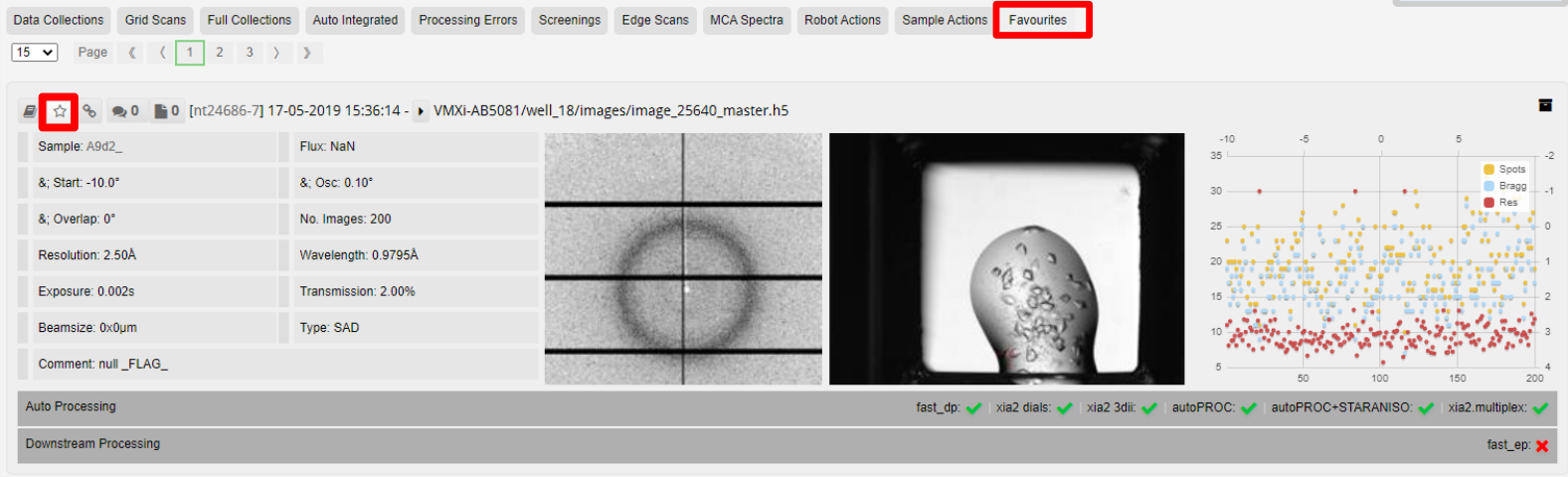

Data sets and grid scans of interest can be selected as favourites, by using the star icon:
