26 November 2014
I20-1 is now I20-scanning
I20-2 is now I20-EDE
Please reference the beamline and the branchlines with these new names in your publications.
A collection of 11 different crystal cuts is available in I20 which allow covering a broad range of emission lines (K and L). The tool below provides information on the most appropriate crystal analyzer for the emission line and the energy range of interest. This tool is operating under a beta version. Please submit any feedback or comments using the orange button on this page.
| Element | Cut | Quantity |
|---|---|---|
| Si | 110 | 14 |
| Si | 111 | 14 |
| Si | 331 | 5 |
| Si | 422 | 1 |
| Si | 100 | 7 |
| Si | 531 | 14 |
| Si | 620 | 7 |
| Si | 642 | 14 |
| Ge | 111 | 14 |
| Ge | 440 | 14 |
| Ge | 422 | 7 |
| Ge | 620 | 7 |

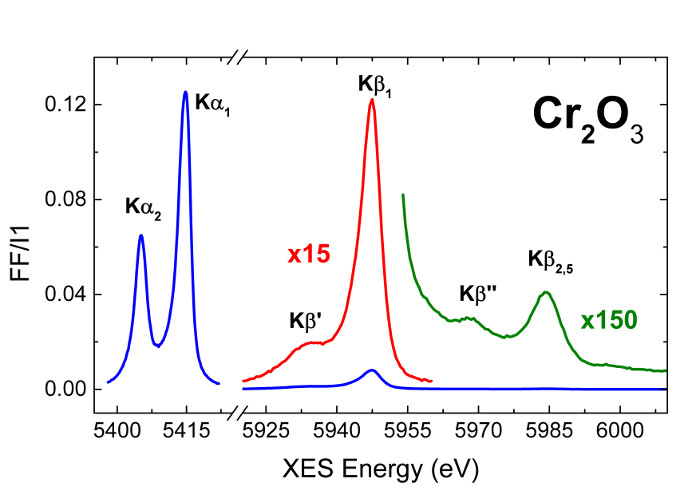

Complete X-ray emission spectra of K emission lines for Cr2O3. Intensities of different lines have been scaled for sake of comparison. One-electron energy level diagram is shown on the right side.

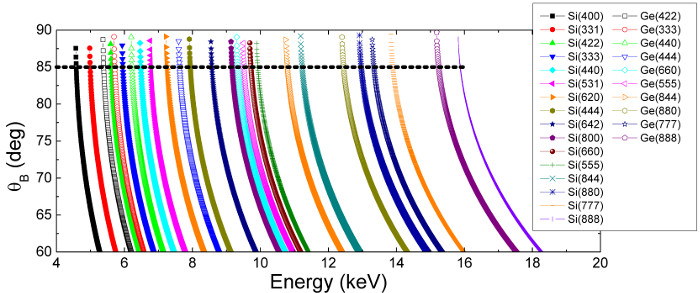

Energy range covered by the different reflections of the crystal analyzers available in I20.
