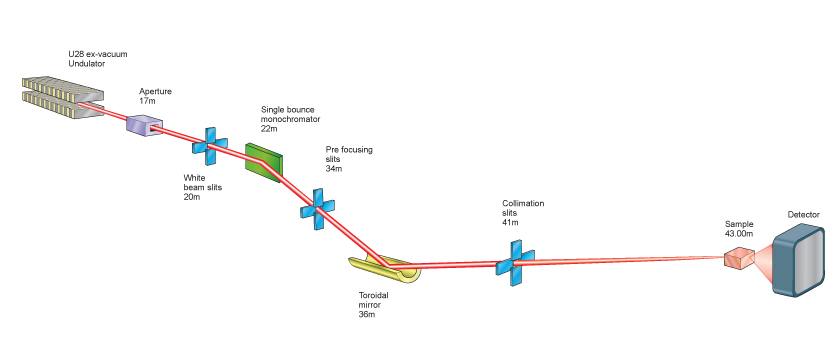

The I04 and I04-1 undulators are directly in line, in the same straight section of the ring, but slightly canted, so that the photon beams are separted by 1mrad; the I04-1 beam is then deflected by a fixed monochromator in the I04 optical hutch.
