In the first experimental hutch (EH1) I15 has two end stations, a six-circle diffractometer and downstream of it a micro-focus and laser-heating table.

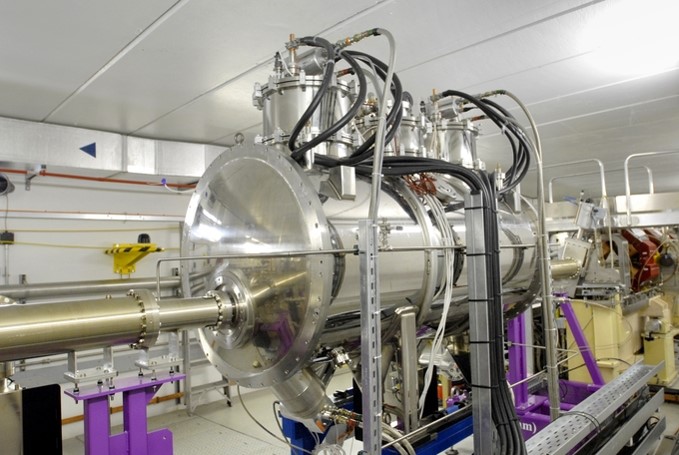

Superconducting Multipole Wiggler
|Peak Field (T)||3.5 (variable)|
|Magnet Period (mm)||60|
|Number of Periods||22.5|
|Critical Energy (keV)||21|
|Nominal Length (m)||1.5|
|Total Power at 300mA (kW)||37.25|

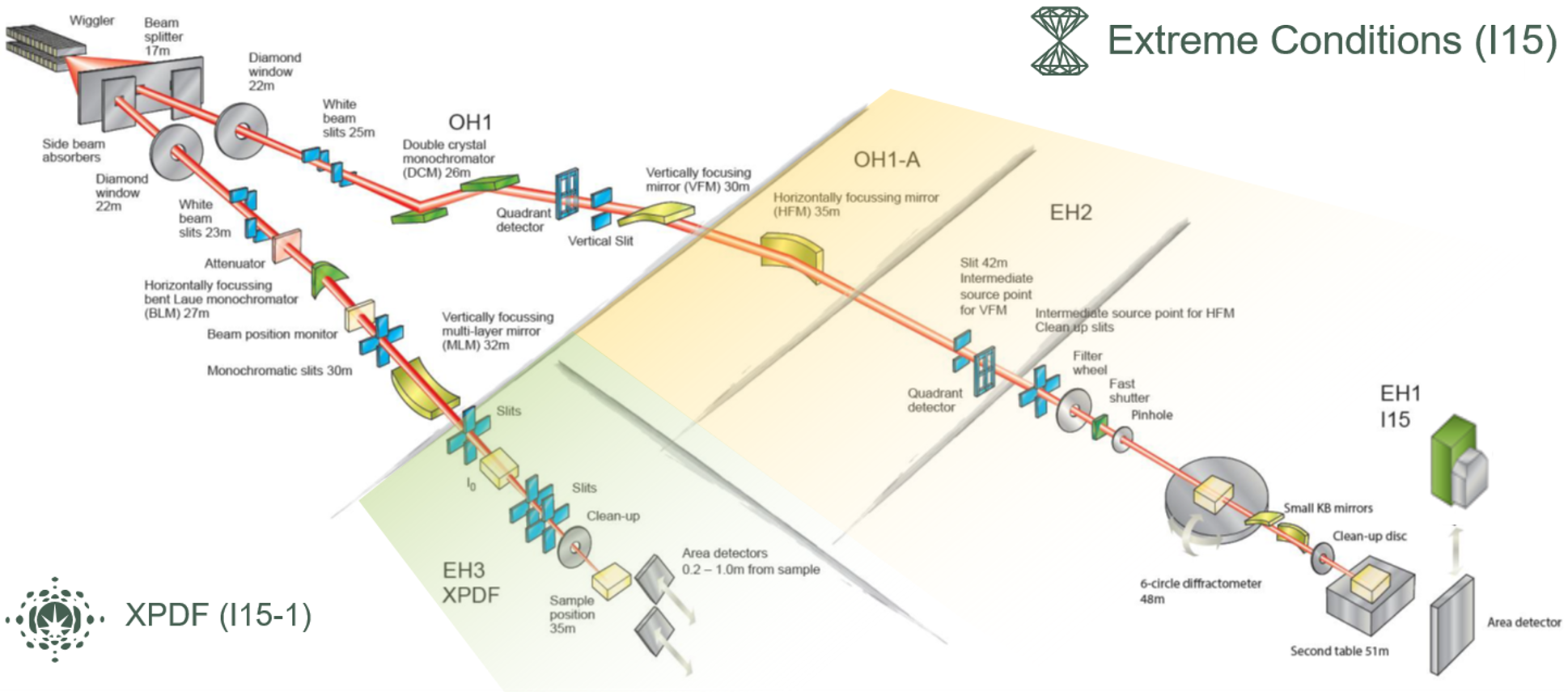

Main X-ray Optical Components of I15
|Si(111) double crystal monochromator (DCM)|| || |
Large Kirkpatrick-Baez mirrors
| || |
|Small Kirkpatrick-Baez mirror pair|| || |
