Automating crystal orientation? Sounds great!

A high throughput PhD
Joint PhD student Christian Burton with Aston University and his Diamond Supervisor Peter Docker, in conjunction with Notthingham Trent University, have been investigating ways to improve sample throughput at facilities such as Diamond. It is important for users to collect as much data as possible from their limited beamtime, and a diverse set of techniques has been developed to increase throughput in MX crystal handling. MX relies on the coordination of many complex, high-precision processes, both manual and mechanical, but advances in detector technology and X-ray optics mean that synchrotron-based MX can now benefit from new techniques.

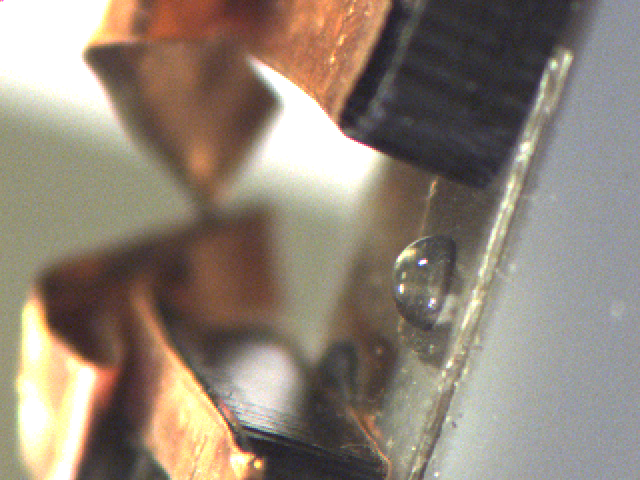

Figure 1: A drop of sample on the transducer.

To successfully determine the structure of a macromolecule using X-ray crystallography, a complete set of reflections (specifically-oriented scattered beams) has to be captured by a 2D detector. This is traditionally accomplished with a mechanical goniometer. In order to remove the need for manual adjustments, without relying on complex robotics, a team of researchers has developed an approach using acoustic handling, which has been shown to be safe for several types of protein crystal.

A tiny vortex
The acoustic on-chip goniometer is designed to work with crystals suspended in their native liquid, which offers them some protection against the X-ray beam and ensures a longer lifespan. It uses a surface acoustic wave transducer to create a vortex inside a drop of the sample placed on the chip. The vortex suspends a spinning protein crystal in the X-ray beam, allowing the collection of a complete set of reflections at random orientations. This technique is similar to the serial methods pioneered at XFEL (X-ray free-electron laser) sources, in which single detector collects images from thousands of randomly oriented crystals.

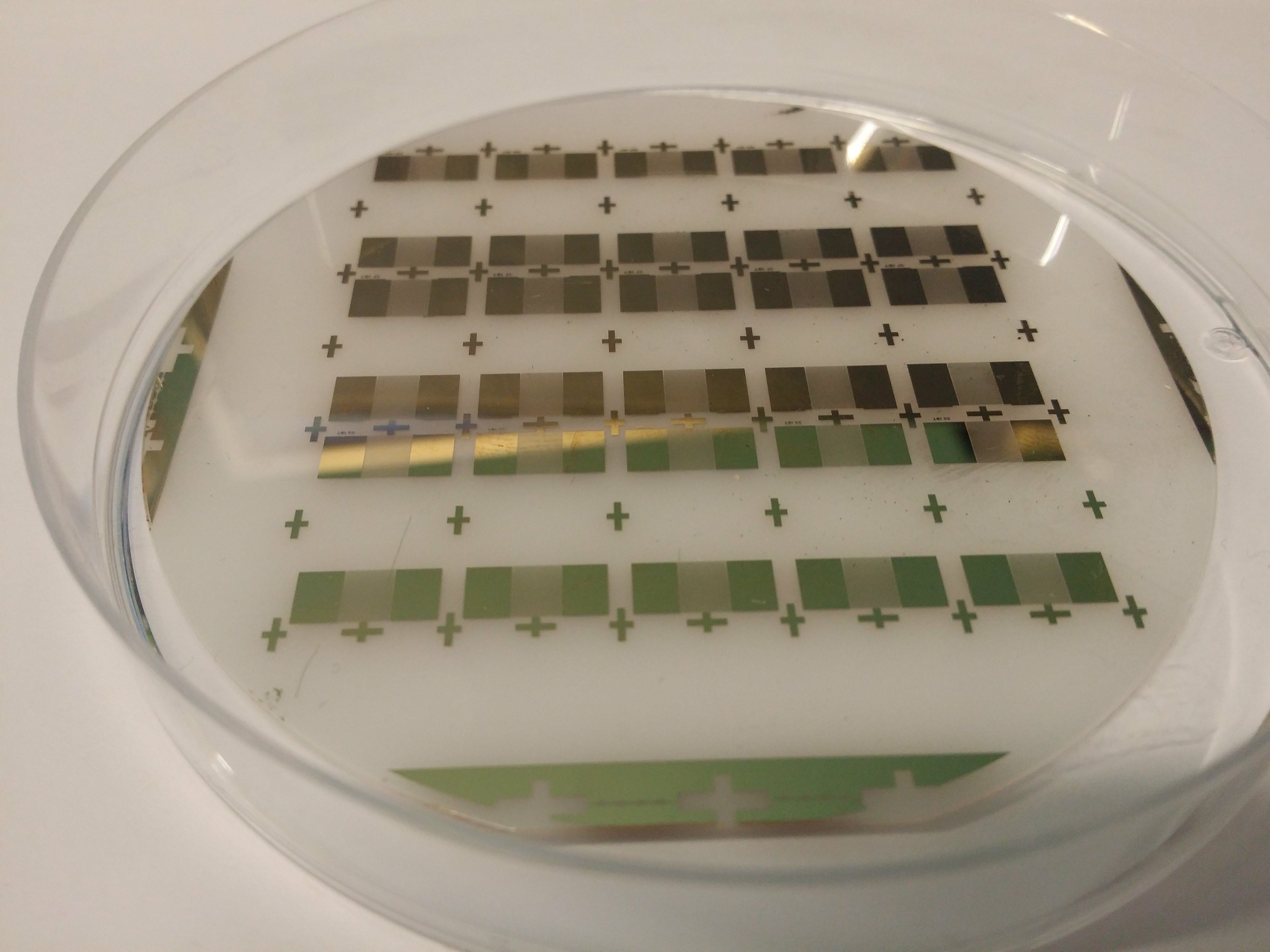

Figure 2: An uncut wafer patterned with surface acoustic transducers.

In this Standing Surface Acoustic Wave (SSAW) actuation system, the velocity of the samples within the drop is controlled via the amplitude of the signal waveform. For the experiments on Diamond’s Micofocus MX beamline (I24), a 2 µl drop of the sample (containing multiple crystals) was manually placed onto the chip immediately before data collection. Observations support the model of a central crystal spinning on the beam, with other crystals orbiting it. The results confirm that the on-chip goniometer is capable of producing useful structures from acoustically perturbed samples.

Moving forward
There is currently no software able to properly handle such a goniometer-based experiment, and the data were analysed using serial crystallography methods.

These experiments have demonstrated that on-chip crystal rotation is an efficient method for in situ room temperature collection of X-ray data for protein crystals. By achieving a high resolution structure, the device makes a significant stride in automated sample handling. The next stage is to incorporate microfluidics into the experimental design, with the ultimate aim of developing a full lab-on-a-chip system. As well as providing automated sample delivery without the need for large, expensive and complex robotics, a lab-on-a-chip system would be invaluable for use in sealed environments (e.g. for preventing evaporation), and for hazardous or delicate samples.

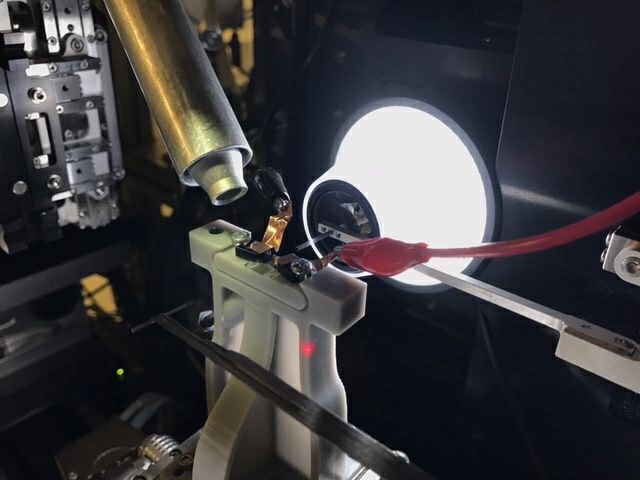

Figure 3: The chip in action on I24.

To find out more about the project, please contact Dr Pete Docker: [email protected].
