Tea Pot specifications |
Volumen ~5 L Since crystals, solid samples Base pressure ~10-9 mbar Max. pressure ~30 mbar 5-axis manipulator Sample transfer in vacuum Prevac PTS sample holders Temperature 150 - 1000K at UHV and 250 - 750K at near ambient pressure |

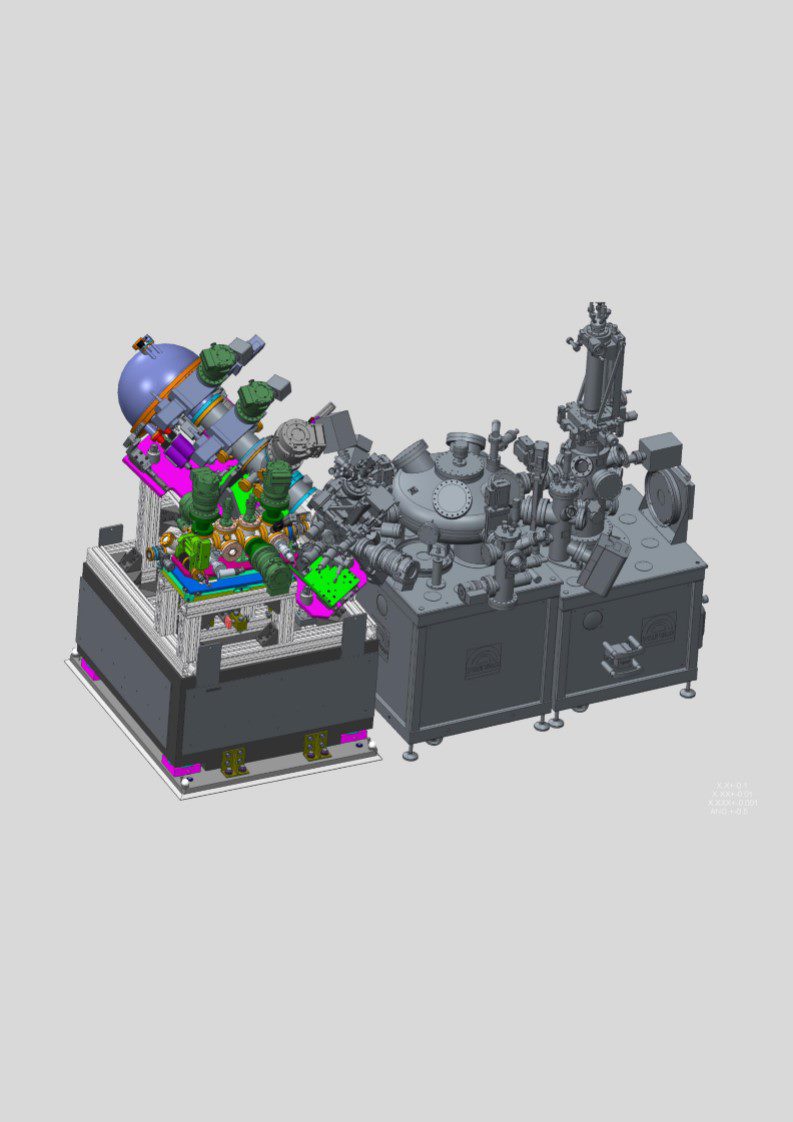

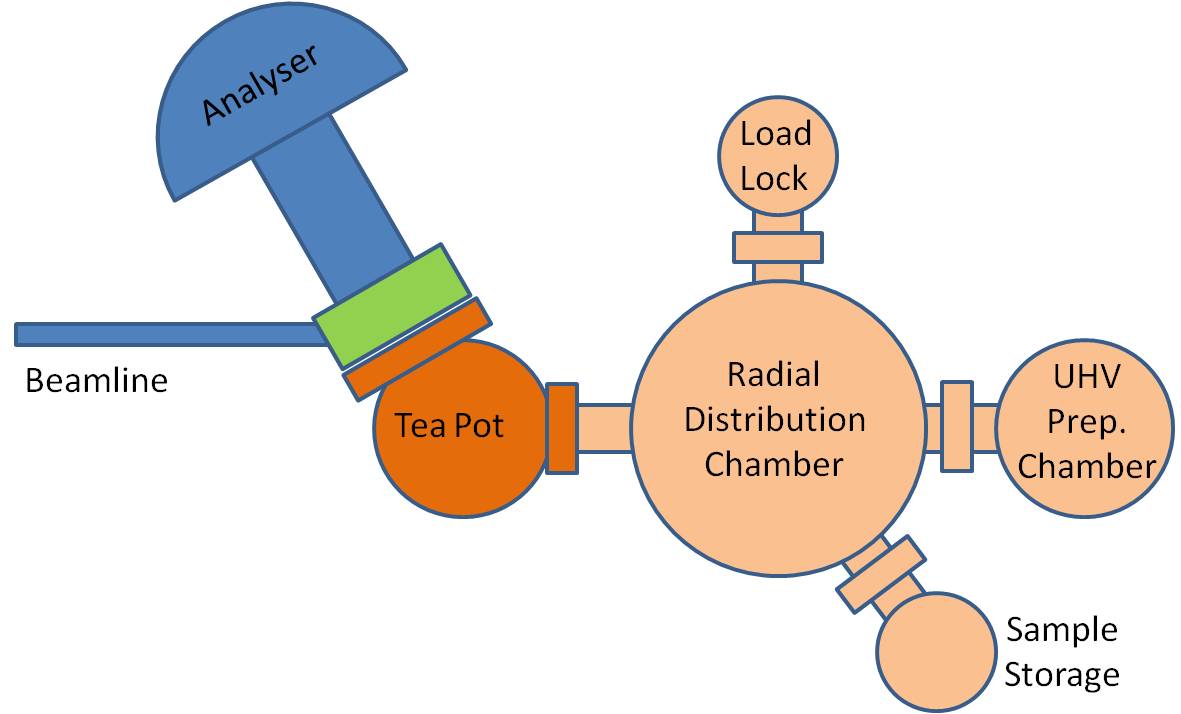

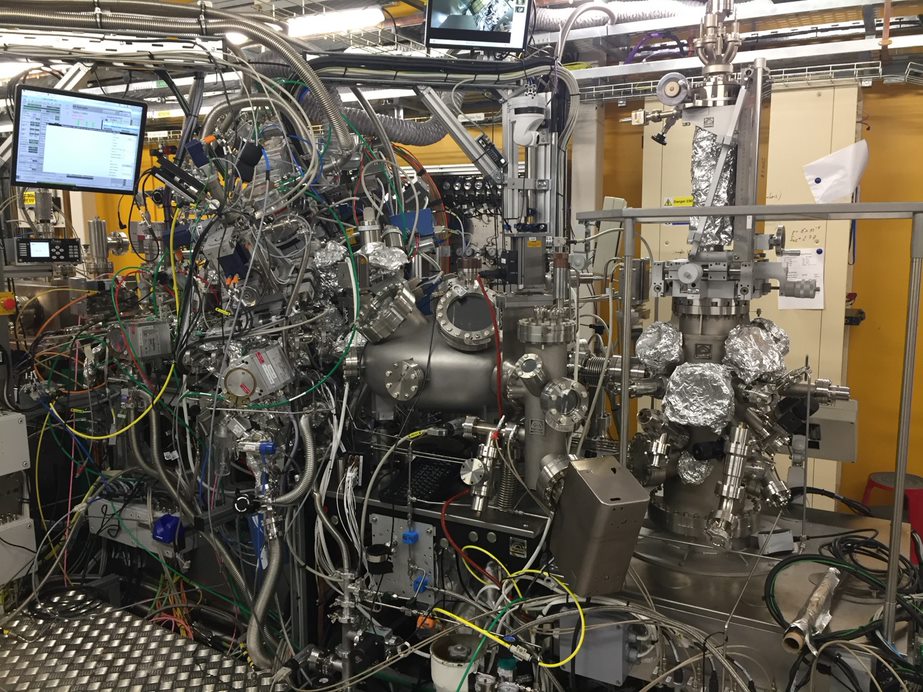

1a. Tea Pot + Radial Distribution Chamber + Preparation Chamber (2D and 3D models)
Prep Chamber specifications:
LEED
Ion gun
Evaporators (organic and metal)
User-supplied UHV-compatible instrumentation

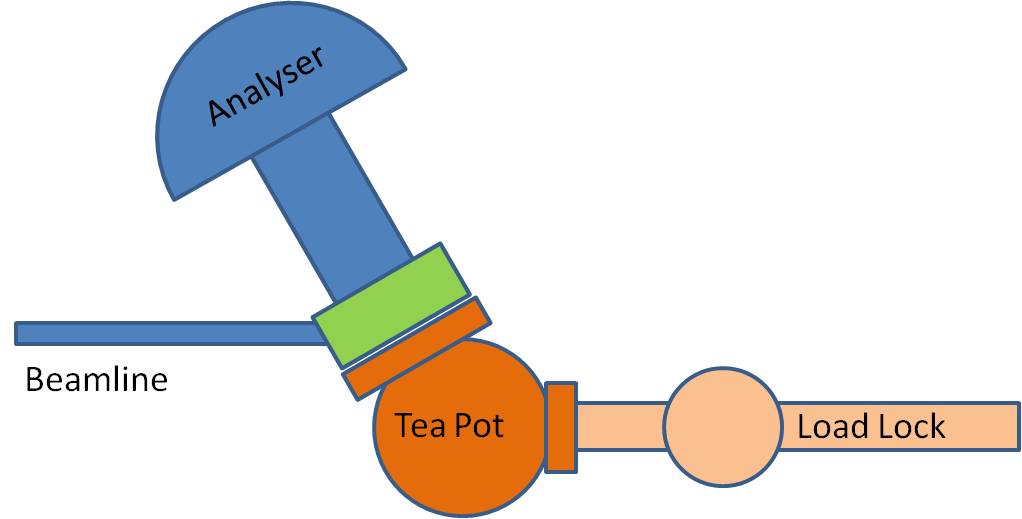

1b. Tea Pot + Entry Lock (2D model)
Load Lock specifications:
Straight transfer, no in-vacuum sample handling
Option for vacuum suitcase or glove box
Option for controlled environment (e.g. humidity)

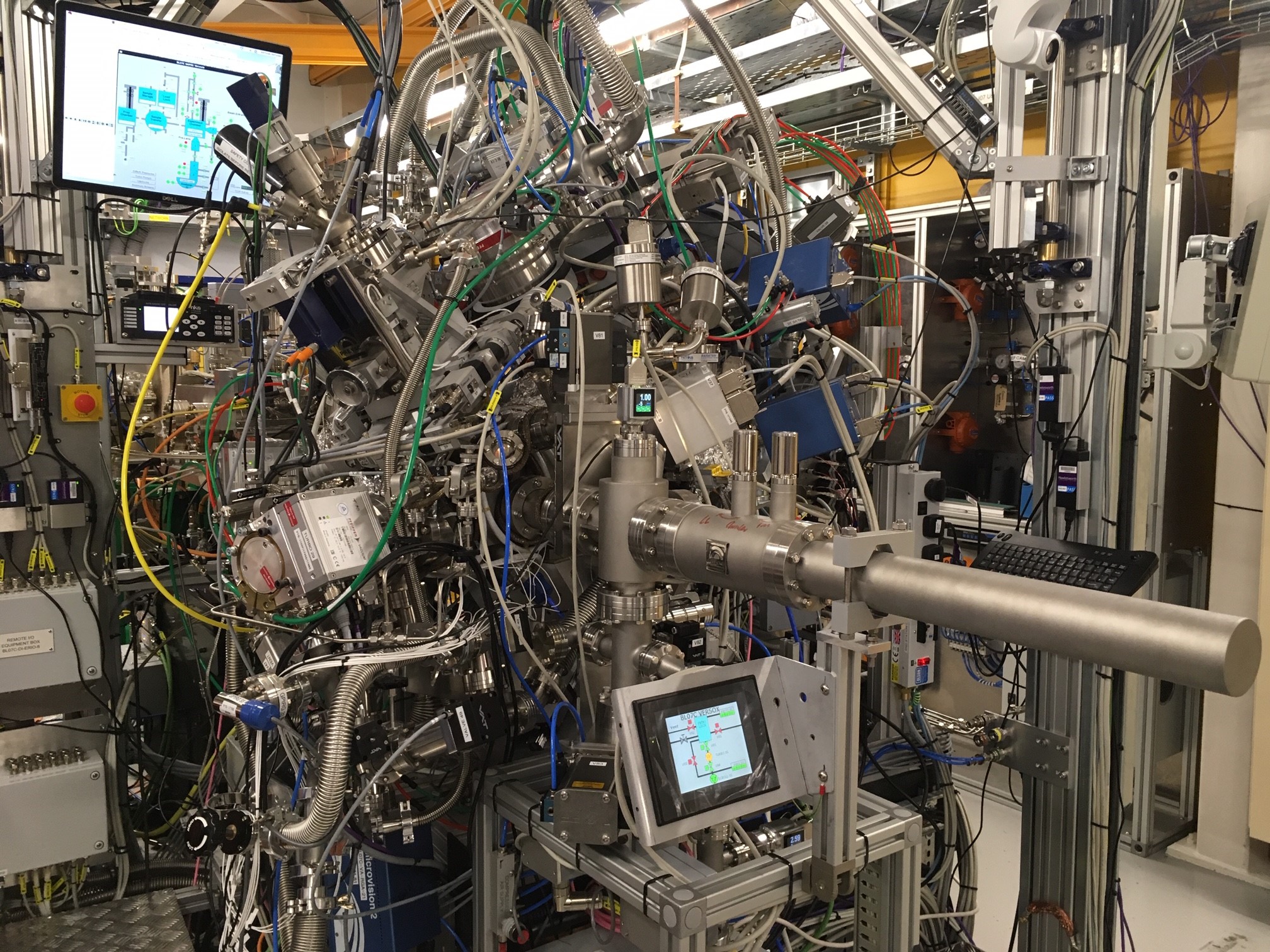

TPot and Load Loak end station
Tea Cup specifications: |
Volume 0.7 L Base pressure ~10-5 mbar Max. pressure ~ 30 mbar Lateral sample movement +/- 1 mm Sample change by venting cell Easy to modify for user demands |

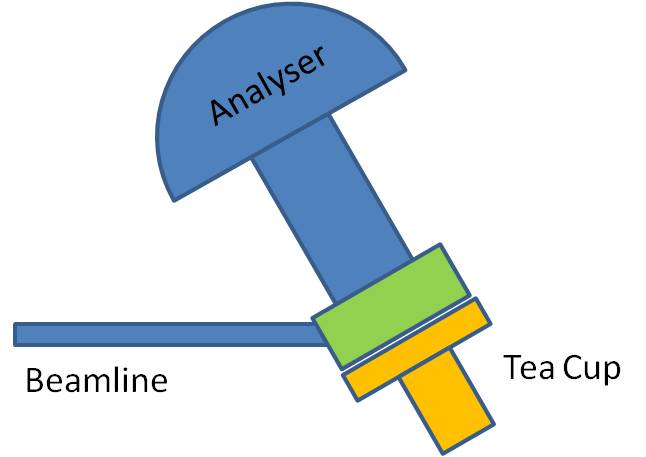

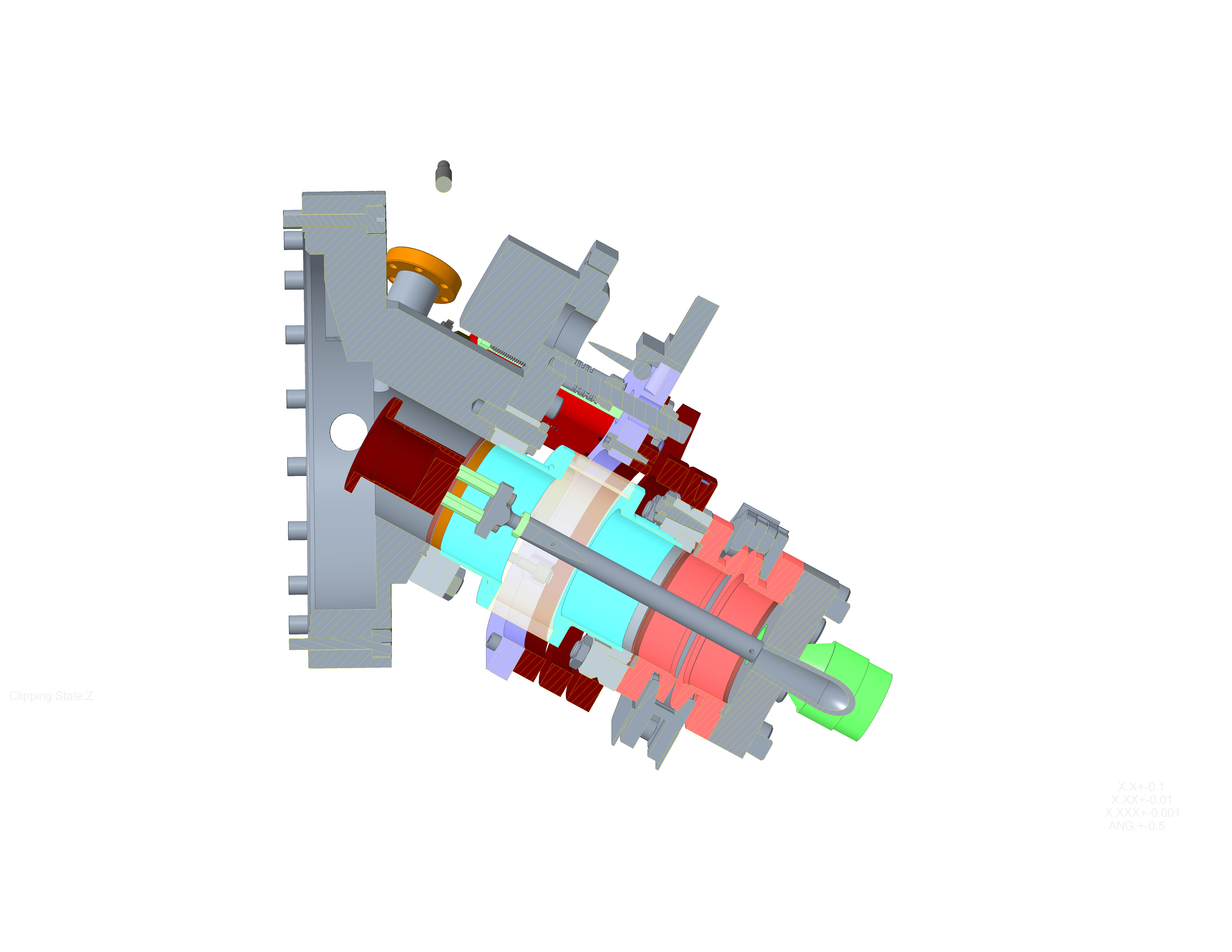

2D and 3D modes and TCup end station
