Equipment or Component | Comments |
---|---|
In Air Operation | Use of a nosecone limits the q-range available |
In Vacuum Operation | Sealed samples containers are needed to avoid evaporation. System vents to 0.2 mbar. |
Capillary Rack |
2mm polycarbonate and glass 18 positions in Mail In (capillary horizontal) 27 in Xenocs Rack (capillary vertical) |
Solids Rack |
6mm disc in Mail in holder 4 x 20mm, 5 x 10mm 16 x 5mm discs in Xenocs Holder |
Gel Holder | 8 x 4mm x 0.5, 1 and 2mm spacing |
Powder Holder | 15 x 6mm x 0.75mm spacing. Kapton Disks hold sample in place. |
Liquid Capillary Flow Cell | One sample position flow set up, manual or automatic sample injection possible. |
Peltier Temperature Stage | 5-80 ºC Range ±0.25 precission, Solids/Capillaries/Gels holders available. For 1.5 & 2.0mm capillaries only |

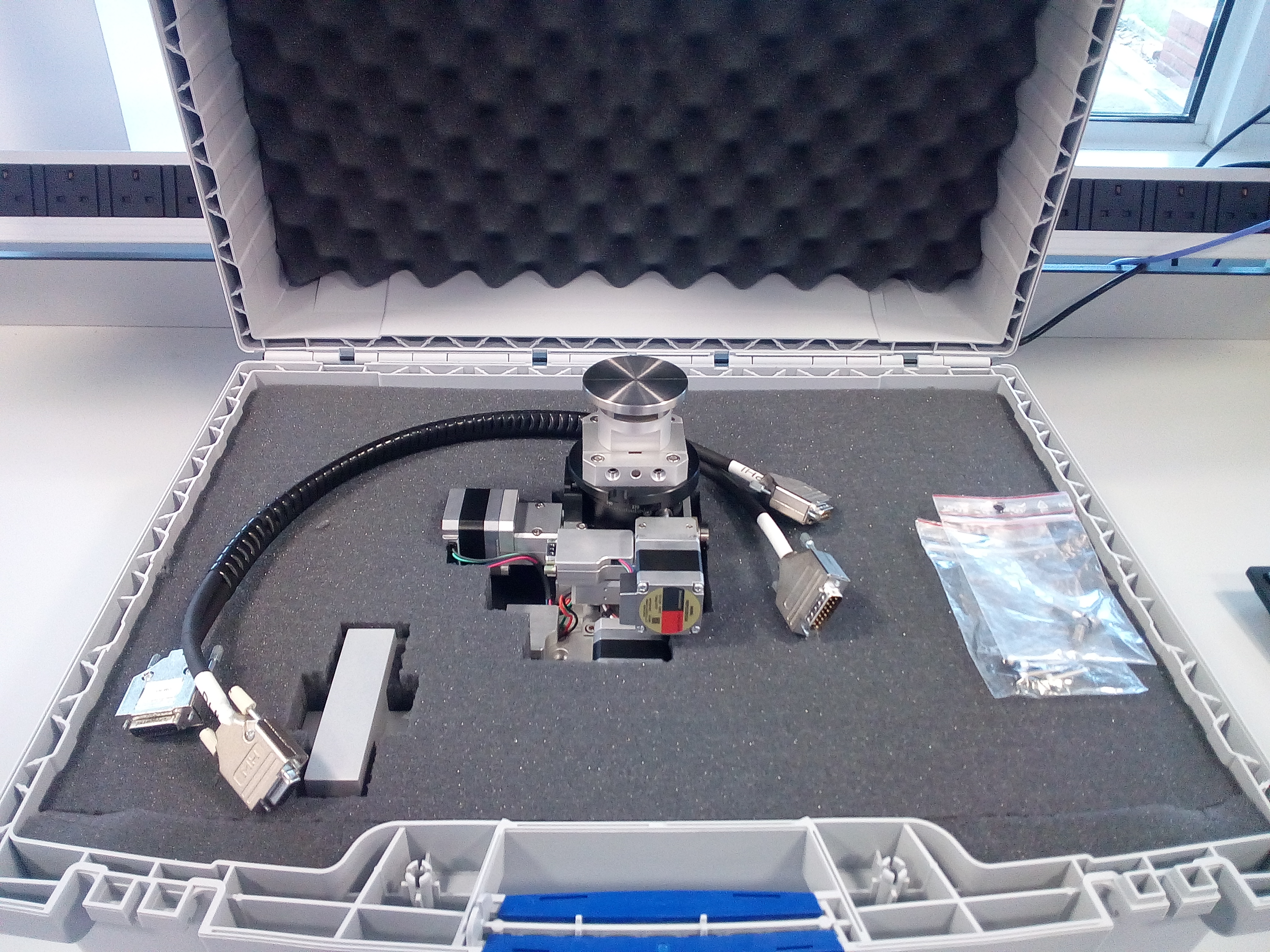

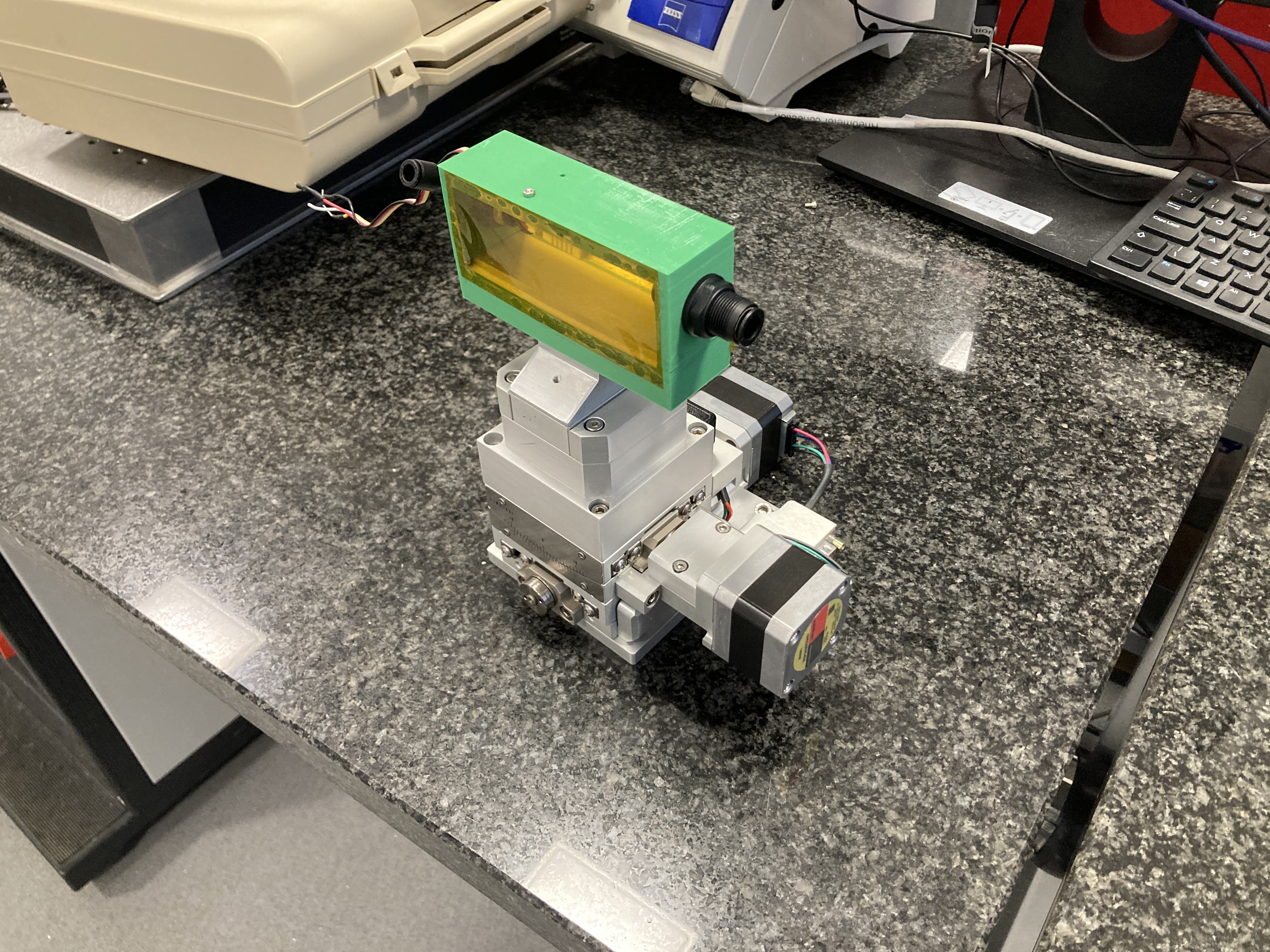

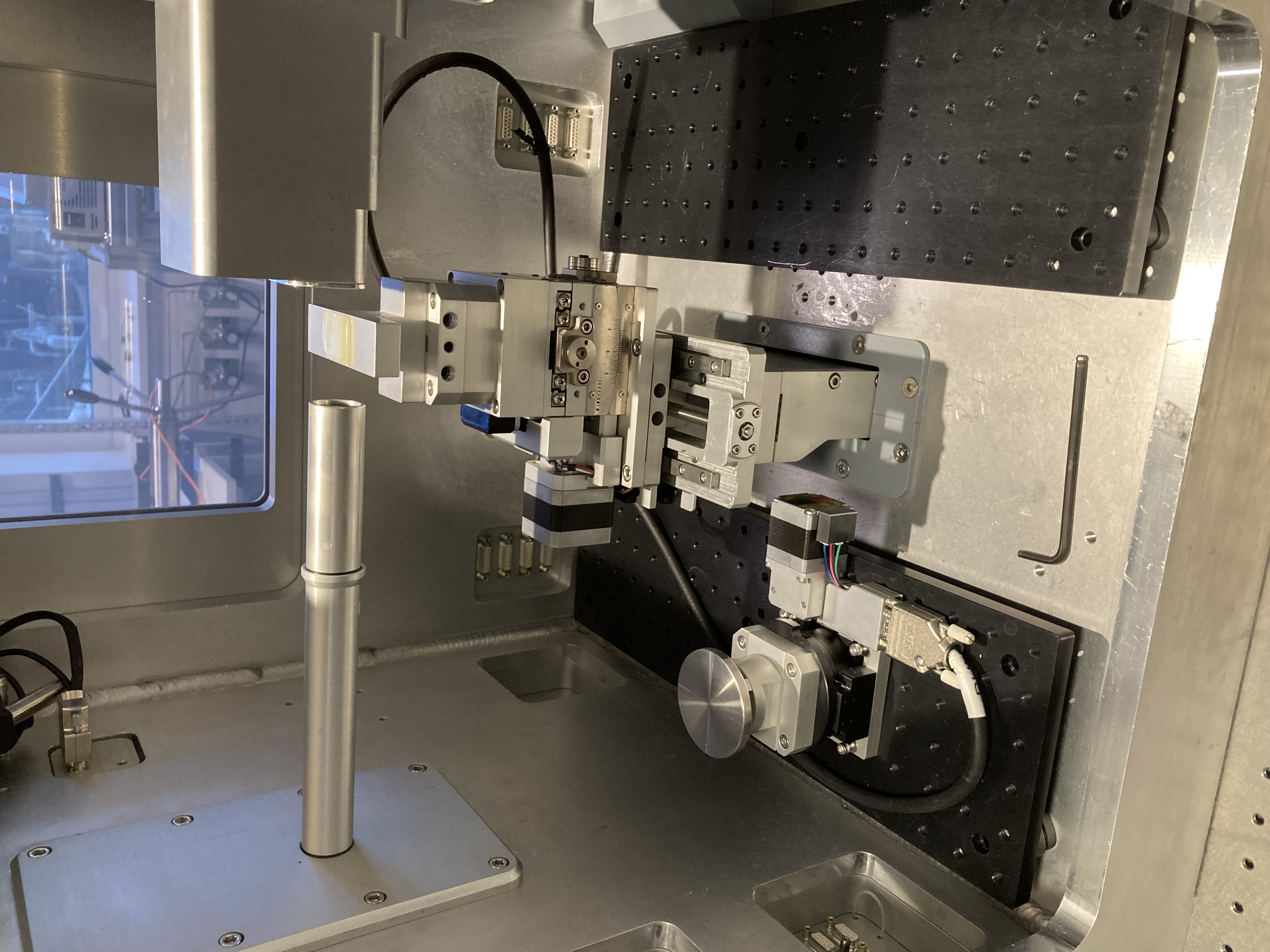

2 or 3 Axis GiSAXS Stage |
2 Axis can support 3 samples, 3 Axis supports only one sample. ±3°; precision= 0.002°. Statics or Peltier |
Linkam DSC and Capillary cell |
-85--650 ºC Range. in vaccum only temprature data not integrated. |
P-jump cell | P-Jump Cell (0 to 120°C, 1 to 5000 bar). Mo source only. Very long exposures required. Please contact beamline team before submitting |
Linkam capillary stage (-80 to 550°C) |
DAQ not integrated - therefore difficulties with time-coreallation of SAXS images with temeprature ramps. Aquisitions are slow even with the MetalJet source. Please contact beamline team before submitting |
Last Updated 1/12/22
