Welcome to B22

Update on B22 at January 2021 for potential AP28 Experiments

In light of the current COVID restrictions and Diamond operational way, we would ask all users planning to apply for beamtime on B22 to get in touch with a member of the beamline staff to discuss feasibility before submitting a proposals. Whilst we will make every effort to facilitate as many experiments as possible, realistically some may be difficult to implement because of their challenging nature, or incompatibility with remote/limited user access.

B22: Multimode InfraRed Imaging And Microspectroscopy (MIRIAM)

Infrared (IR) Micro-Spectroscopy is a quantitative analytical and non-destructive technique which has undergone a renaissance since Synchrotron Radiation (SR) has been used as highly brilliant source. In fact, the SR microprobe allows for the highest spatial resolution optically attainable, together with the high molecular sensitivity typical of IR absorption spectroscopy. In addition, SR has a high degree of optical polarization and benefits from an intrinsic pulse structure, useful for specific experimental studies.

The IR radiation from Diamond available at the MIRIAM beamline spans the largest IR spectral range – extending from the near-IR up to the far-IR (or THz) region - and is 100-1000 times brighter in the mid-far-IR than any other conventional broadband IR source. The recent optimization of the Coherent Synchrotron Radiation has expanded the MIRIAM experimental capability for absorption spectroscopy specifically in the “THz gap” domain.

Fourier Transform IR (FTIR) spectromicroscopy is an extremely effective probe for revealing IR-active vibrational modes of molecular components at the microscopic scale. Using the high brightness SR from Diamond, the MIRIAM beamline provides FTIR spectromicroscopy with a signal-to-noise ratio unreachable by other broadband sources at diffraction limited spatial resolution in confocal geometry (as fine as 3x3 to 15x15 µm2 for e.g. scanning IR microscopy) in the IR fingerprint region. The latest upgrade to the MIRIAM beamline is the coupling of Focal Plane Array (FPA) detector with the SRIR, which is now available for IR imaging in full field mode.

The B22 team with Dr Josep Sulé-Suso, Keele University, studying biomarkers in cells.
The B22 team with Dr Josep Sulé-Suso, Keele University, studying biomarkers in cells.
B22 microscope
B22 microscope
Principal Beamline Scientist, Dr Gianfelice Cinque
Principal Beamline Scientist, Dr Gianfelice Cinque
B22 - MIRIAM: Multimode InfraRed Imaging And Microspectroscopy
B22 - MIRIAM: Multimode InfraRed Imaging And Microspectroscopy

Dedicated call for nanoscale IR spectroscopy proposals 2019 – closed

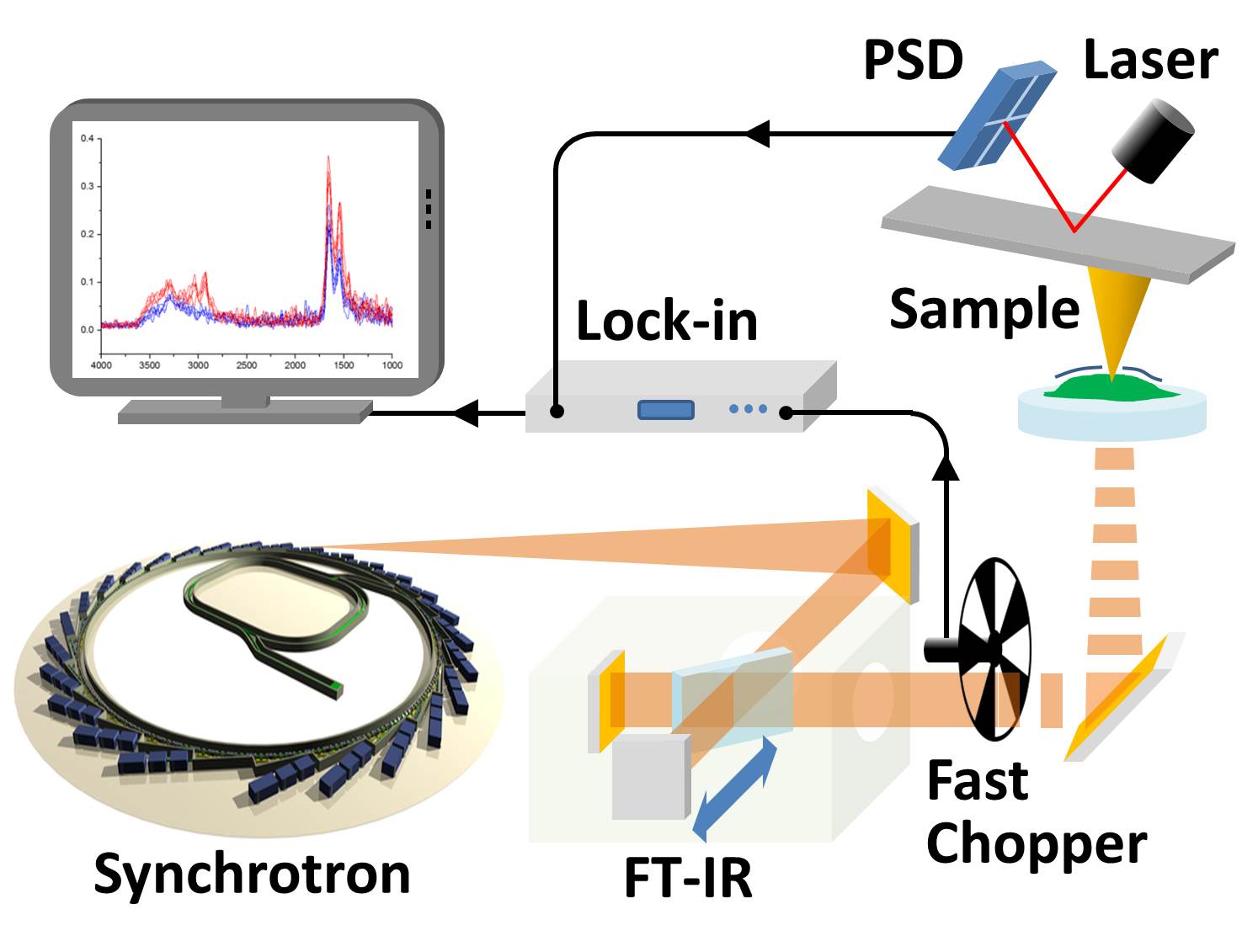

MIRIAM beamline B22 is continuing development of its near-field IR microscope (RE-AFMIR) for user research. The 4th call for commissioning/collaborative proposals is now closed.
Please note the near-field instrument is not available for proposals through the regular call - all RE-AFMIR proposals should go through the dedicated call.



For more information about and scientific/technical questions about such experiments please contact gianfelice.cinque@diamond.ac.uk, mark.frogley@diamond.ac.uk or ioannis.lekkas@diamond.ac.uk



/p>

Publication Notice

Users publishing work containing synchrotron data from Diamond Light Source should ensure they acknowledge Diamond and any of its personnel in any published material that results from use of the Diamond facilities. The following statement should always be included in any publications:

"We thank Diamond Light Source for access to the MIRIAM beamline, B22, (proposal number) that contributed to the results presented here."


For further information please refer to the User Guide.
