A new strategy to block HIV's chemokine receptor CCR5

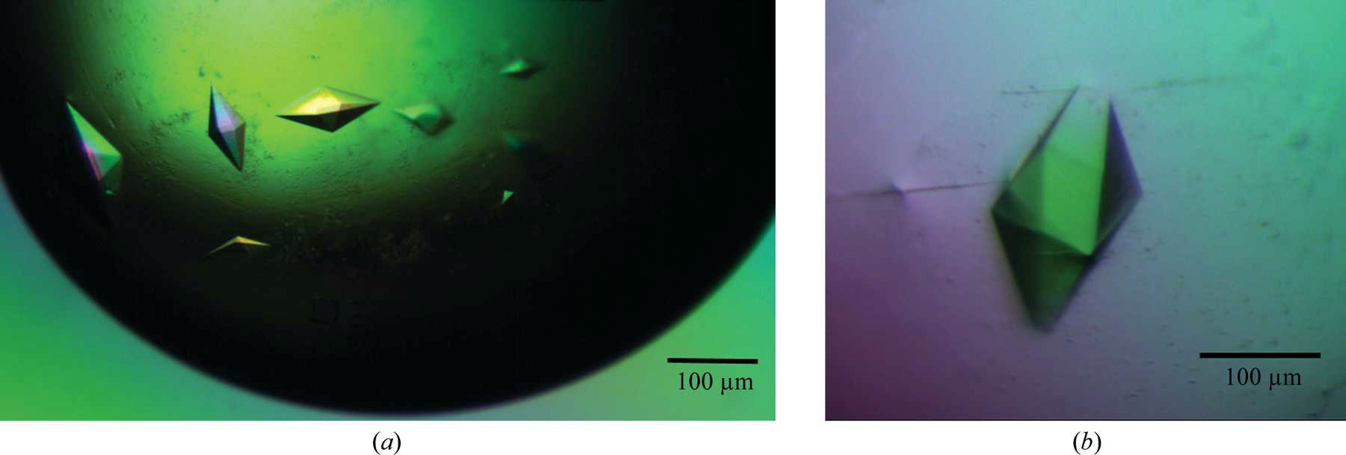

Crystals of RoAb13 complexed with (a) the 31 peptide and (b) the PIYDIN peptide.

AIDS is a global pandemic with millions of people infected with HIV. The chemokine receptor CCR5 is one of the main entry co-receptors for HIV, and it needs to be blocked to prevent infection. It is, therefore, an important therapeutic target. 

The aim of this project was to apply a new strategy to block CCR5 by designing synthetic peptides mimicking the part of CCR5 to which an antibody specific to it attaches itself (an epitope). This will stimulate the production of antibodies against CCR5. The most important part of the CCR5 for our purpose is the antibody-binding epitope in the N terminal domain. Prior research identifies PIYDIN as the core portion. Our immediate aim in this project was, therefore, to determine the structure of the epitope bound to a known anti-CCR5 antibody (RoAb13). 

In short, the key insights into the 3D structures of the CCR5 N-terminal domain and how it binds to an anti-CCR5 antibody provide knowledge that will inform the design of better peptide analogues for use as immunogens in vivo.

Simply put, the overall aim of this research is to find a means of blocking the HIV infection (the chemokine receptor CCR5), with a view to the development of a successful, long-lived, low-toxicity method to prevent HIV infection. 

The I04 beamline is a favourite among the user groups in Imperial College's Diamond BAG. The tuneable wavelength and microfocus capability make it an ideal beamline for experimental phasing and screening a wide variety of crystals. Since we collected the data featured in this publication, an Eiger detector has been installed at I04, making it even more attractive to our users. 

For this particular data collection, Diamond's high-intensity monochromatic beam was important to this work. We chose X-ray diffraction as the most applicable probe of the structure of matter, versus Nuclear Magnetic Resonance (NMR) or neutrons or electrons, for the precise means of viewing the binding of the peptide to the antibody.

Synthetic peptides consisting of epitope sequences of the CCR5, and which bind to the antibody, were co-crystallised with the antibody. These antibody-peptide complex crystal structures showed us the antibody-epitope interactions. 

In terms of our procedure in this research, we have determined two crystal structures. These show that pure PIYDIN binds to the antibody (PDB code 7nw3) and also very similarly when the PIYDIN is in the long (31 amino acids) peptide (PDB code 7njz). This polypeptide is the sequence in the ccr5 N terminal domain. 

These two crystal structures taken together are an important demonstration of both the scientific reproducibility between the two and also their specific structure and function relevance.

The next steps will be to harness the structures which we have determined now, in order to seek an improved synthetic peptide binder. We will then determine this structure, i.e. with the synthetic peptide bound, and this will involve more experiments at Diamond. This improved peptide objective, thanks to its presumably better binding to the antibody, may well allow a higher resolution diffraction study

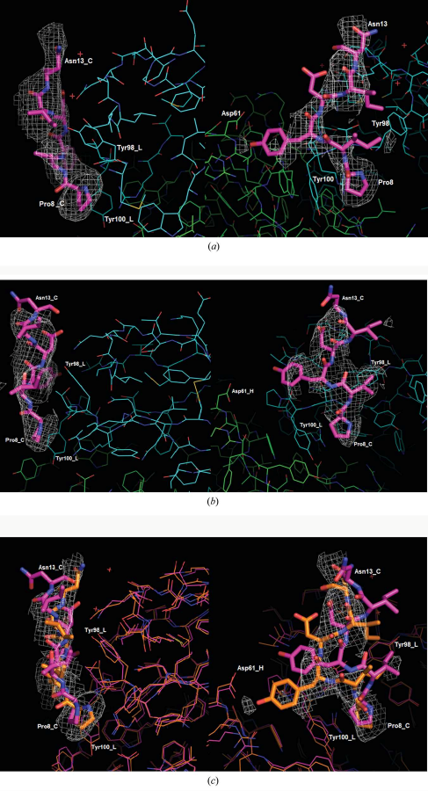

Omit electron-density maps are shown for (a) the PIYDIN residues of the 31-peptide study and (b) the PIYDIN-only study; orthogonal views are contoured at 2σ in (a) and 2.7σ in (b). (c) shows the overlay of both with the 31-peptide omit map at 2σ; the peptide does not have exactly the same placement but is very similar.

Diamond is certainly crucial to our research at Imperial College. Over 20 research groups at Imperial College regularly use Diamond as part of a BAG. Within the two year cycle of our BAG, Imperial College is typically allocated close to 80 sessions on the MX beamlines. In the last five years, we have screened nearly 13500 crystals at Diamond and collected over 4300 full datasets. This has resulted in the deposition of over 120 structures in the PDB and the publication of over 50 research papers in peer-reviewed journals.  

We are very fortunate to have such a synchrotron facility at our disposal, and the wonderful beamline and administrative staff that we interact with most are always so accommodating. I (Marc Morgan) have been fortunate to use all of the MX beamlines as well as the XChem laboratory over some years now, and of course, I have formed friendships with some of the staff. I even know a couple of beamline scientists from the days when we were all at the Laboratory of Molecular Biophysics in Oxford, headed by Prof Dame Louise Johnson, who was also Director of Life Sciences at Diamond.  

I am always amazed at how the MX beamlines are constantly upgraded with the user in mind, and this is only possible through great consultation between Diamond and its users. I am personally part of the XChem Superuser group, and as the main contact on the Imperial BAG, I am regularly consulted and asked to provide samples to test new features and capabilities on the beamlines.  

In summary, we regularly and frequently use Diamond's beamlines, for which we are very grateful, and heartily thank all the staff at Diamond involved in establishing such smooth running measurements for us. In addition, we highlight the excellent data processing pipeline and the archiving of all the raw data at the Atlas data store of the Rutherford Appleton Laboratory, which we find invaluable for returning, sometimes multiple times as in this study, for reanalyses to optimise the final protein model.

John Helliwell was heavily involved in defining Diamond Light Source in the MX beamlines' scoping and overall, as CCLRC Director of Synchrotron Radiation Science. The latter included, formally, Chairing the Research Councils' Interface Committee to the Diamond Project Team in the early 2000s. Prior to that, he was the UK's representative to the European Synchrotron Radiation Facility (ESRF) Council for many years, as well as Chair of the ESRF Science Advisory Committee, and so the foundations of Diamond based on the ESRF as the first of the third generation SR sources, are embedded in many details of Diamond. John Helliwell has enthusiastically supported the Diamond II proposal in his recent Letter of Support for the future MX beamlines.

To find out more about the I04 beamline or discuss potential applications, please contact Principal Beamline Scientist Ralf Flaig: Ralf.Flaig@diamond.ac.uk.
