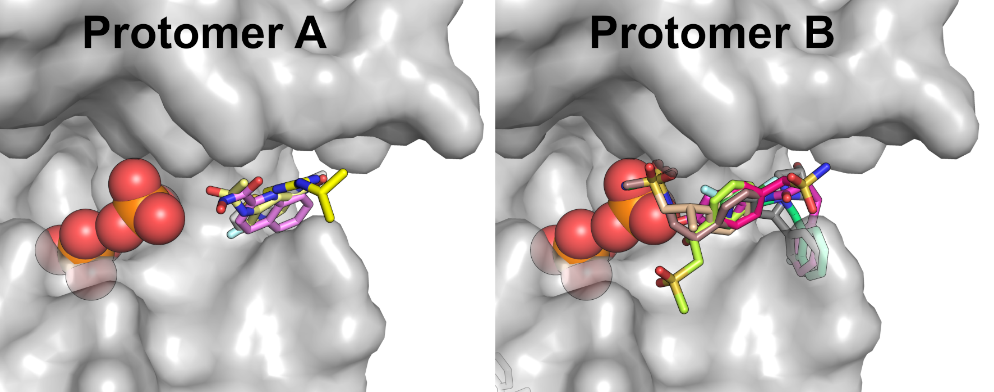

Nucleotide site for protomer A and protomer B (the phosphates are present as a component of the crystallization condition)

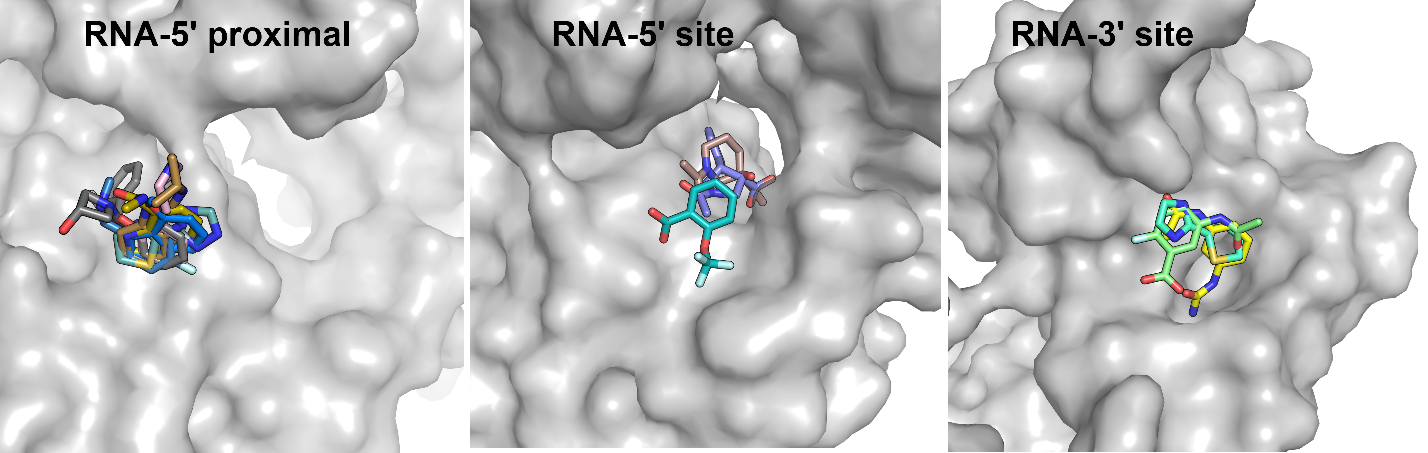

Three fragment clusters were found in the RNA binding channel, one close to the 5’ end, one within the modelled RNA at the 5’ end and one close to the 3’ end.

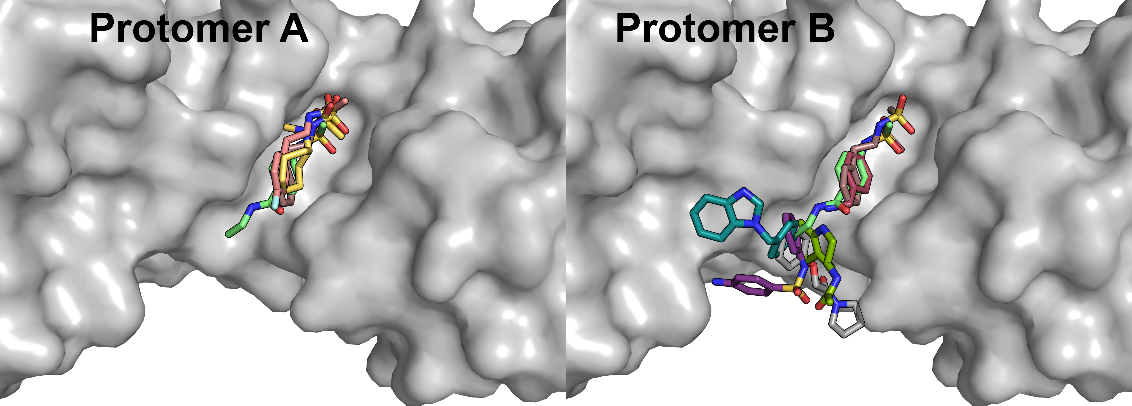

A prominent potential allosteric site is formed in a cleft between the 1A domain and the Zinc domain, hits were found in a similar pose for protomer A and protomer B.
