Principal Beamline Scientist:
Georg Held
Tel: +44 (0) 1235 778480
E-mail: [email protected]
Email: [email protected]
Tel: +44 (0)1235 778290

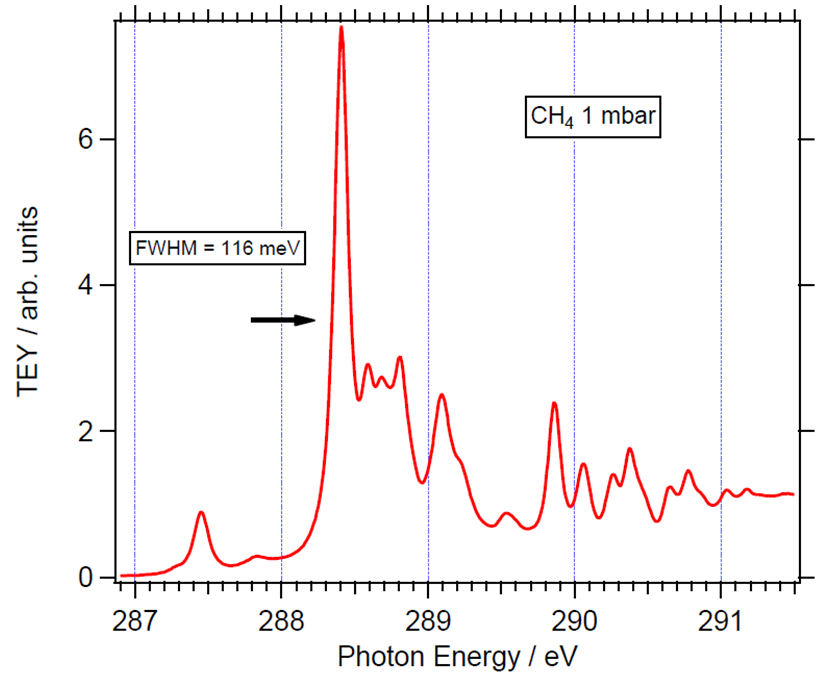

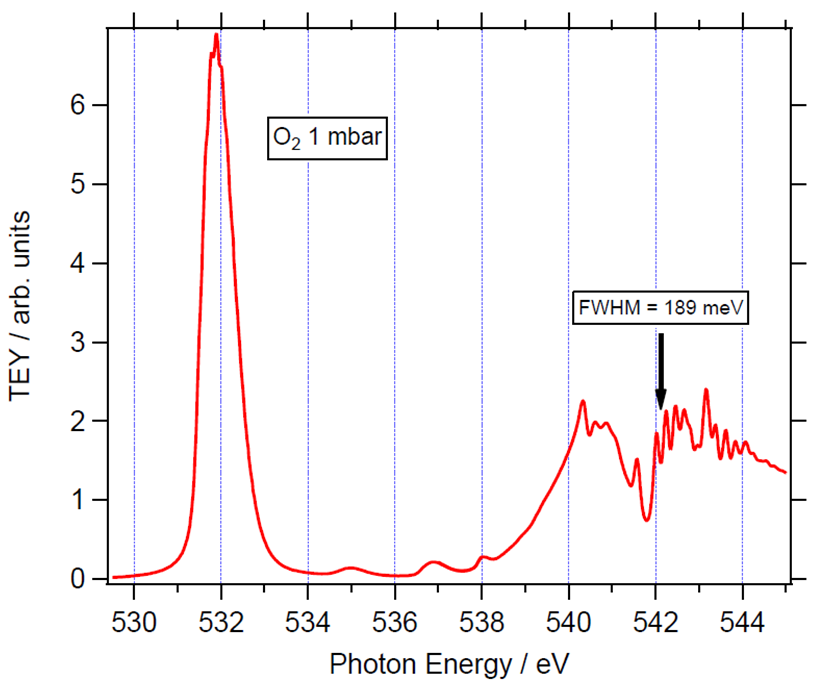

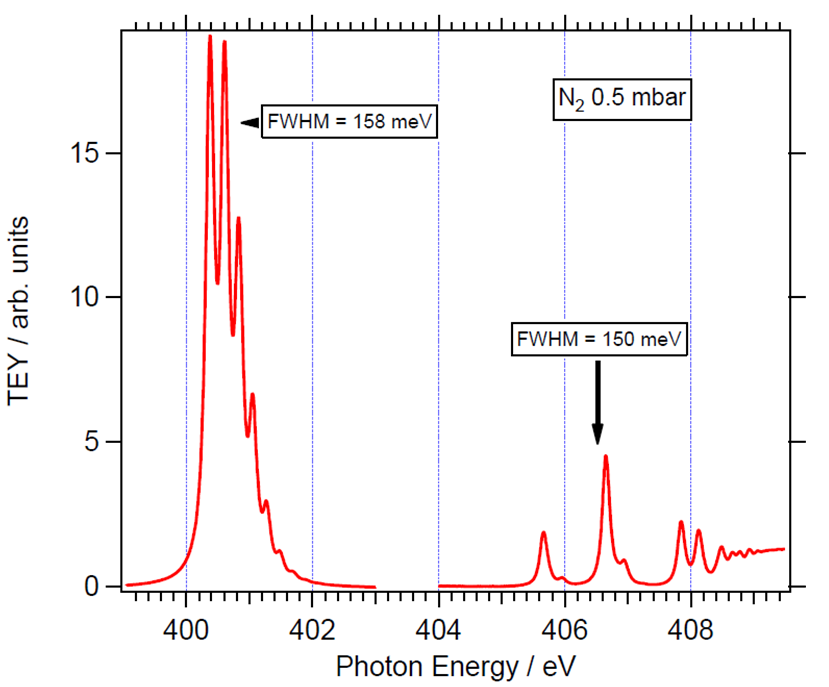

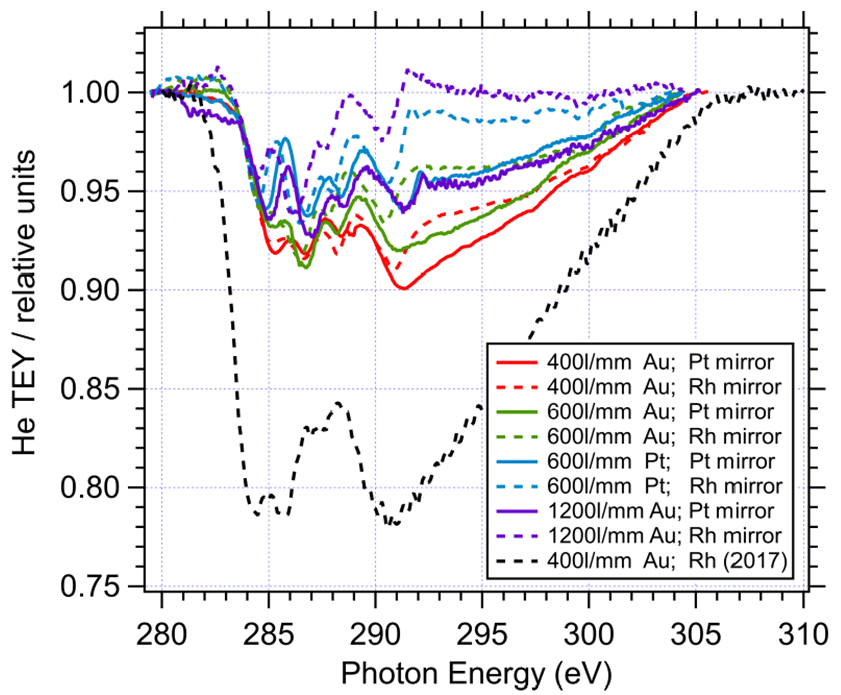

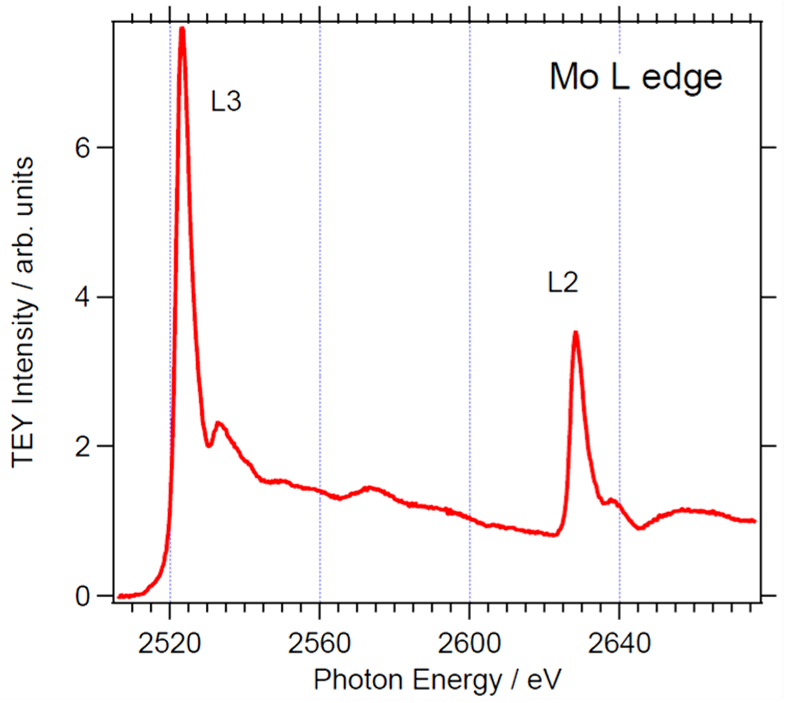

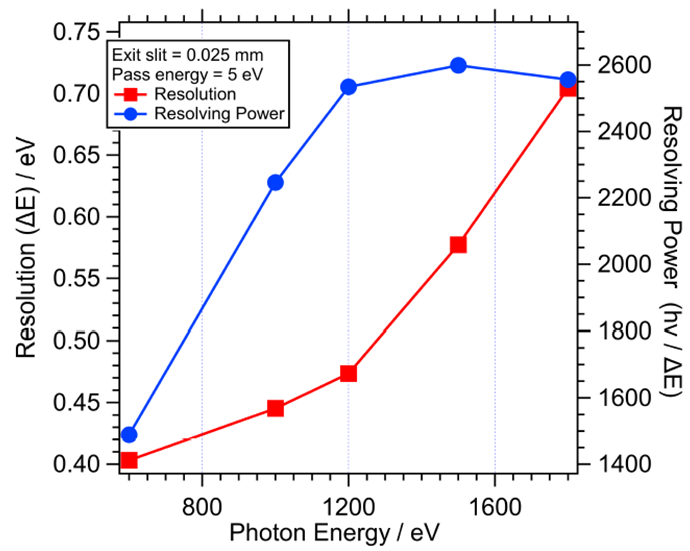

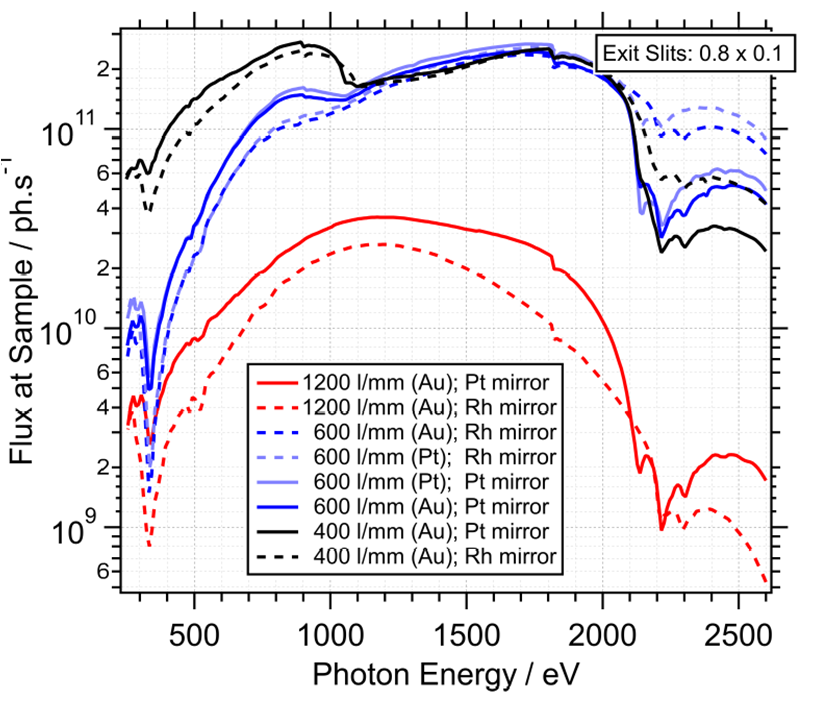

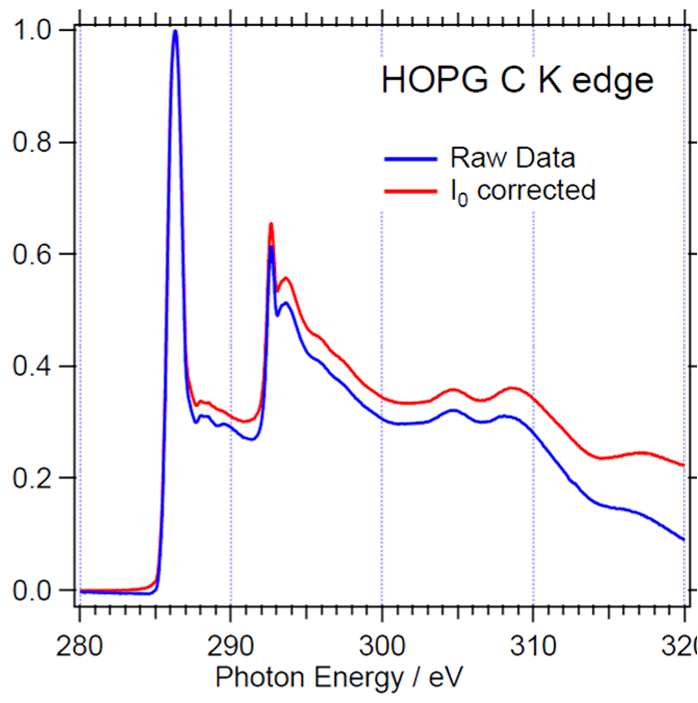

The transmission curves of the beamline (left figure) have been measured for all combinations of cPGM mirrors and gratings and the photon flux was measured using a photodiode at the sample position. The photon flux for the beamline transmission in the energy range of the carbon K-edge was measured through total electron yield (TEY) from He gas in the end station (right figure).

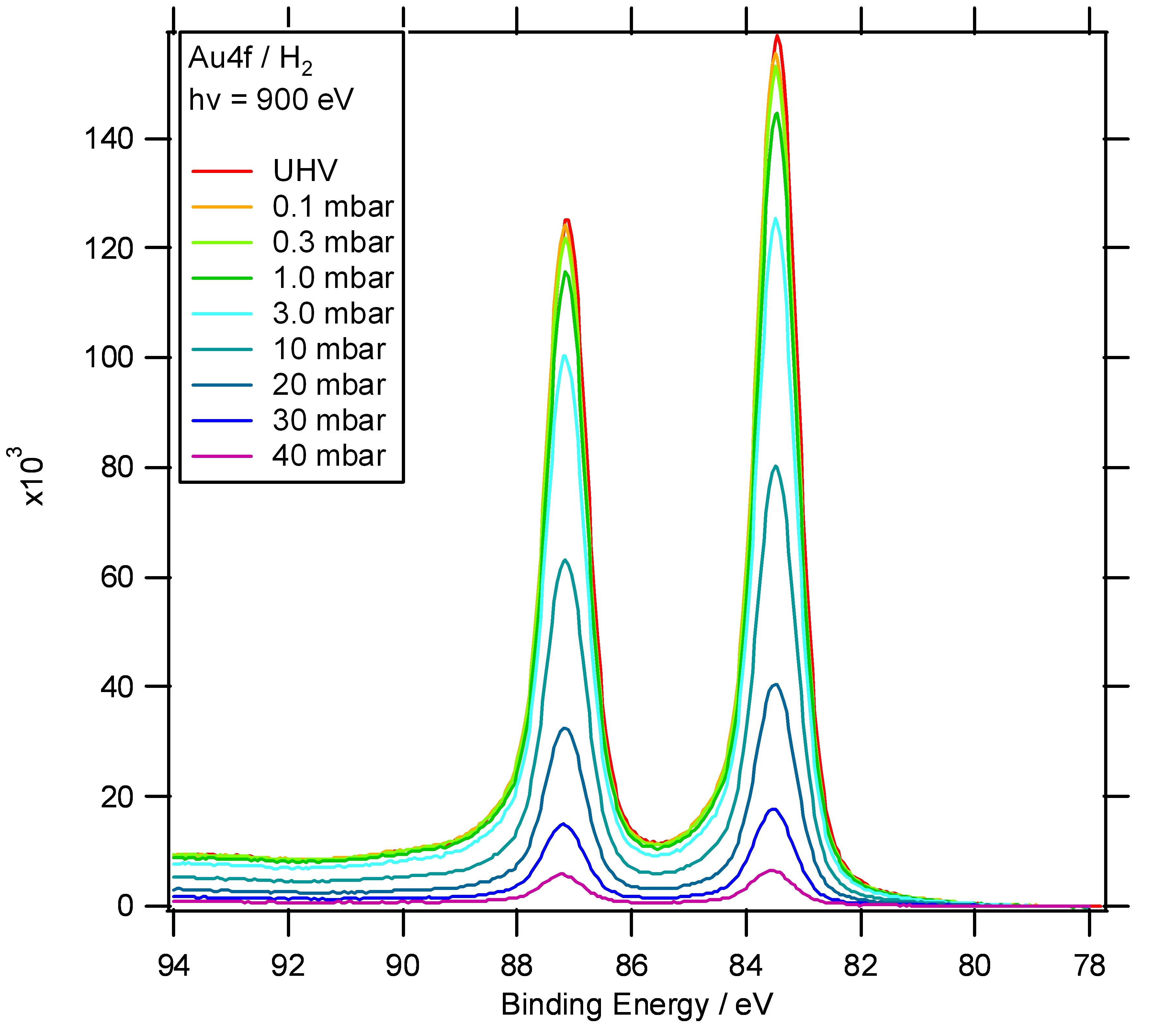

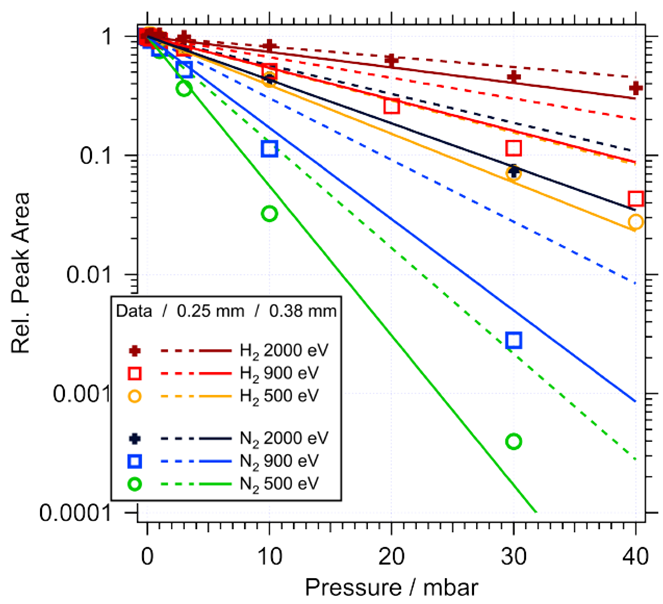

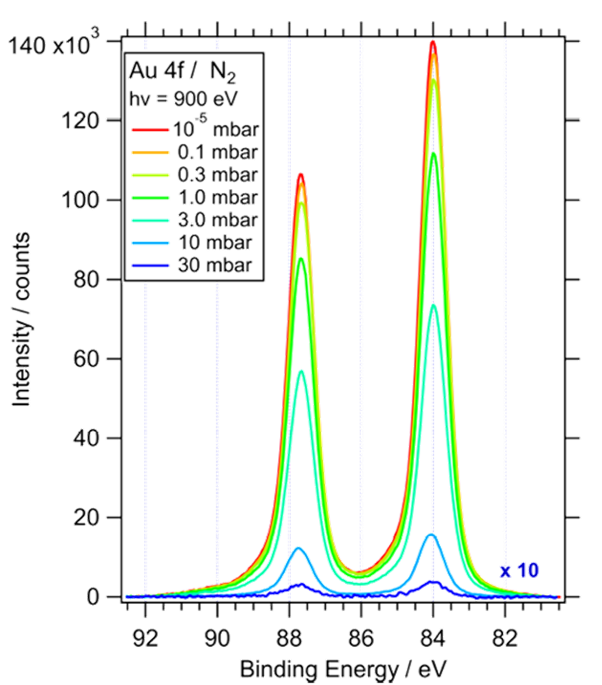

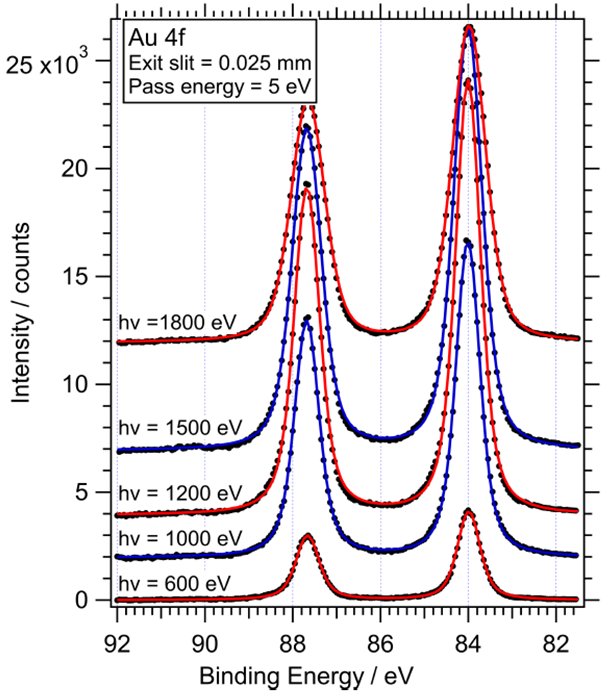

Au 4f spectra (left, middle) from a sputtered foil were recorded at different N2 and H2 pressures between 10-5 and 30/40 mbar (photon energy = 900 eV; exit slit = 0.05 mm; pass energy = 20 eV). Au 4f XPS peak intensity (right) as a function of N2 and H2 pressure for different photon energies. Symbols: integrated peak area of the measured Au 4f signal; dashed/solid lines: model calculation for photoelectron path length of 0.25 / 0.38 mm.

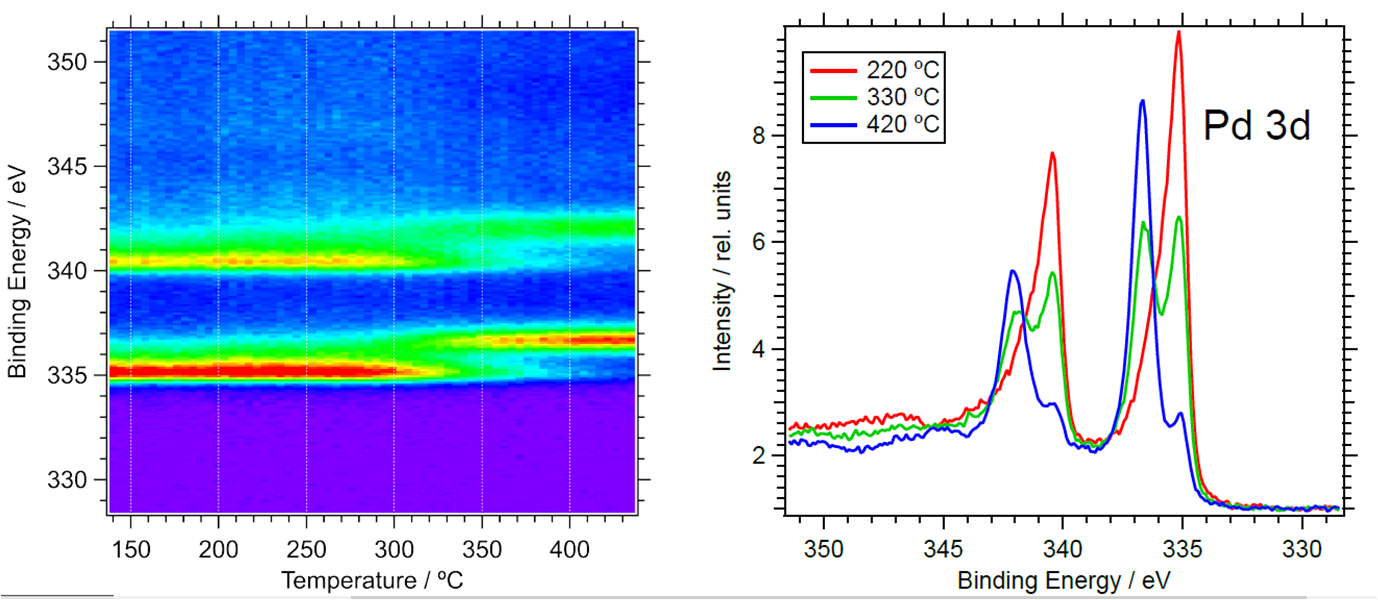

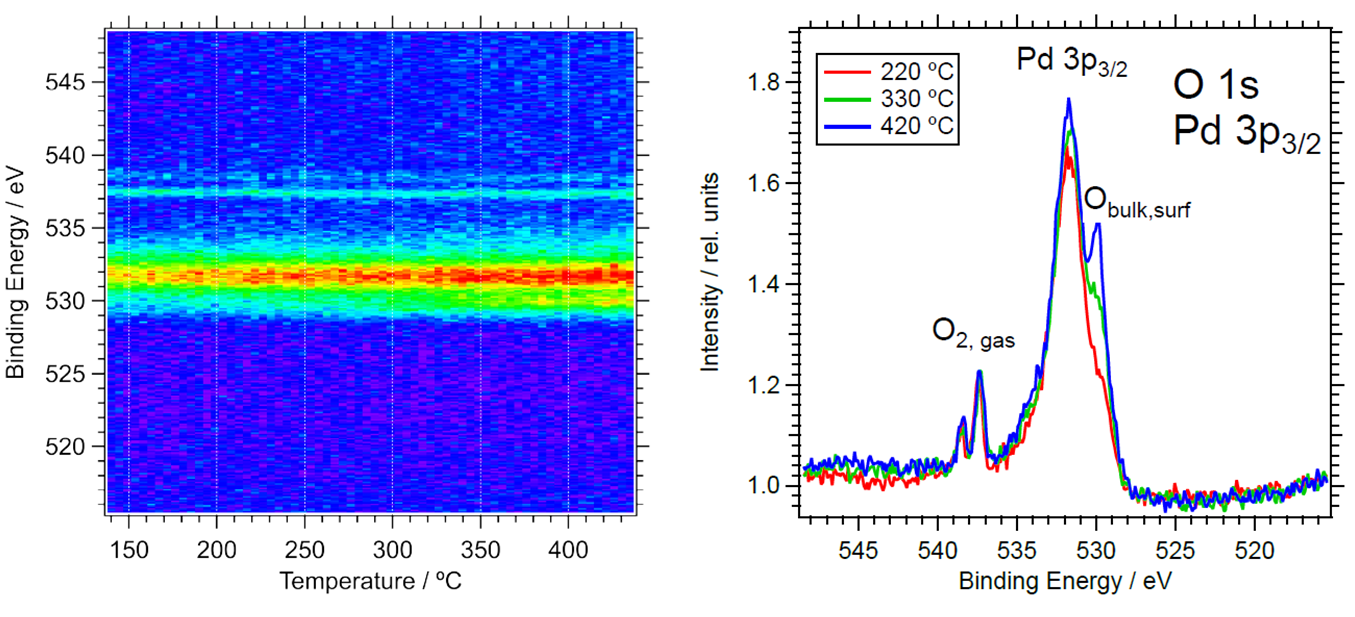

Temperature-programmed XPS spectra during heating of a Pd foil in 1 mbar O2. Pd 3d - 2D plot BE vs temperature and Pd 3d spectra at selected temperatures (above). O 1s / Pd 3d3/2 2D plot BE vs temperature and O 1s / Pd 3p3/2 spectra at selected temperatures (below). Photon energy = 750 eV; exit slit = 0.05 mm; pass energy = 10 eV. Time per single spectrum about 40 s.
Diamond Light Source is the UK's national synchrotron science facility, located at the Harwell Science and Innovation Campus in Oxfordshire.
Copyright © 2022 Diamond Light Source
Diamond Light Source Ltd
Diamond House
Harwell Science & Innovation Campus
Didcot
Oxfordshire
OX11 0DE
Diamond Light Source® and the Diamond logo are registered trademarks of Diamond Light Source Ltd
Registered in England and Wales at Diamond House, Harwell Science and Innovation Campus, Didcot, Oxfordshire, OX11 0DE, United Kingdom. Company number: 4375679. VAT number: 287 461 957. Economic Operators Registration and Identification (EORI) number: GB287461957003.
