Potential users should contact the I06 beamline team to discuss current capabilities.
| Energy range (first harmonic circular) (eV) | 106 - 1300 |
| Energy range (linear horizontal) (eV) | 80 - 2100 |
| Energy range (linear vertical) (eV) | 130 - 1500 |
| Resolving power (Δ E/E) | 10,000 @ 400eV |
| Polarisation |
0º to 90º rotation (linear mode) 99.8% (right and left circular) |
| Spot size at AC-PEEM (H x V FWHM) | ~22 x 16 µm2 |
| Spot size at Branchline |
~120 x 30 µm2 (DD) ~ 220 x 80 µm2 (Superconducting Vector Magnet) |

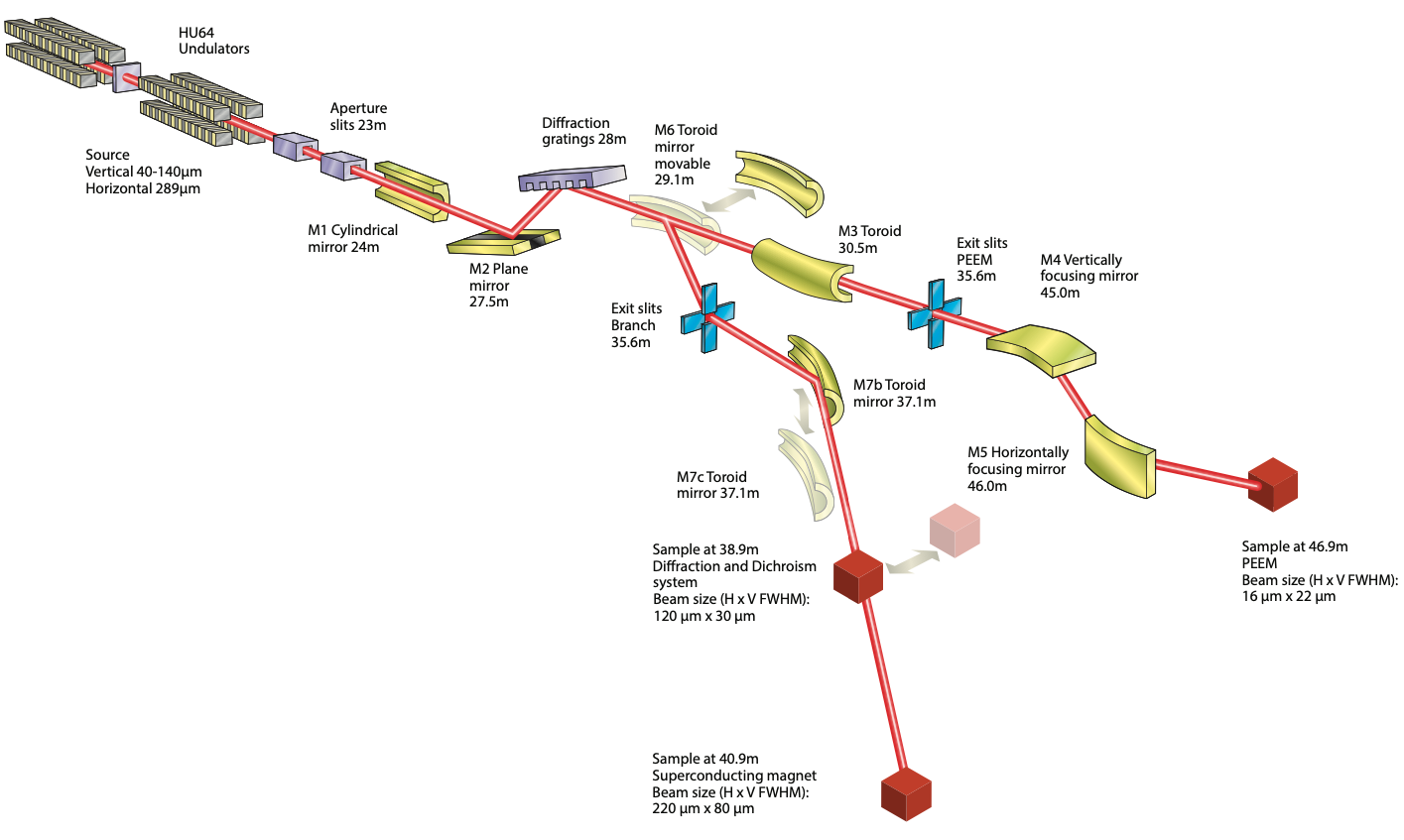

Collimated light plane grating monochromator.
Kirkpatrick Baez bending mirrors for PEEM refocus.
| Insertion device | 2 APPLE II undulators |
| Nominal magnet length (m) | 2 x 2.112 |
| Nominal magnet gap (mm) | 15 |
| Magnet period (mm) | 64 |
| Number of periods | 2 x 33 |
| Nominal magnet gap (mm) | 15 |
| Peak field in horizontal mode (T) | 0.94 |
| Peak field in vertical mode (T) | 0.72 |
| Peak field in circular mode (T) | 0.57 |
| KMAX in horizontal mode | 5.6 |
| KMAX in vertical mode | 4.3 |
| KMAX in circular mode | 3.4 |
