Coherence Branchline:
+44 (0) 1235 778827
Principal Beamline Scientist:
Darrren Batey
Tel: +44 (0) 1235 778128
Email: [email protected]
The I13-1 Coherence beamline generates X-rays in the 6-20 keV range with a coherence length in the experimental hutch of up to 1mm, allowing for a wide range of advanced imaging methods applicable across multiple scientific application areas. Some examples of these applications along with the range of available imaging modalities are described below.
Optics
I13-1 primarily operates in a focussed probe mode, using blazed Fresnel zone plates to condence the beam down to approximatley 200nm. The zone plates are produced from Au on SiN substrates and maunfactured by XRnanotech, with pinholes from Agar Scientific and in-house central stops.
A typical optical setup is shown below:
Motors & Stages

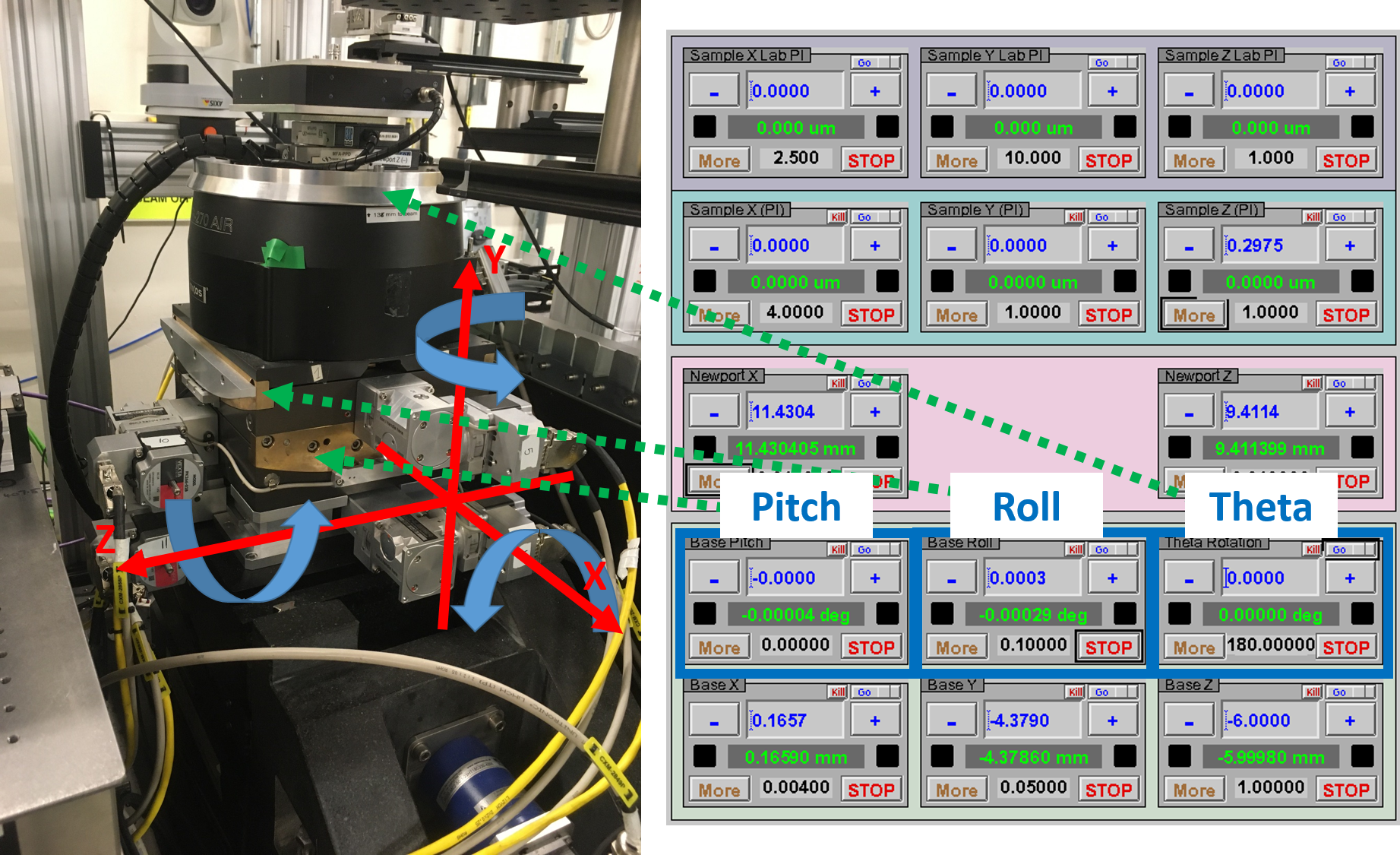

The sample positioning and scanning motors are assembled in a stack, as shown below. The X-ray path follows the Z-axis.

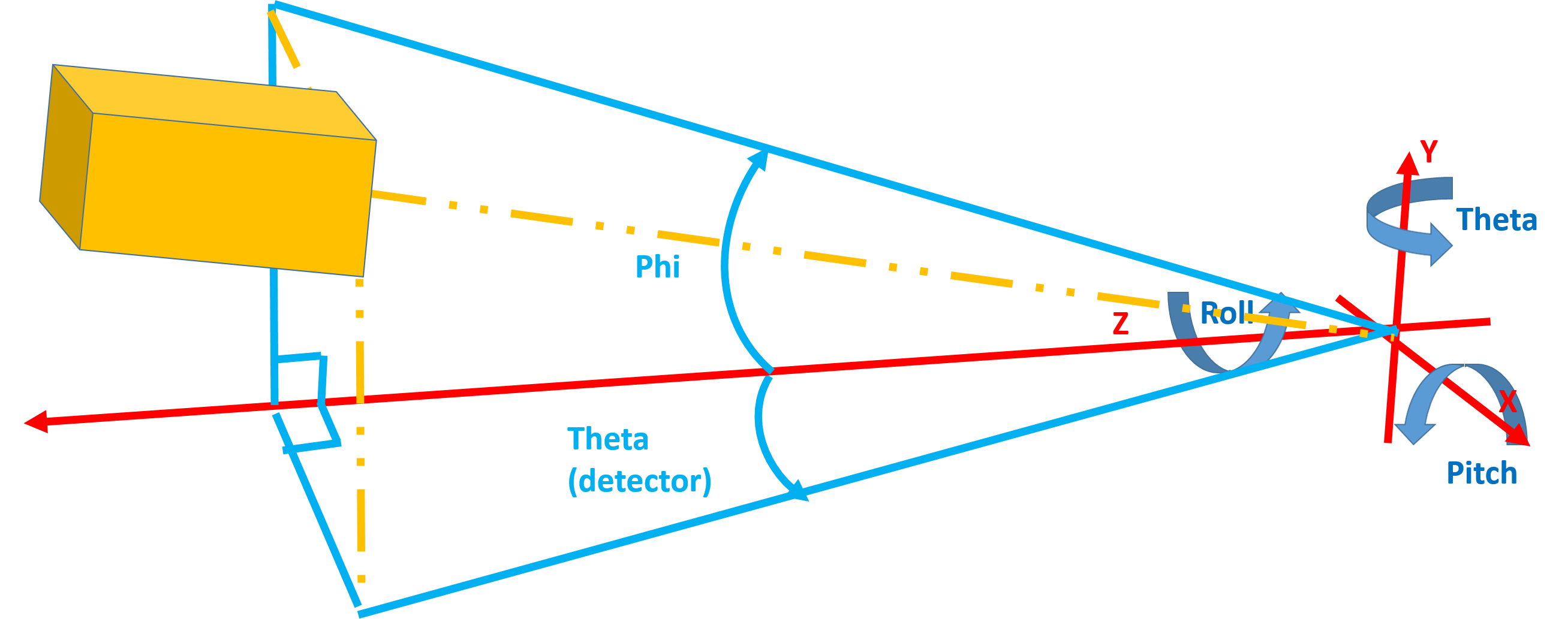

The twin-robot diffractometer operates relative to the sample stack, as shown below, with adjustments in Phi and Theta between 0 and 30 degrees.

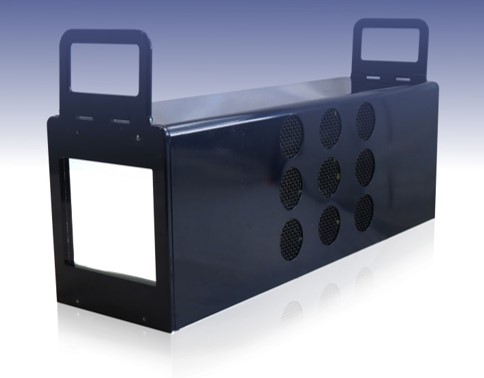

Detectors
Pixel size | 55x55um |
---|---|
Pixel array | 2048 x 1536 |
Maximum rate | 100/1000Hz (continuos/burst) |
Pixel size | 9x9 um |
---|---|
Pixel array | 4008 x 2672 |
Maximum rate | 5 Hz |
The PCO 4000 is a visble light detector and is used in conjunction with a scintillation screen and microscope that has the following configurations:
Magnification |
Effective pixel size (µm) |
Field of view (mm) |
---|---|---|
2.5x
4x
8x 20x |
3.6
2.25
1.125
0.45 |
14 x 9.6
9.0 x 6.0
4.5 x 3.0
1.8 x 1.2 |
