Understanding lubricant oil additives

Case Study

Infineum-logo

Using a continuous-flow liquid-jet and operando XAS as a PAT tool

Lubricant oil additives play a key role in the automotive industry by providing an increased control over tribological conditions in the engine which subsequently have a positive impact on the environment through reduced emissions achieved by improved energy efficiency. Overbased detergents – CaCO3 products are widely used as corrosion prevention additives in combustion engine lubricants. The properties of CaCO3 have been studied extensively but surprisingly, due to many polymorphs available, it is not yet fully understood.

pic1-pouring-oil

The Challenge

The CaCO3 polymorphs formed, and their physicochemical properties, are greatly dependent on the reaction conditions such as temperature, pH, mixing dynamics, reaction time and the composition of the gas phase. Therefore, it is critical to study this material under operando conditions to follow the stages of
lubricant oil additive formation and subsequently tune the conditions to obtain a desired form of CaCO3. However, that’s not an easy task considering the complex experimental set up, multiple phases of the system, and the relatively light elements of CaCO3  to be studied.

Pic2-B18

The Solution

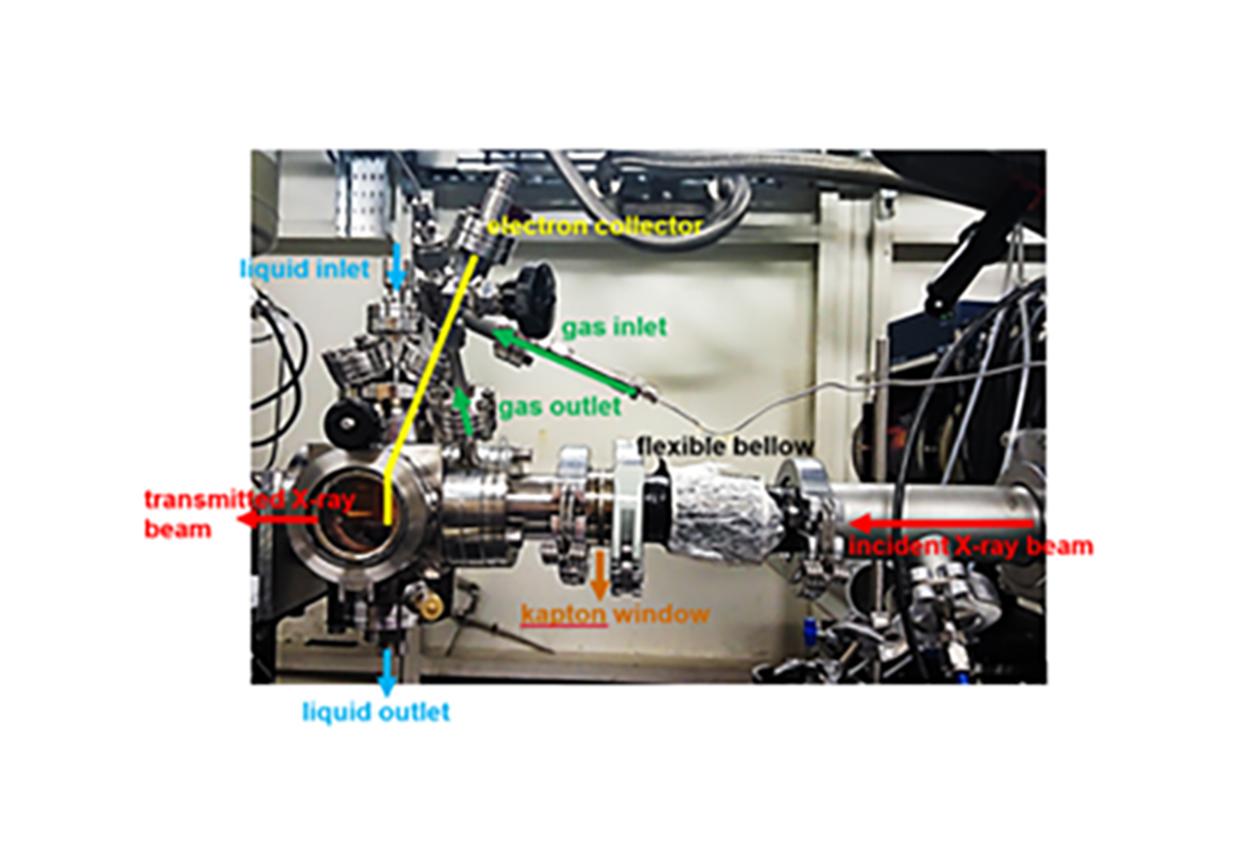

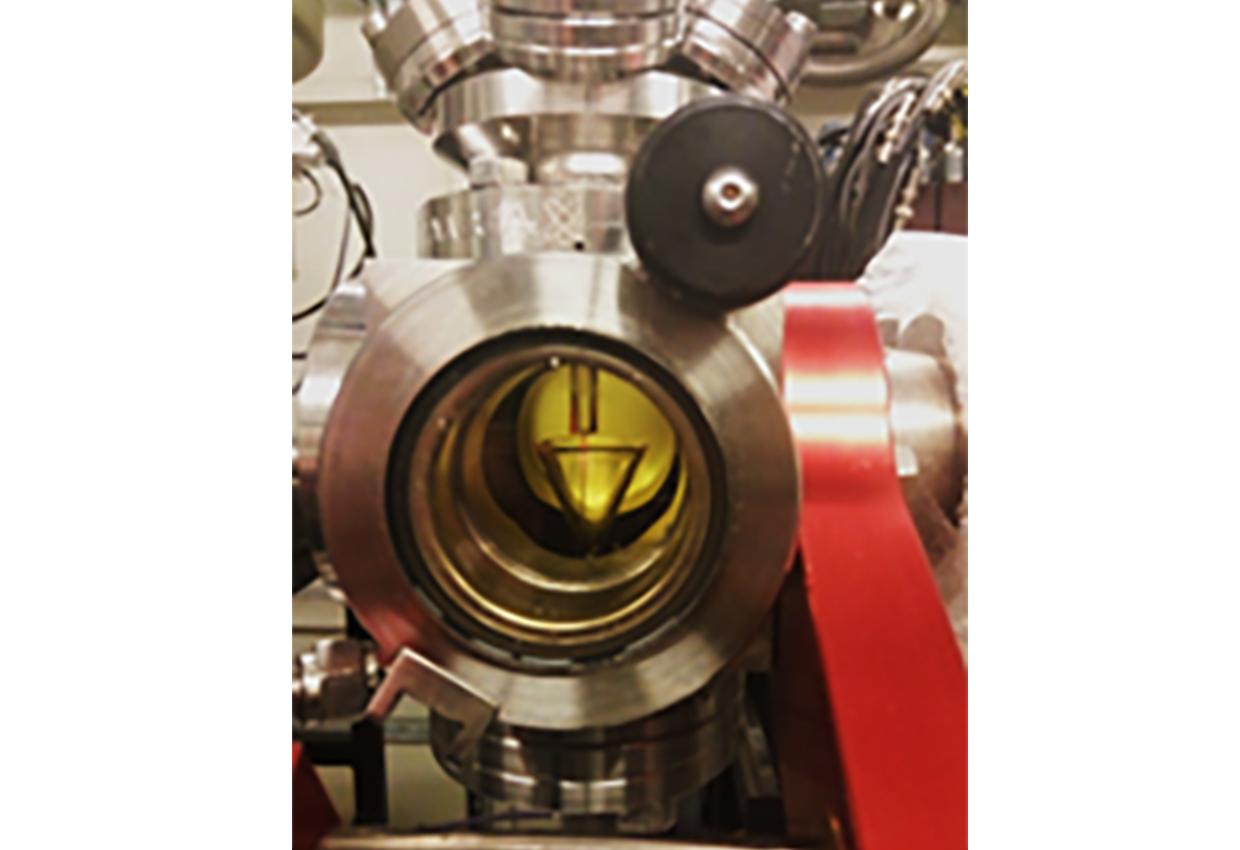

Researchers from the University of Leeds, Infineum and Diamond have developed a liquid-jet environmental cell, dedicated to operando studies of reactions in liquid dispersions and solutions. This versatile setup with continuous flow was first used on B18 to study the early stages of CaCO3 nucleation by Ca K-edge X-ray Absorption Spectroscopy (XAS) under operando conditions. Following this successful application, the team were able to combine the liquid-jet cell and a conventional lab-scale agitated reactor with XAS measurements to use as a process analytical technology (PAT) tool to monitor the synthesis of sulfonate-stabilised CaCO3 particles.

Pic3-setup

The Benefits

This collaborative work has shown that the windowless liquid-jet configuration can accommodate a multiple gas-liquid-solid system and its dynamic processes in liquid dispersions. Solutions were successfully monitored by XAS in the tender X-ray range above 4 keV. The combination of a continuous-flow liquid-jet setup and operando XAS studies applied as a PAT tool allowed for a range of studies. These included the monitoring of chemical changes, the exploration of reagent-product correlations, and the investigation of a scaled-down industrial process to produce sulfonate-stabilised CaCO3 particles.

Understanding the polymorphic forms of crystalline materials, how they form and how different forms can be manipulated is vital across many industries, for ensuring both product performance and quality. Through our ongoing collaborations with the University of Leeds and Diamond Light Source it has enabled Infineum to gain a greater in-depth understanding of our products and the science underpinning them and is a vital element of our innovation and commercial developments.

Prof. Peter Dowding, Infineum
