The energy of the beamline is normally set at 15 keV (λ ~ 0.826 Å) for all experiments
With the standard beamstop in position the lowest accessible 2Θ angle is ~ 3 degrees (d ~ 15 Å at 15 keV).
Equipment or component | Availability | Comments | |
Diffractometer (3 circles) | Available | | |
High resolution mode: Multi-analysing crystals (MAC): x5 MAC-arms with 45 MAC channels.
Typical collection time per powder pattern: 30 - 60 minutes. | MAC1 | Available | Designed 2Θ coverage: 0 - 30° |
MAC2 | Available | Designed 2Θ coverage: 30 - 60° | |
MAC3 | Available | Designed 2Θ coverage: 60 - 90° | |
MAC4 | Available | Designed 2Θ coverage: 90 - 120° | |
MAC5 | Available | Designed 2Θ coverage: 120 - 150° | |
Large sample table (max. load: 500 kg) | Available | | |
Small sample table (max load: 5 kg) | Available | | |
Capillary spinner | Available | | |
Flat-plate spinner | Available | | |
Time-resolved mode: PSD (Mythen2)
Typical collection time per powder pattern: ms - minutes. | Available | Angular coverage: 2Θ=90° |

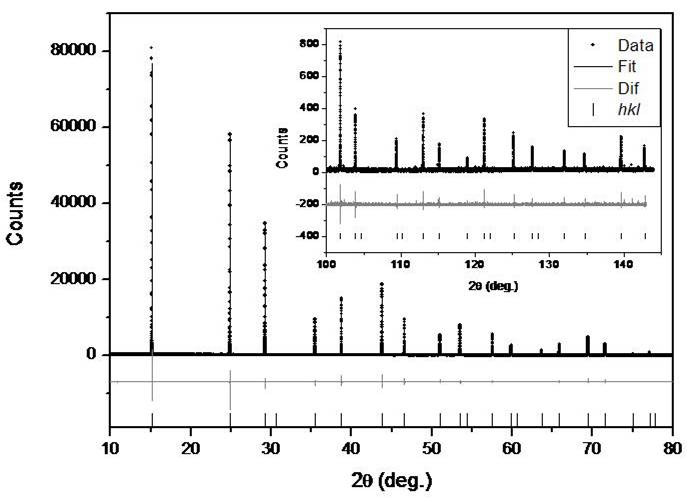

Silicon pattern (SRM 640c): collection time = 30 mins, λ=0.826982 Å

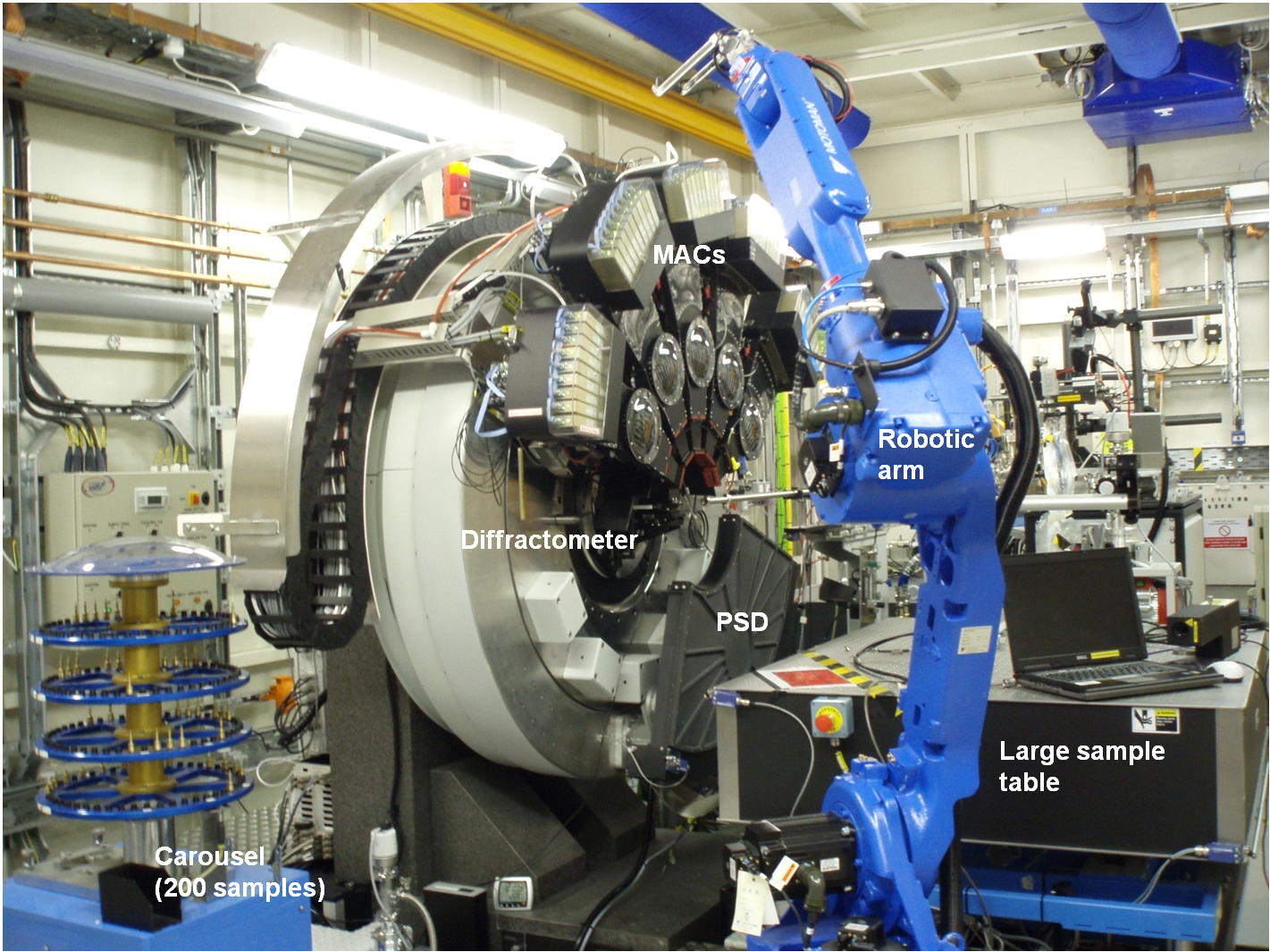

I11 experimental hutch showing the heavy duty diffractometer (DIF), 5 arms for multi-analysing crystal-detectors (MACs), robotic-arm (ROB), carousel with 200 specimen positions (CAR) and heavy duty table (XYZ).
*****Note: under Covid-19 restrictions we are currently unable to offer the more complicated environments and experiments.
Level 3 protcols: Fixed standard energy, standard Debye-Scherrer (capillary) geometry. Cryostream (80 – 500 K) or hotair blower (RT – 1000°C). Applicants should avoid high throughput experiments, equipment changeover and plan for isothermal measurements. Data will be collected by beamline staff via sample mail in
Level 2 protocols: Fixed standard energy, standard Debye-Scherrer (capillary) geometry. Cryostream (80 – 500 K) and hotair blower (RT – 1000°C). Applicants should avoid high throughput experiments and minimise equipment changeover (i.e. hot air blower ⇔ cryostream). Up to two users per user group will be allowed to work on the beamline, staff support will be limited to office hours. Mail in will be possible.
We encourage users to discuss their requirements with the beamline staff
Robotic arm & carousel |
Available |
|
Stages: Large XYZ, Small xyz, Tilt and roll stage | Available | |
Grazing incident stage (GIXPD) | Available | |
Cryostream Plus (80 – 500 K) |
Available |
|
Hotair blower (RT – 1000 °C) |
Available |
|
Capillary furnace |
Available |
|
PheniX cryostat (11 – 295 K)** |
Available |
|
Flat-plate furnace, MRI |
Available |
|
Low Pressure Capillary Gas Cell (mbar – 1.5 bar) |
Available |
|
High Pressure Capillary Gas Cell (mbar – 100 bar) |
Available |
|
Syringe Pump | Available | |
Humidity Chamber | Available | |
Flow Cell and Flow Panel | Available | |
In operando Battery Facility: Coin cells, electrical charger (Arbin, Ivium), Glove Box, Offline Facility (Lab) | Available |
* A new in-house designed furnace has now been commissioned to replace the commerical furnace (decommissioned). Expect ~1 shift for installation and alignment
** Please allow at least four hours to setup.
***Allow one shift of beamtime to allow for set-up and cool-down. Maximum sample turnover one per day.
**** Contact staff for details on gas types permitted
An on-line 532nm Raman spectrometer (for capillary and gas cell) and online mass spectrometer (for gas flow experiments) can be requested but only as part of a proposal, due to the long setup times involved. Use of these needs to be discussed with the beamline staff prior to submission
Basic chemistry lab. | Available | With basic equipment and common solvents | |
Kit for loading capillary and flat-plate samples | Available | Pestle, mortar, tweezers, spatulas, etc. | |
Fume cupboard | Available | | |
De-ionised water | Available | | |
Ultra-sonic baths | Available | | |
Small balances (mg – g) | Available | | |
Fridge & Freezer | Available | | |
Glove Box | Available by prior arrangement | If the use of a glove box is required please contact beamline staff in advance of your experiment with further details so that this may be arranged. |
The operational energy for experiments in EH2 is 25 keV (λ ~ 0.5 Å)
A wide range of sample environments and custom made cells are in use in this hutch. Please contact a member of beamline staff for further information
Equipment or component |
Availability |
Comments |
|
Detector |
Available |
Thales Pixium Area Detector: Active area of 423x423 mm², pixel size = 150 um, speed =ms - minutes |
|
Large sample table |
Available |
|
