Laser tweezers to lead to faster breakthroughs in biological research

A novel process for selecting and examining protein microcrystals


A novel process for selecting and examining protein microcrystals, which can be essential for understanding biological functions, is expected to save precious research days and resources and lead to faster breakthroughs in healthcare. Protein microcrystals enable researchers to analyse the structure of molecules and how they behave, for example in disease, but can take a long time to prepare and analyse. A new process for using laser ‘tweezers’ developed at  the Rutherford Appleton Laboratory will help streamline crystal selection. The results are published in Acta Crystallographica D this week.

The technique allows researchers to select and place microscopic protein crystals on customised sample holders for crystallographic analysis on the world leading Microfocus MX beamline (I24).  This beamline is renowned for its tiny and flexible beamsize, which can be adjusted to match the samples' characteristics for optimised data collection.

The new laser ‘tweezers’ technique is the result of a cross-campus collaboration between Diamond and STFC’s Central Laser Facility (CLF) and Technology departments. In this area of research, crystals of proteins rather than single molecules must be used, but for many proteins, the crystals formed can be so small (less than 10 microns) that they are very difficult to handle and mount onto standard sample holders for analysis. This can lead to some potentially vital crystals being discarded. STFC’s Technology Department helped to overcome this problem by weaving a microfiber web to create a ‘net’ for the crystals to be mounted on. A laser is then used to grab the minute crystals and move them onto the novel sample holders in the process of laser tweezing.

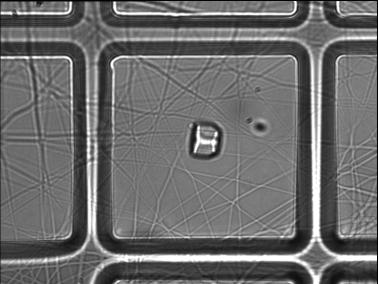

The picture to the right shows a 10 micron crystal placed, using laser light, onto a 50 micron square aperture backed with microfibres ready for freezing and X-ray diffraction studies.

By using lasers to precisely place these crystals in position, scientists are able to know where to focus the X-ray beam to look at the protein microcrystals. Previously, researchers had had to ‘fish’ through the sample to load crystals. During this process it was not possible to select and mount individual crystals; it was more of a random approach and needed a significant amount of time to optimise the conditions during the mounting process. Additionally, more time for screening was needed to make sure that the best crystals, e.g. the largest ones, were successfully transferred to the beamline. The use of laser tweezers to streamline the process means precious research days and resources can be saved.

“Previously we have, in essence, wasted two to three days on the beamline just looking for our best crystals. Now, using the laser tweezers system, we can visually identify and select specific crystals and transfer them to well defined positions on a sample mount rather than relying on a purely random process. Microcrystal work is essential for research in many areas and this collaborative, cross-campus project is addressing problems with crystal supply to allow more efficient research.”

Armin Wagner, Principal Beamline Scientist for I23 and project lead at Diamond, on why this technique is so important.



Andy Ward at the Central Laser Facility said: “This is a great example of how scientists from different facilities at the Rutherford Appleton Laboratory collaborate to address challenging problems. It’s clearly a benefit to have them all on one site here at the Harwell campus”.
