Please note: these are the design specifications. Potential users should contact the I15 beamline team to discuss current capabilities.

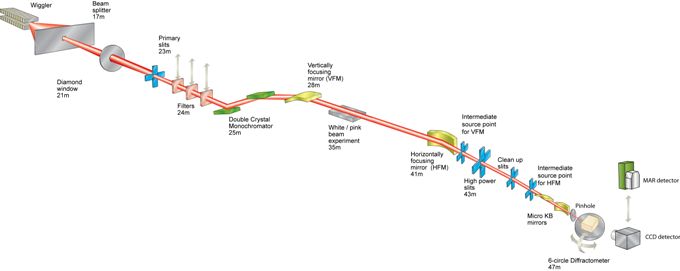

Beamline Design Specifications
| Energy range | 20 - 80 keV (mono beam). Beam size conditions apply for high energies > 30 KeV. Minimum beam size >30 keV is 80-100 microns. |
| Energy resolution (Δ E/E) | 1.0 x 10-3 |
| Photon beamsize at sample | Variable, from a few tens of microns to mm |
| Beam divergence at 50 keV | Variable with focusing elements |
| Flux at sample at 50 keV (ph/s) | 109 |
