Beamlines | I14 - Hard X-ray nanoprobe
Status: In design phase.
Main Research Techniques: Scanning X-ray fluorescence, X-ray spectroscopy
The Hard X-ray nanoprobe beamline is a dedicated facility for micro-nano SAXS and nanoscale microscopy and is scheduled to come into operation in mid-late 2016.
The beamline will serve 2 end-stations. One will be a nanoprobe for which the design priority will be to achieve the smallest possible focus, with a development goal of 10 nm and initial aim of 30 nm. The optical design will be optimised for scanning X-ray fluorescence, X-ray spectroscopy and diffraction. The other station will be optimised to carry out small and wide angle X-ray scattering studies as well as scanning fluorescence mapping with a variable focus beam in the range 5µm – 100 nm.
To maximise the distance from the focusing optic to the sample, the beamline will extend beyond the main building to a distance of approximately 175m.
I14 will provide a state of the art facility in which a focused x-ray spot is positioned or scanned over a specimen. The central theme of the beamline is the ability to obtain structural and chemically-specific information on a full range of materials (inorganic/organic) under both static and real (e.g. wet, heated, in-situ strain) conditions, providing a facility that will be new to the UK.
The HXNP aims to provide:
· Spatial resolution down to 25nm (10 nm may be possible with future optics developments)
· Long working distances
· Wide energy range (5-25 KeV)
· Raster scanning capability for fast acquisition and increased sample area coverage.

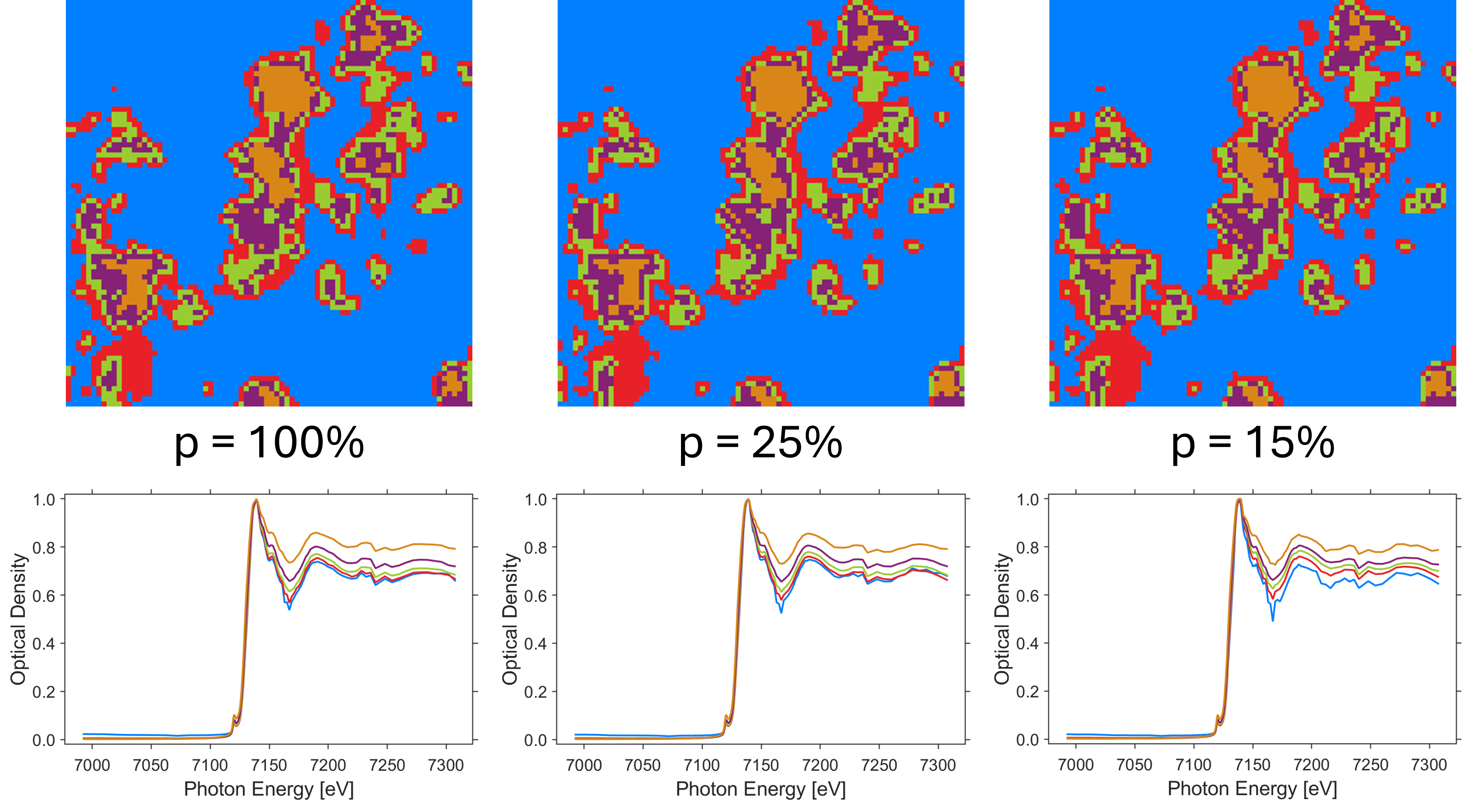

· XANES mapping capability
· Simple data acquisition software with a strong emphasis on fast post acquisition data processing
